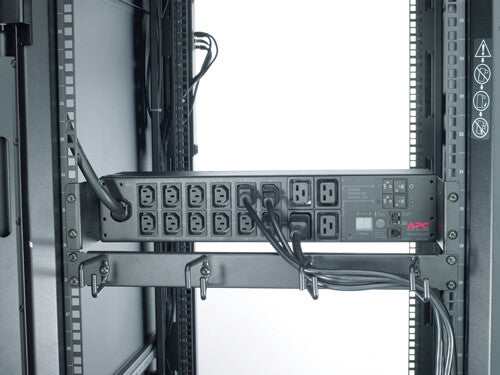

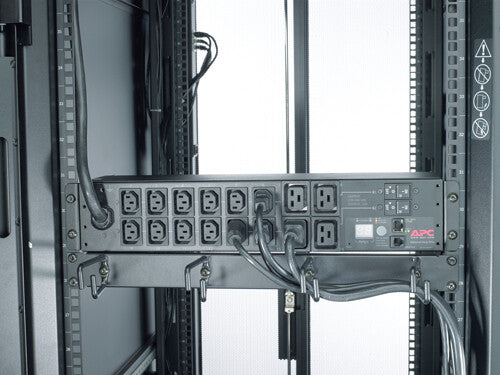

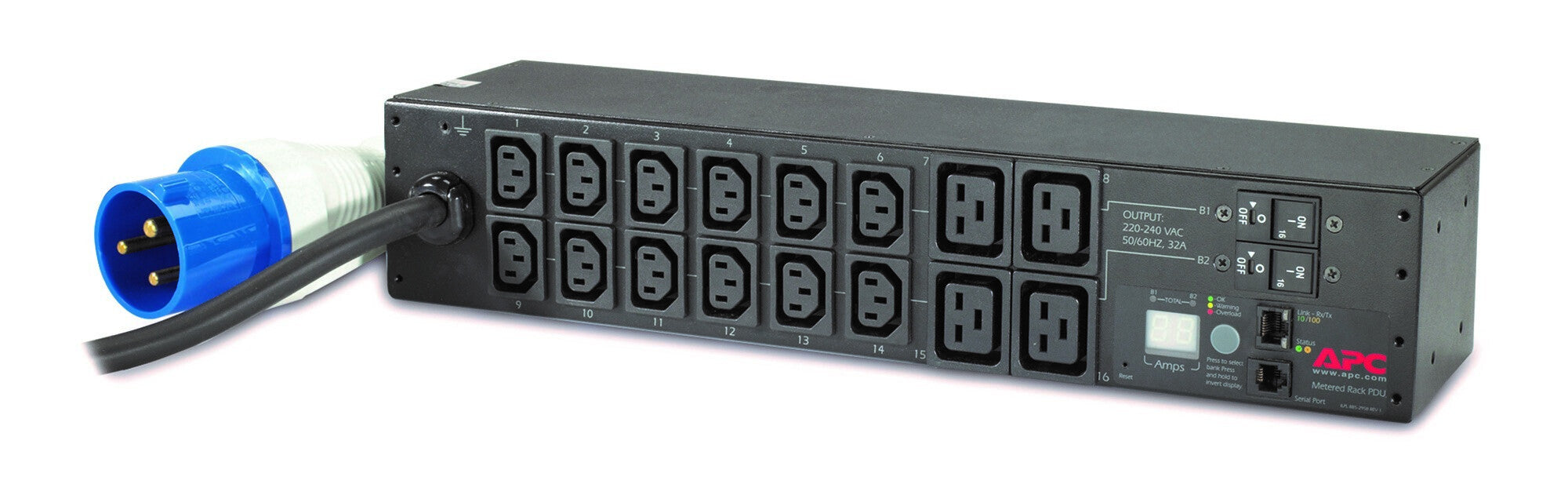

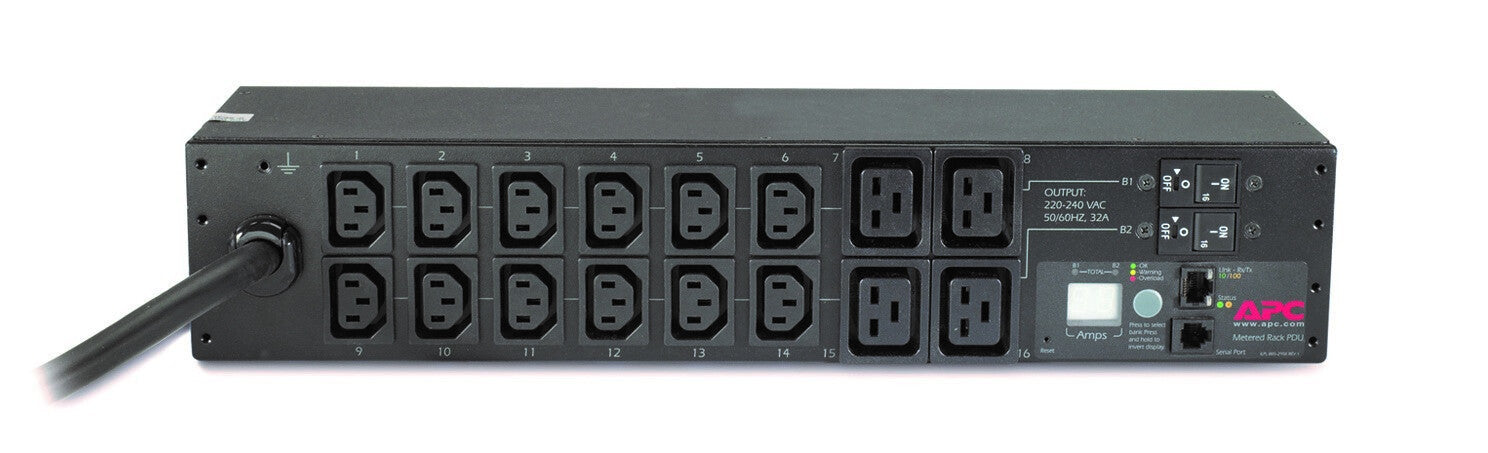

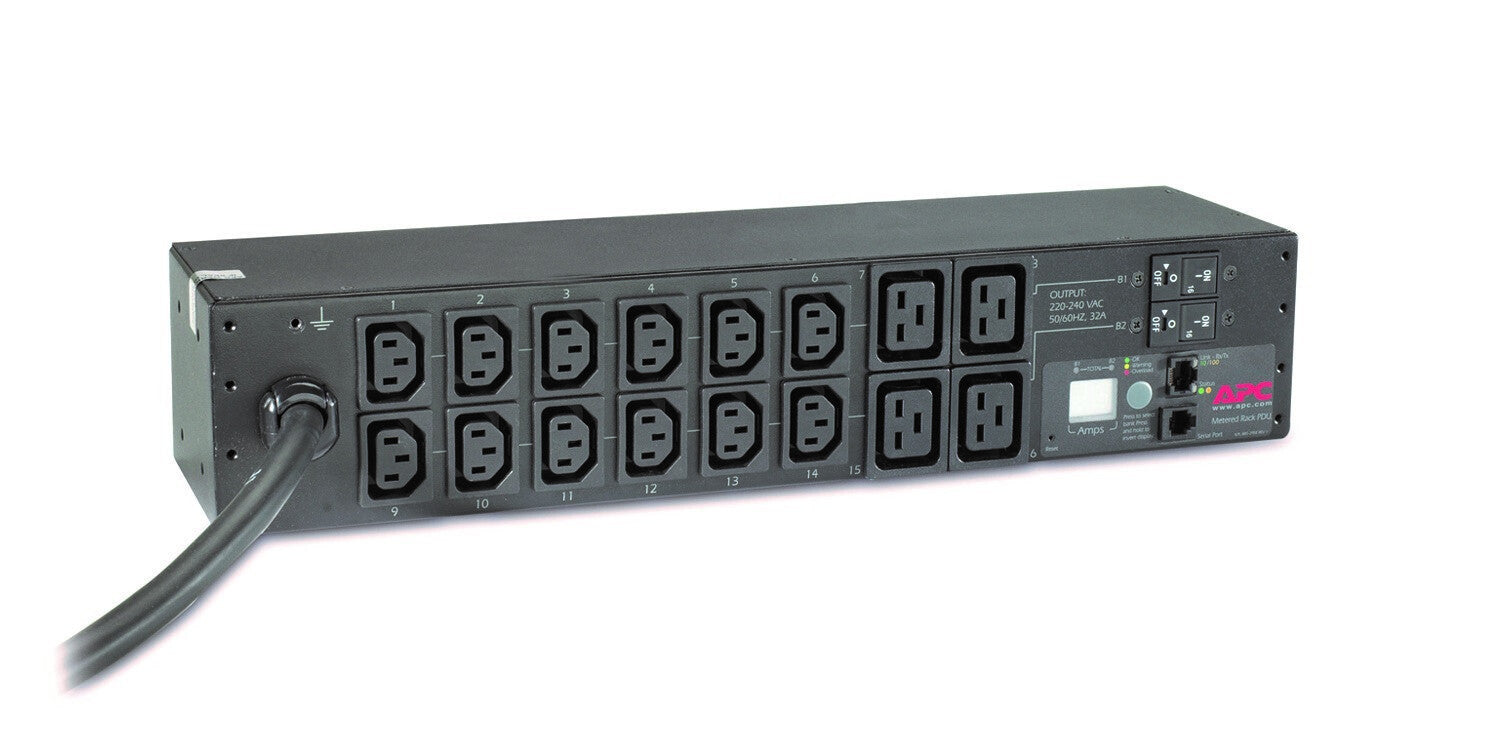

APC AP7822B power distribution unit (PDU) 16 AC outlet(s) 2U Black
Now £1,010.99

We'll only use your email for this alert unless you tick the box. Unsubscribe any time.

We'll watch the price for 6 months and email you if it drops. Unsubscribe in one click.

Overview

  • Single-phase Metered 2U Black
  • 16 AC outlet(s) C13 coupler, C19 coupler
  • 7680 W

APC Metered Rack PDUs offer resilient power distribution and actively measure, display, and log amperage to support real-time monitoring and historical reporting. This PDU remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. The historical reporting enables users to optimize energy use and plan for capacity with confidence. This PDU can operate at up to 60 degrees Celsius and can be accessed, configured, and managed remotely via EcoStruxure IT, Web, SNMP and Command Line Interface. Power is supplied to the PDU at 200-230 volts via IEC 309 plug with a 3.6m (11 ft) cord while power comes out at 230 volts through (36) IEC 320 C13 and (6) IEC 320 C19 outlets. As a Green Premium product, this unit comes with a verified product environment profile, including carbon footprint, scope 3 emissions and end of life instructions.

Specifications

Design

On/off switchYes
Product colourBlack
MountingHorizontal/Vertical
Rack capacity2U
TypeSingle-phase
PDU typesMetered

Ports & interfaces

Output connections12 x C134 x C19
Input connection typeIEC 309 32A 2P+E
AC outlet typesC13 coupler, C19 coupler
Power plugIEC309
AC outlets quantity16 AC outlet(s)
Show all 32 specificationsShow fewer specifications

Features

Cable length3.66 m
LED indicatorsYes

Management features

MonitoringCurrent, Power, Voltage

Power

Power protection featuresOverload
Maximum power7680 W
Maximum total current draw per phase32 A
Maximum input current per phase32 A
Load capacity7680 VA
Maximum current32 A
AC input frequency50 - 60 Hz
Nominal input voltage208-230 V

Certificates

CertificationC-tick, CE, FCC 15 A, GOST, ICES-003, IRAM, MIC, VDE, VCCI
Compliance certificatesRoHS

Operational conditions

Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%
Storage temperature (T-T)-25 - 65 °C
Operating temperature (T-T)-5 - 45 °C

Weight & dimensions

Weight3.36 kg
Height88 mm
Depth112 mm
Width444 mm
