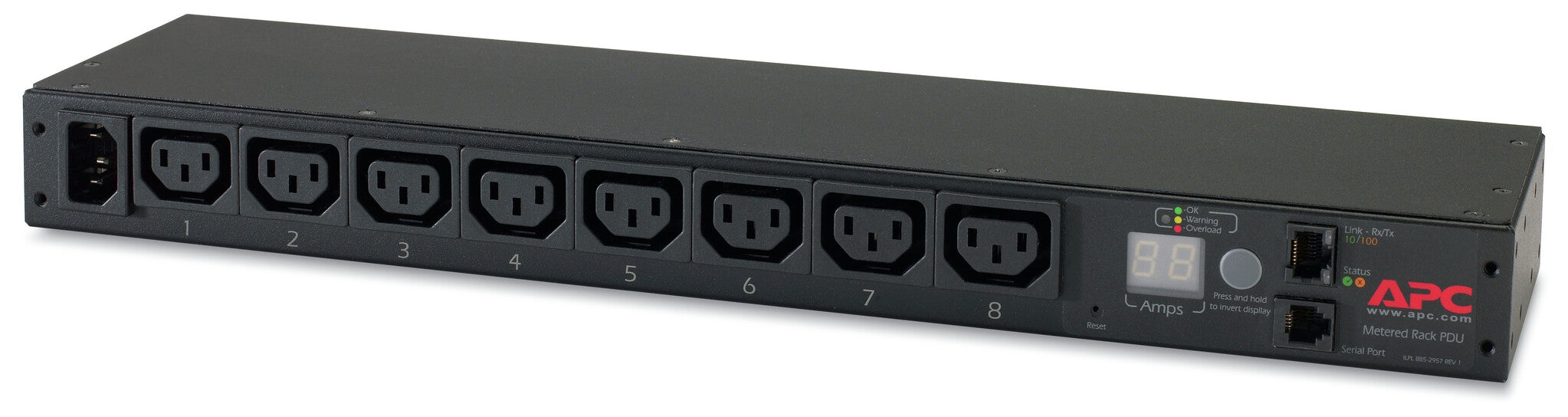

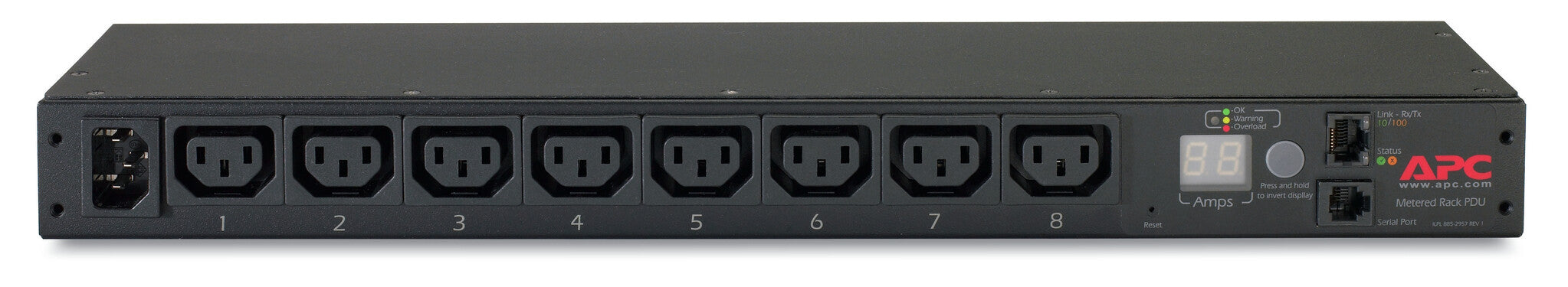

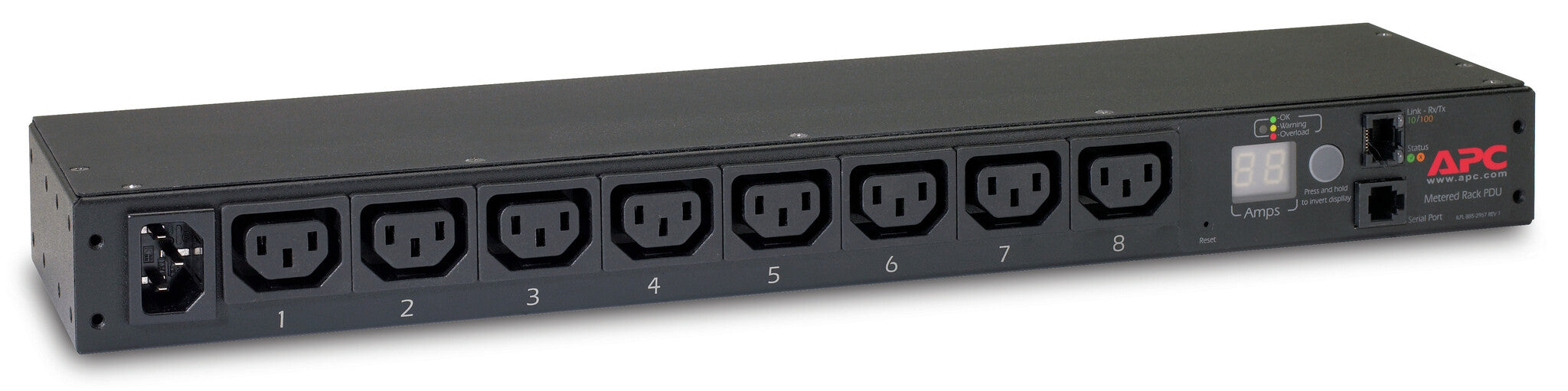

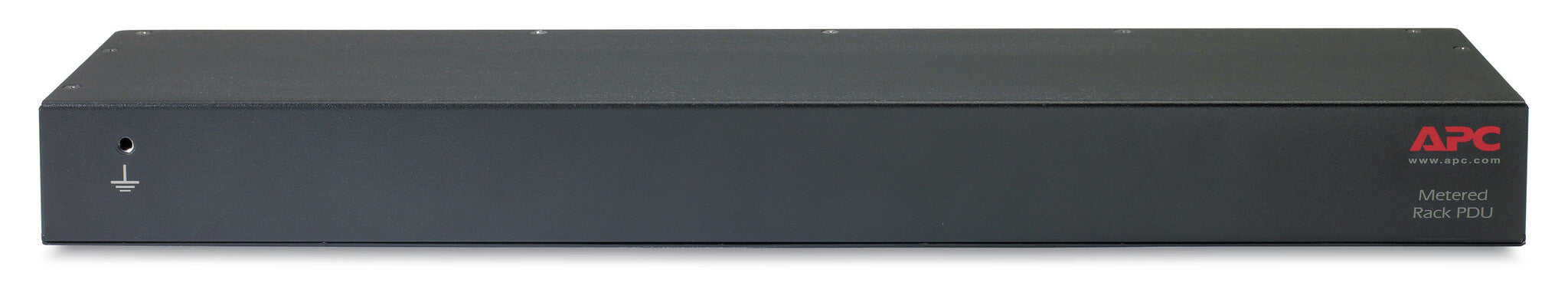

APC AP7820B power distribution unit (PDU) 8 AC outlet(s) 0U/1U Black
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £188.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
In stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Overview
- Metered 0U/1U Black
- 8 AC outlet(s) C13 coupler
- 2300 W
Marketing Features
Local Current Monitoring Display
The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.
Local and web-based monitoring
Status available to customers both in the data center and remotely
Alarm Thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.
Load indicator LED
Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Agility
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Specifications
Design
| Product colour | Black |
|---|---|
| Mounting | Horizontal/Vertical |
| Rack capacity | 0U/1U |
| PDU types | Metered |
Ports & interfaces
| Input connection type | IEC-320 C14 |
|---|---|
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| AC outlets quantity | 8 AC outlet(s) |
Show all 31 specificationsShow fewer specifications
Features
| Cable length | 1.98 m |
|---|---|
| LED indicators | Yes |
Management features
| Monitoring | Current, Power, Voltage |
|---|
Power
| Maximum power | 2300 W |
|---|---|
| Maximum total current draw per phase | 10 A |
| Maximum input current per phase | 15 A |
| Load capacity | 2300 VA |
| Nominal output voltage | 208-230 V |
| Maximum current | 15 A |
| AC input frequency | 50 - 60 Hz |
| Nominal input voltage | 208-230 V |
Certificates
| Certification | cUL, C-tick, CE, CSA, FCC 15 A, GOST, UL 60950, UL, VDE, VCCI |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Non-operating altitude | 0 - 15000 m |
|---|---|
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating temperature (T-T) | -5 - 45 °C |
Weight & dimensions
| Weight | 1.73 kg |
|---|---|
| Height | 44 mm |
| Depth | 102 mm |
| Width | 444 mm |
