Overview

  • Contains 24 Gigabit ports with four 10 Gigabit uplinks, and dual hot-swap power supplies
  • Long-distance stacking of up to 8 units supports distributed environments
  • Autonomous Management Framework™ Plus (AMF Plus) and Wireless Manager provide unified network management for your entire wired and wireless infrastructure

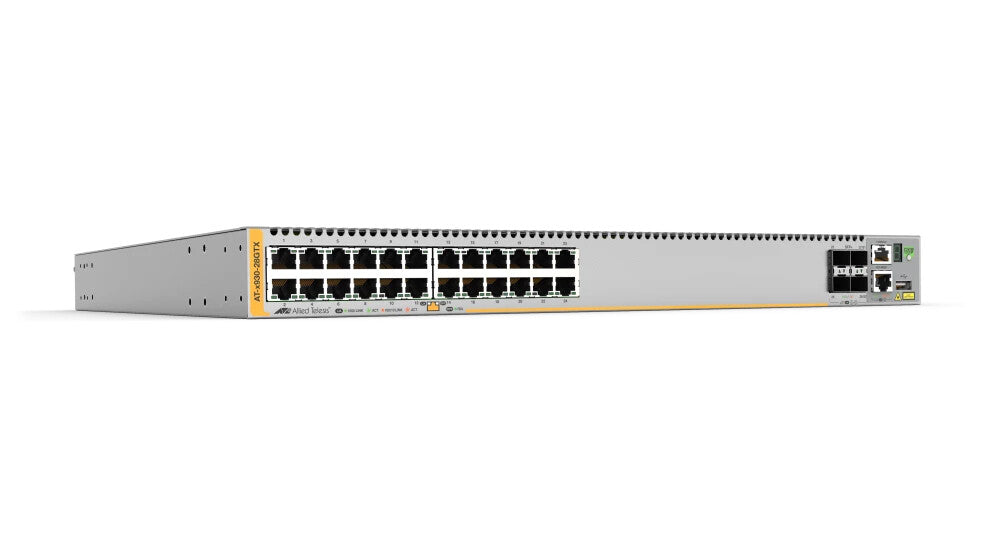

The Allied Telesis x930-28GTX features 24 Gigabit ports with 4 10 Gigabit uplinks, and dual hot-swap power supplies for a fully resilient network core or distribution solution. Long-distance stacking of up to 8 units supports distributed environments, and Allied Telesis Management Framework (AMF) and Wireless Manager provide unified network management for your entire wired and wireless infrastructure.

Specifications

Management features

System event logYes
Traffic classificationYes
ARP inspectionYes
Web-based managementYes
Quality of Service (QoS) supportYes
Switch layerL3
Switch typeManaged

Ports & interfaces

Fiber ports quantity4
SFP+ module slots quantity4
Gigabit Ethernet (copper) ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity24
Show all 53 specificationsShow fewer specifications

Network

Virtual LAN featuresPrivate VLAN
VLAN supportYes
Link aggregationYes
Spanning tree protocolYes
Routing entries2000
Full duplexYes
Port mirroringYes
Copper ethernet cabling technology100BASE-TX, 1000BASE-TX
10G supportYes
Networking standardsIEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Data transmission

Latency (10 Gbps)2.6 µs
Latency (1 Gbps)3.7 µs
Throughput214.3 Mpps
Switching capacity2.88 Gbit/s
MAC address table64000 entries

Security

Security algorithms802.1x RADIUS
IGMP snoopingYes
DHCP featuresDHCP client, DHCP server

Multicast features

Multicast MAC address table2000 entries
Multicast supportYes

Design

Product colourGrey
StackableYes
Rack mountingYes

Performance

Firmware upgradeableYes
Noise level39.7 dB

Power

Power consumption (typical)84 W
AC input frequency47/63 Hz
AC input voltage90 - 260 V
Power supply includedYes
Power sourceAC/DC

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Operational conditions

Heat dissipation285 BTU/h
Operating altitude0 - 3048 m
Storage relative humidity (H-H)5 - 95%
Operating relative humidity (H-H)5 - 90%
Storage temperature (T-T)-25 - 70 °C
Operating temperature (T-T)0 - 50 °C

Weight & dimensions

Weight5.1 kg
Height44 mm
Depth420 mm
Width440 mm
