Allied Telesis x530-52GTXm Managed L3 Gigabit Ethernet (10/100/1000) Grey
£4,051.99
Taxes included in the price
Couldn't load pickup availability
- AlliedWare Plus™ Enterprise-class operating system
- Support high-speed wireless, and network upgrades over legacy cabling, with 2.5G and 5G connectivity
- VCStack up to 8 units locally or over distance to support resilient networking
- Ethernet Protection Switched Ring (EPSRing™) and G.8032 ERPS supports high-speed resilient ring-based networks
- Active Fiber Monitoring secures fiber backbone and stacking links

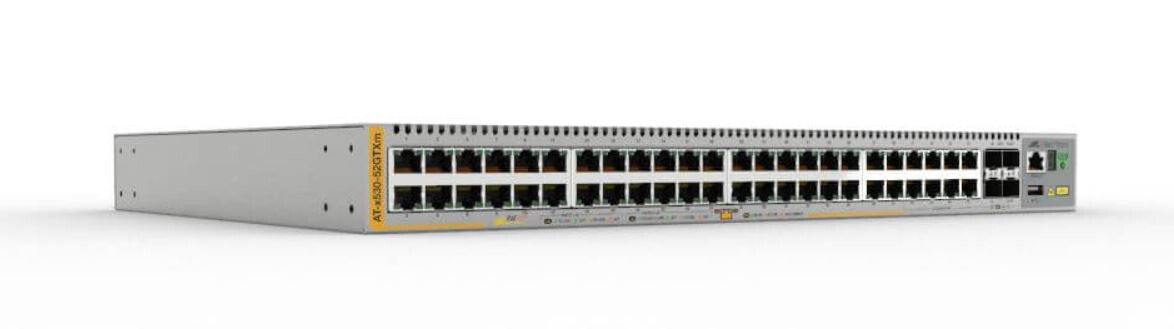

The x530-52GTXm stackable Gigabit layer 3 switch is high-performing and feature-rich, with 40 x 100M/1G ports, 8 x 100M/1G/2.5G/5G ports, and 4 x 10G uplinks.
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Configuring Location Settings (CLI) | Yes |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 40 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 4 |
| Network | |
|---|---|
| 10G support | Yes |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Link aggregation | Yes |
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Data transmission | |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 240 Gbit/s |
| Forwarding rate | 179 Mpps |
| Latency (10-100 Mbps) | 7.42 µs |
| Latency (1 Gbps) | 4.1 µs |
| Latency (10 Gbps) | 1.68 µs |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet buffer memory | 1.5 MB |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Design | |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Grey |
| Performance | |
|---|---|
| Memory type | DDR3-SDRAM |
| Internal memory | 1024 MB |
| Flash memory | 256 MB |
| Power | |
|---|---|
| Power supply included | Yes |
| Power consumption (max) | 85 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Heat dissipation | 290 BTU/h |
| Weight & dimensions | |
|---|---|
| Width | 441 mm |
| Depth | 323 mm |
| Height | 44 mm |
| Weight | 5.3 kg |
| Packaging data | |
|---|---|
| Package width | 563 mm |
| Package depth | 534 mm |
| Package height | 128 mm |
| Package weight | 7.3 kg |
