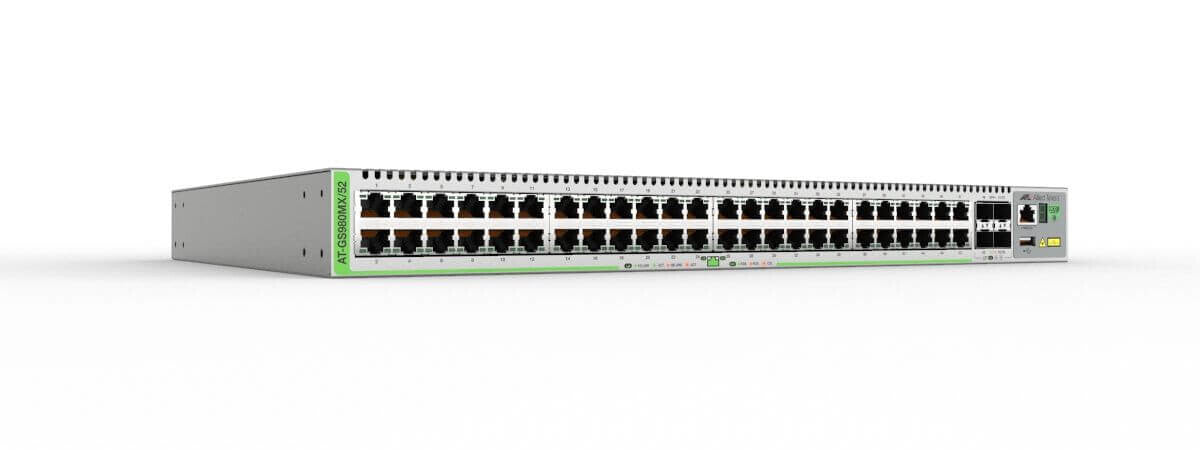

Allied Telesis GS980MX Managed L3 Gigabit Ethernet (10/100/1000) 1U Grey
£1,654.99
Taxes included in the price
Couldn't load pickup availability
- AlliedWare Plus™ Enterprise-class operating system
- Multi-Gigabit ports with PoE+/PoE++ for flexible endpoint connectivity
- Continuous PoE maximizes endpoint connectivity
- Active Fiber Monitoring™ (AFM) for secure fiber networks
- EPSRing™ for fast-failover resilient ring networks
The GS980MX Series of stackable Layer 3 Lite switches feature high capacity, resiliency, and easy management. With Multi-Gigabit ports and Power over Ethernet, and available in both compact and high port density models, they provide an ideal choice for high-speed connectivity at the network edge.
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Traffic shaping | Yes |
| Traffic classification | Yes |
| Configuring Location Settings (CLI) | Yes |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP+ modules quantity | 4 |
| Network | |
|---|---|
| Networking standards | IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Port mirroring | Yes |
| Policy-based routing | Yes |
| IP routing | Yes |
| Full duplex | Yes |
| Spanning tree protocol | Yes |
| Broadcast storm control | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN, Private VLAN, Voice VLAN |
| Number of VLANs | 4094 |
| Data transmission | |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 176 Gbit/s |
| Forwarding rate | 130.9 Mpps |
| Latency (10-100 Mbps) | 8.29 µs |
| Latency (1 Gbps) | 7.63 µs |
| Latency (10 Gbps) | 1.63 µs |
| Jumbo frames support | Yes |
| Security | |
|---|---|
| DHCP features | DHCP client, DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| BPDU filtering/protection | Yes |
| Authentication | MAC-based authentication |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| MAC address filtering | Yes |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Protocols | |
|---|---|
| Management protocols | SNMP |
| Design | |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Grey |
| Performance | |
|---|---|
| Memory type | DDR3-SDRAM |
| Internal memory | 16384 MB |
| Flash memory | 256 MB |
| Noise level | 42 dB |
| Power | |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| Power consumption (max) | 60 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 4000 m |
| Heat dissipation | 205 BTU/h |
| Weight & dimensions | |
|---|---|
| Width | 441 mm |
| Depth | 323 mm |
| Height | 44 mm |
| Weight | 4.8 kg |
| Packaging content | |
|---|---|
| Cables included | AC |
| Packaging data | |
|---|---|
| Package width | 563 mm |
| Package depth | 534 mm |
| Package height | 128 mm |
| Package weight | 6.8 kg |
