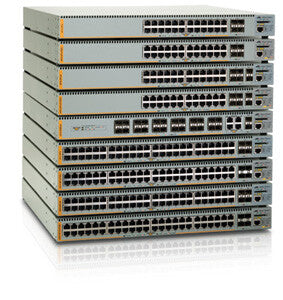

Allied Telesis AT-X610-48TS-60 network switch Managed L3 Gigabit Ethernet (10/100/1000) Grey
£2,863.99
Taxes included in the price
Couldn't load pickup availability
- Managed L3 Web-based management SNMPv1, v2c, v3
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 48
- MAC address table: 32000 entries
- Access Control List (ACL)
- Rack mounting Stackable
The Allied Telesis x610 Series is the high performing and scalable solution for today’s networks, providing an extensive range of
port-density and uplink-connectivity options.
With a choice of 24-port and 48-port versions and optional 10 Gigabit uplinks, plus the ability to stack up to eight units, the x610 Series can connect anything from a small workgroup to a large business.
High Performing
The x610 Series features fully nonblocking switching on all ports, so IPv4 and IPv6 Layer 2 switching and Layer 3 routing occur at wirespeed with low latency. This is ideal for high-end server deployments, and, when combined with a large L3 route table, for aggregating gigabit connections.
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| MIB support | Y |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 4 |
| Power connector | DC-in jack |
| Network | |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3at |
| Port mirroring | Yes |
| Full duplex | Yes |
| Spanning tree protocol | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| VLAN support | Yes |
| Data transmission | |
|---|---|
| MAC address table | 32000 entries |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Security | |
|---|---|
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Security algorithms | SSH, SSL/TLS |
| SSH/SSL support | Yes |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Protocols | |
|---|---|
| Management protocols | SNMPv1, v2c, v3 |
| Switching protocols | IGMPv3, IPv6, MLDv2 |
| Design | |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Grey |
| LED indicators | Yes |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Weight & dimensions | |
|---|---|
| Width | 440 mm |
| Depth | 420 mm |
| Height | 44 mm |
| Packaging content | |
|---|---|
| Manual | Yes |
| Certificates | |
|---|---|
| Certification | UL60950-1, CAN/CSA-C22.2, No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS, 60950.1 |
