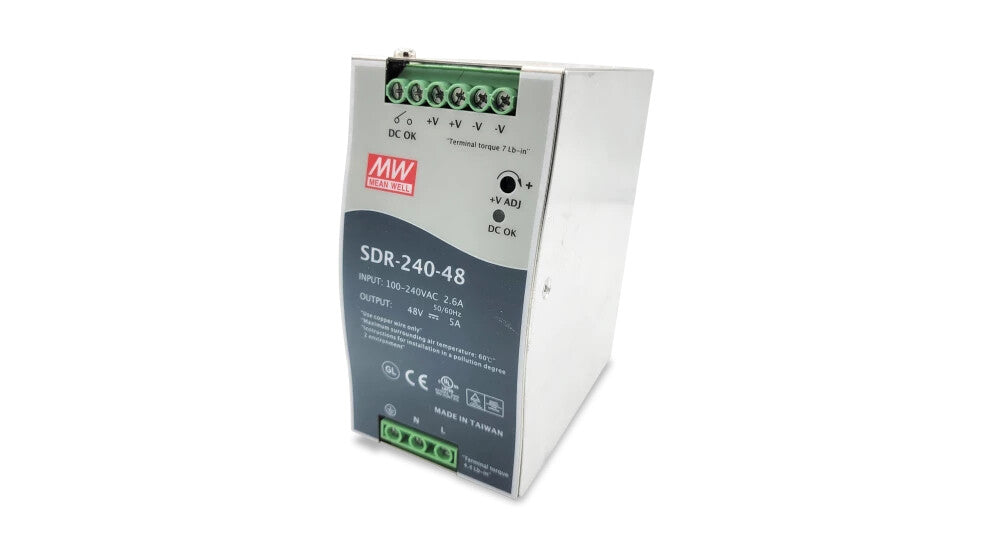

Allied Telesis AT-SDR240-48 voltage transformer 48 V

Allied Telesis AT-SDR240-48 voltage transformer 48 V

Allied Telesis
£182.99
Stock Available: 0
  • 150% peak Load Efficiency
  • Stable output power with 150% peak current capability
  • Wide input voltage range
  • Protections: peak-current, over-curren and over-temperature
  • Extended operating temperature range
  • Metal case
  • DIN rail mount TS-35/7.5 or 15

The SDR Series are power supplies delivering reliable 120-480W output power. Housed in compact metal case with DINrail clip, it takes special account of the mechanical robustness, electromagnetic compatibility and thermal characteristics to exhibit the required strengths to work satisfactorily in harsh environment where it will be exposed. Its highly efficient and stable output power has the capability to support 150% of peak load. The AC/DC rectifier operates over the full range of AC input voltage to fit worldwide power grids. The included active Power Factor Correction circuit (PFC) reduces energy costs by eliminating reactive power and harmonics from power lines. Besides the increment of efficiency, PFC is to comply with international regulations, which established limits on harmonic currents that can appear on the AC main line.

Technical details
Country of origin Taiwan
Product colour Multicolour
Material Metal
Output power 240 W
Peak power 360 W
Efficiency 94%
Mounting type DIN rail
Power protection features Over voltage, Overheating, Overload
Housing material Metal
International Protection (IP) code IP20
Output voltage 48 V
DC voltage range 124 - 370 V
AC voltage range 48 - 55 V
AC input frequency 47 - 63 Hz
AC input voltage 88 - 264 V
Operational conditions
Storage relative humidity (H-H) 10 - 95%
Storage temperature (T-T) -40 - 85 °C
Operating relative humidity (H-H) 20 - 95%
Operating temperature (T-T) -25 - 70 °C
Weight & dimensions
Height 125.2 mm
Depth 113.5 mm
Width 63 mm
Logistics data
Quantity per pack 1 pc(s)
