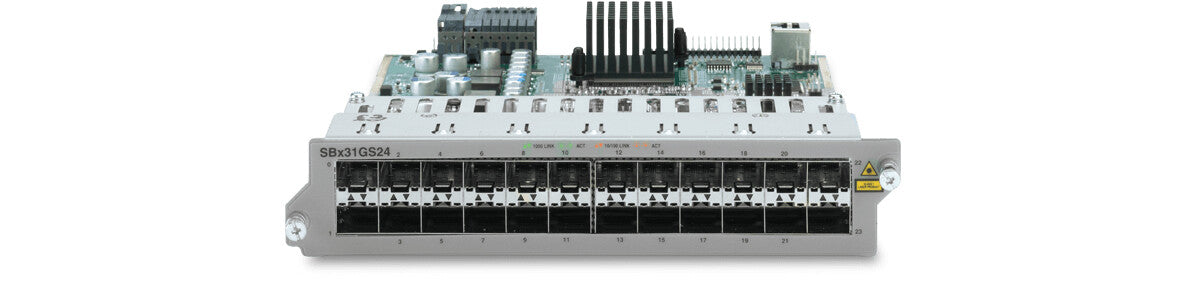

Allied Telesis AT-SBX31GS24 network switch module
£2,165.99
inc. VATSpread the cost with Klarna, PayPal, Float or SnapFrom 3 interest-free payments of £721.99 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- 10,100,1000 Mbit/s Full duplex
- SFP
- Access Control List (ACL)
- Quality of Service (QoS) support
- 34.4 W
The Allied Telesis SwitchBlade®x3112 is a 12-slot access edge chassis switch, primarily targeted for service provider fiber access networks, and equally at home at the enterprise network edge and the data center. The switch was designed to deliver high availability, maximum performance with wirespeed non-blocking backplane functionality and high port count.
Specifications
Network
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
|---|---|
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto MDIX IEEE | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.2, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Jumbo frames support | Yes |
| Link aggregation | Yes |
Optical fiber
| Fiber optic connector | SFP |
|---|---|
| Fiber ethernet cabling technology | 100BASE-BX, 100BASE-FX, 1000BASE‑LX, 1000BASE‑SX |
Show all 26 specificationsShow fewer specifications
Data transmission
| MAC address table | 32000 entries |
|---|---|
| Number of VLANs | 4000 |
Ports & interfaces
| SFP module slots quantity | 24 |
|---|
Performance
| Quality of Service (QoS) support | Yes |
|---|---|
| Access Control List (ACL) | Yes |
| Security algorithms | 802.1x RADIUS, SSH-2 |
| Compatibility | Allied Telesis SwitchBlade x3112 |
Power
| Power consumption (typical) | 34.4 W |
|---|
Operational conditions
| Storage relative humidity (H-H) | 5 - 95% |
|---|---|
| Operating relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
Certificates
| Safety | EN60950-1 (TUV), UL60950-1 (CULUS), EN60825 |
|---|---|
| Certification | FCC Class A, EN55022 Class A, CISPR Class A, ICES 003 Class A |
Weight & dimensions
| Dimensions (WxDxH) | 206.7 x 313.2 x 40.6 mm |
|---|---|
| Weight | 1.06 kg |
