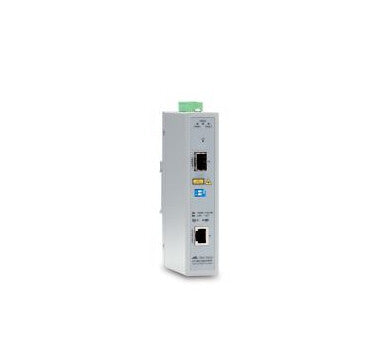

Allied Telesis AT-IMC1000T/SFP-80 network media converter 1000 Mbit/s 1310 nm Grey
Couldn't load pickup availability
- Wired
- 1000 Mbit/s 1310 nm
- Ethernet LAN (RJ-45) ports: 1
- Fiber ports quantity: 1 SFP
- IP30 DIN rail mounting
- Grey
Extended Networks
The Allied Telesis Industrial Media Converter (IMC) Series is designed to extend the distance of a network by converting data between twisted pair cabling and multi-mode or singlemode fiber-optic cabling. The IMC100 features a 100FX fixed SC fiber port, while the IMC1000 features an SFP port for maximum flexibility.
VLAN Support
Many new backbone switch products now support the industry-standard IEEE 802.1Q specification for Virtual LANs (VLANs) that send extra-long data packets on the network. IMC Series switches are fully compatible with these long packets, enabling them to be used in modern networks. Switches not supporting this feature will discard these extra-long packets, making them unsuitable for modern networks.
Small and Flexible
The small size and dual external power supply inputs of the IMC Series allows them to be used almost anywhere in harsh environmental conditions. Additionally, they can be mounted both on DIN rail (EN50022) or by wall-mount, allowing users to deploy any mix of network conversions required.
| Network | |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Converter input interface | 10Base-T, 1000Base-T |
| Converter output interface | 100Base-X, 1000Base-X |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Jumbo frames support | Yes |
| VLAN support | Yes |
| Stacked VLAN | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Store-and-forward | Yes |
| Duplex system | Full, Half |
| Performance | |
|---|---|
| Wavelength | 1310 nm |
| Features | |
|---|---|
| DIN rail mounting | Yes |
| International Protection (IP) code | IP30 |
| Housing material | Metal |
| Product colour | Grey |
| LED indicators | Activity, Collision, FDX, Link, Power, Power fail |
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
| Power | |
|---|---|
| Power consumption (typical) | 5.28 W |
| Weight & dimensions | |
|---|---|
| Width | 30 mm |
| Depth | 95 mm |
| Height | 140 mm |
| Weight | 700 g |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 2000 m |
| Certificates | |
|---|---|
| Compliance certificates | RoHS |
