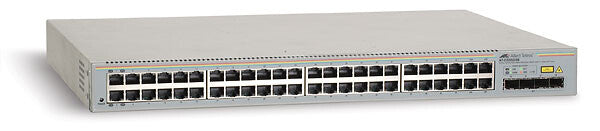

Allied Telesis AT-GS950/48 Managed
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £241.66 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Managed
- Basic switching RJ-45 Ethernet ports quantity: 48
- MAC address table: 8000 entries
The WebSmart AT-GS950/48 features 48 10/100/1000T ports + 4 gig SFP uplink ports. It is an ideal fit for the SMB/SOHO market. This switch provides managed features ideal for simple QoS applications, and provides basic monitoring tools to improve your network. The Web Smart functions provide QoS features suitable for multimedia applications. With the web-based interface, you can set up 802.1Q VLANs to segregate traffic, QoS to prioritize mission-critical data such as voice or video packets, and link aggregation to create traffic pipelines. The AT-GS950/48 also provides network monitoring tools such as port mirroring and basic port statistics. Remote product management enables simple monitoring from anywhere.
Specifications
Management features
| Switch type | Managed |
|---|
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 48 |
|---|---|
| Combo SFP ports quantity | 4 |
| SFP/SFP+ slots quantity | 4 |
Show all 34 specificationsShow fewer specifications
Network
| Networking standards | IEEE 802.1d, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
|---|---|
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
Data transmission
| MAC address table | 8000 entries |
|---|---|
| Supported data transfer rates | 10/100/1000 Mbps |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
| Packet buffer memory | 0.5 MB |
Security
| DHCP features | DHCP client |
|---|---|
| Static port security | Yes |
| MAC address filtering | Yes |
Multicast features
| Multicast support | Yes |
|---|
Design
| Stackable | No |
|---|
Performance
| Internal memory | 32 MB |
|---|---|
| Flash memory | 4 MB |
| Mean time between failures (MTBF) | 263000 h |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
|---|
Other features
| Dimensions (WxDxH) | 444 x 322 x 43.5 mm |
|---|---|
| Connectivity technology | Wired |
| Security features | 802.1X |
| Power requirements | 100-240V AC, 50/60Hz |
| Packet transfer speed | 1488000 pps |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Weight | 4.05 kg |
|---|
Certificates
| Certification | UL 1950FCC/EN55022 Class AVCCI Class AC-TickEN60950 (TUV)EN55024CECSA / CUL |
|---|
