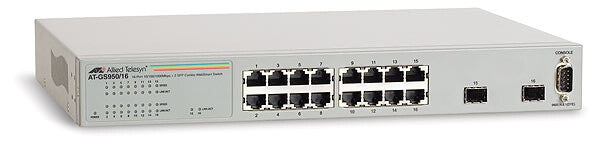

Allied Telesis AT-GS950/16 Managed
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £106.99 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Managed Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 16
- MAC address table: 8000 entries
The WebSmart AT-GS950/16 features a Web-based interface that allows you to set up 802.1Q VLANs to segregate traffic, QoS to prioritize mission-critical data such as voice or video packets, and link aggregation to create traffic pipelines. The AT-GS950/16 also provides network monitoring tools such as port mirroring and basic port statistics. Remote product management enables simple monitoring from anywhere you have connectivity. This WebSmart switch provides managed features for simple QoS applications, 16 10/100/1000T ports and two combo SFP ports for Gigabit connections.
Specifications
Management features
| Switch type | Managed |
|---|---|
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 16 |
|---|---|
| Combo SFP ports quantity | 2 |
| SFP/SFP+ slots quantity | 2 |
Show all 28 specificationsShow fewer specifications
Network
| Networking standards | IEEE 802.1D, IEEE 802.1s, IEEE 802.1W, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
|---|---|
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
Data transmission
| MAC address table | 8000 entries |
|---|---|
| Supported data transfer rates | 10/100/1000 Mbps |
| Maximum data transfer rate | 1 Gbit/s |
| Packet buffer memory | 0.5 MB |
Design
| Stackable | No |
|---|
Performance
| Internal memory | 8 MB |
|---|---|
| Flash memory | 2 MB |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
|---|
Other features
| Dimensions (WxDxH) | 352 x 256 x 43.2 mm |
|---|---|
| Networking features | Gigabit Ethernet |
| Power requirements | 100-240V AC, 50/60Hz |
| Packet transfer speed | 1488000 pps |
| Non-operating relative humidity (non-condensing) | 5 - 95% |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Weight | 2.38 kg |
|---|
Certificates
| Certification | UL 1950FCC/EN55022 Class AVCCI Class AC-TickEN60950 (TUV)EN55024CE |
|---|
