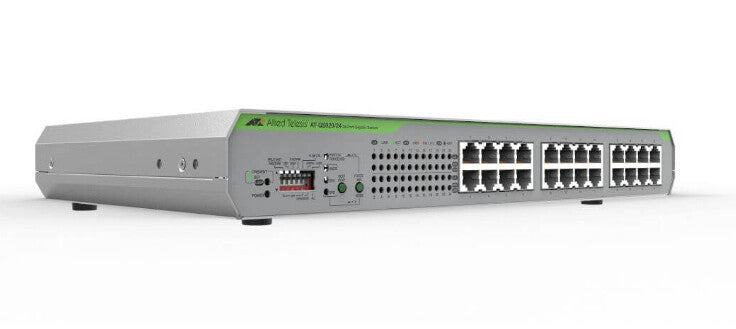

Allied Telesis AT-GS920/24-50 Unmanaged Gigabit Ethernet (10/100/1000) Grey
£354.99
inc. VATSpread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £118.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity: 24
- 10BASE-T, 100BASE-T, 1000BASE-TX
- MAC address table: 8000 entries Switching capacity: 48 Gbit/s
- Power supply included
Gigabit Ethernet DIP Switch
The Allied Telesis GS920/24 is a 24-port 10/100/1000T unmanaged DIP switch with internal PSU, offering secure, unmanaged Gigabit switching for the desktop and small networks.
Specifications
Management features
| Switch type | Unmanaged |
|---|
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 24 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Show all 31 specificationsShow fewer specifications
Network
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
|---|---|
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-TX |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
Data transmission
| MAC address table | 8000 entries |
|---|---|
| Switching capacity | 48 Gbit/s |
| Jumbo frames support | Yes |
Design
| Rack mounting | No |
|---|---|
| Product colour | Grey |
| LED indicators | Yes |
| Safety | UL60950-1, CSA C22.2 No.60950-1-07, IEC60950-1 |
Performance
| Buffer size | 524 KB |
|---|
Power
| Power supply included | Yes |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 0.2 A |
| Power consumption (max) | 18 W |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 2000 m |
Weight & dimensions
| Width | 341 mm |
|---|---|
| Depth | 210 mm |
| Height | 44 mm |
| Weight | 2.1 kg |
