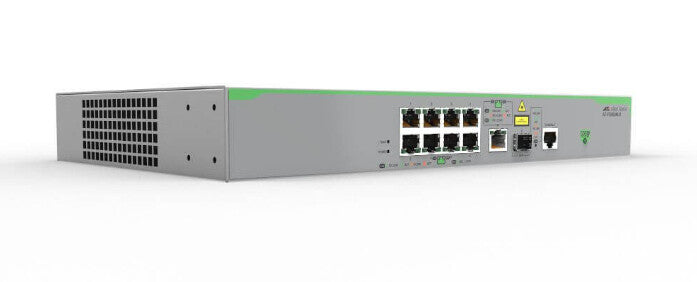

Allied Telesis AT-FS980M/9-50 Managed Fast Ethernet (10/100) Grey
£317.99
inc. VATSpread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £105.99 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Managed Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 8 Console port: RJ-45
- 10BASE-T, 100BASE-T
- MAC address table: 16000 entries Switching capacity: 3.6 Gbit/s
- Access Control List (ACL)
Fast Ethernet Managed Access Switch
The FS980M/9 features 8 x 10/100TX ports and 1 combo (10/100/1000T or 100/1000X SFP) uplink port.
The CentreCOM FS980M Series are cost-effective Fast Etherent switches for deployment at the network edge. As part of an Autonomous Management Framework™ (AMF) network, the FS980M switches utilize automated management and zero-touch recovery to lower running costs.
Specifications
Management features
| Switch type | Managed |
|---|---|
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 8 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Gigabit Ethernet (copper) ports quantity | 1 |
| Combo SFP ports quantity | 1 |
| Console port | RJ-45 |
Show all 42 specificationsShow fewer specifications
Network
| Networking standards | IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.3z |
|---|---|
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T |
| Spanning tree protocol | Yes |
| Link aggregation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN, Port-based VLAN |
Data transmission
| MAC address table | 16000 entries |
|---|---|
| Switching capacity | 3.6 Gbit/s |
| Throughput | 2.68 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
Security
| Access Control List (ACL) | Yes |
|---|---|
| IGMP snooping | Yes |
| BPDU filtering/protection | Yes |
Multicast features
| Multicast support | Yes |
|---|
Design
| Rack mounting | No |
|---|---|
| Product colour | Grey |
| LED indicators | Yes |
| Safety | FCC, EN55022, CISPR22:2006, VCCI, C-Tick, UL 60950-1, C22.2 NO.60950-1, EN 60950-1, IEC60950-1, EN60950-1 |
Performance
| Memory type | DDR2-SDRAM |
|---|---|
| Internal memory | 128 MB |
| Flash memory | 128 MB |
Power
| Power consumption (max) | 6.3 W |
|---|
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 22 BTU/h |
Weight & dimensions
| Width | 210 mm |
|---|---|
| Depth | 275 mm |
| Height | 42.5 mm |
| Weight | 2 kg |
Certificates
| Certification | CE, cULus, TUV, RoHS |
|---|
