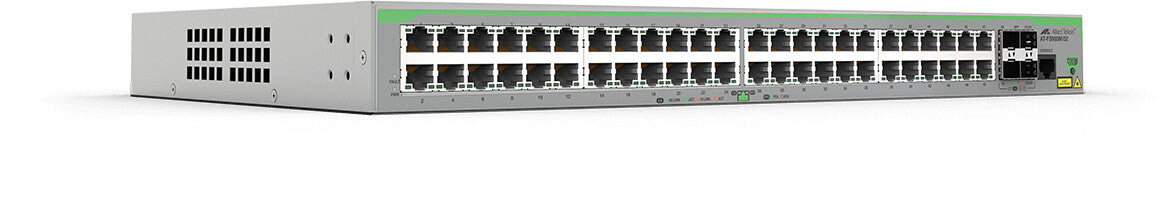

Allied Telesis AT-FS980M/52-50 Managed Fast Ethernet (10/100) Grey
Allied Telesis AT-FS980M/52-50 Managed Fast Ethernet (10/100) Grey

Allied Telesis AT-FS980M/52-50 Managed Fast Ethernet (10/100) Grey

Allied Telesis · MPN: 990-005052-50
£806.99
inc. VAT
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £268.99 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Out of stock

FREE delivery

Express £9.99

Overview
  • Managed Web-based management
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 48 Console port: RJ-45
  • 10BASE-T, 100BASE-T
  • MAC address table: 16000 entries Switching capacity: 17.6 Gbit/s
  • Access Control List (ACL)

Fast Ethernet Managed Access Switch
The FS980M/52 features 48 x 10/100TX ports and 4 x 100/1000X SFP uplink/stacking ports.

CentreCOM FS980M switches are cost-effective, fully managed, and can be stacked for increased resiliency and port density at the edge of the network. As part of an Autonomous Management Framework™ (AMF) network, the FS980M switches utilize automated management and zero-touch recovery to lower running costs.

Specifications

Management features

Switch typeManaged
Quality of Service (QoS) supportYes
Web-based managementYes
System event logYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
SFP module slots quantity4
Console portRJ-45
Show all 48 specificationsShow fewer specifications

Network

Networking standardsIEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology10BASE-T, 100BASE-T
Port mirroringYes
Spanning tree protocolYes
Link aggregationYes
VLAN supportYes
Virtual LAN featuresPrivate VLAN, Port-based VLAN

Data transmission

MAC address table16000 entries
Switching capacity17.6 Gbit/s
Throughput13.09 Mpps
Static routeYes
Jumbo frames supportYes
Jumbo frames10000

Security

DHCP featuresDHCP snooping
Access Control List (ACL)Yes
IGMP snoopingYes
BPDU filtering/protectionYes
Loop protectionYes

Multicast features

Multicast supportYes

Protocols

IPv4 & IPv6 featuresIPv6 tracert, Dual stack IPv4/IPv6

Design

Rack mountingNo
Product colourGrey
LED indicatorsYes
SafetyFCC, EN55022, CISPR22:2006, VCCI, C-Tick, UL 60950-1, C22.2 NO.60950-1, EN 60950-1, IEC60950-1, EN60950-1

Performance

Memory typeDDR2-SDRAM
Internal memory512 MB
Flash memory128 MB
Noise level51 dB

Power

Power consumption (max)36 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)5 - 90%
Storage relative humidity (H-H)5 - 95%
Heat dissipation120 BTU/h

Weight & dimensions

Width440 mm
Depth257 mm
Height43.2 mm
Weight3.4 kg

Certificates

CertificationCE, cULus, TUV, RoHS
