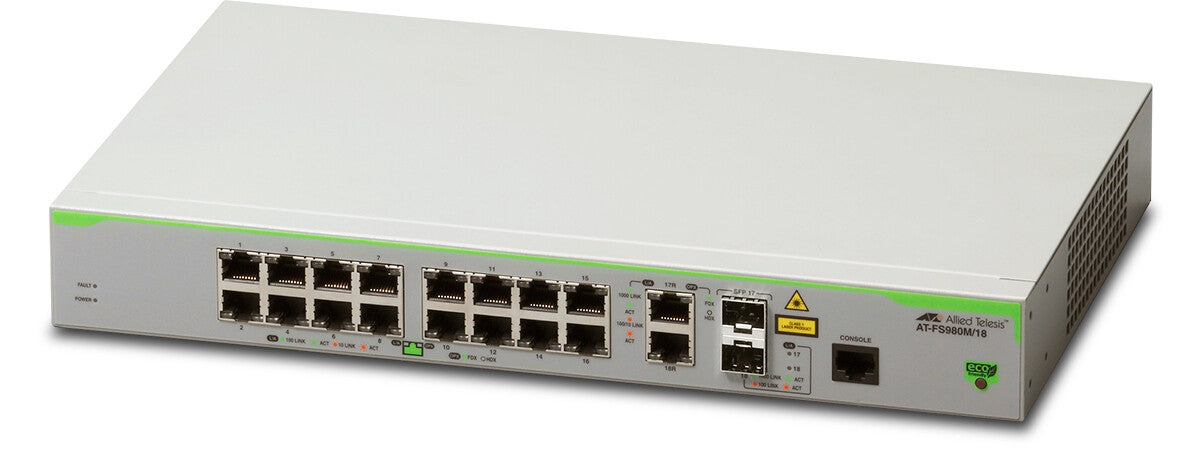

Allied Telesis AT-FS980M/18-50 Managed Fast Ethernet (10/100) Grey
£369.99
Couldn't load pickup availability
- Managed Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 16 Console port: RJ-45
- 10BASE-T, 100BASE-TX, 1000BASE-TX
- MAC address table: 16000 entries Switching capacity: 7.2 Gbit/s
- Access Control List (ACL)
Fast Ethernet Managed Access Switch
The FS980M/18 features 16 x 10/100TX ports and 2 combo (10/100/1000T or 100/1000X SFP) uplink ports.
The CentreCOM FS980M Series are cost-effective Fast Etherent switches for deployment at the network edge. As part of an Autonomous Management Framework™ (AMF) network, the FS980M switches utilize automated management and zero-touch recovery to lower running costs.
| Management features | |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Gigabit Ethernet (copper) ports quantity | 2 |
| Combo SFP ports quantity | 2 |
| Console port | RJ-45 |
| Network | |
|---|---|
| Networking standards | IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-TX |
| Port mirroring | Yes |
| Spanning tree protocol | Yes |
| Link aggregation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN, Port-based VLAN |
| Data transmission | |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 7.2 Gbit/s |
| Throughput | 5.36 Mpps |
| Jumbo frames support | Yes |
| Security | |
|---|---|
| DHCP features | DHCPv6 client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| BPDU filtering/protection | Yes |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Design | |
|---|---|
| Rack mounting | No |
| Product colour | Grey |
| LED indicators | Yes |
| Safety | FCC, EN55022, CISPR22:2006, VCCI, C-Tick, UL 60950-1, C22.2 NO.60950-1, EN 60950-1, IEC60950-1, EN60950-1 |
| Performance | |
|---|---|
| Memory type | DDR2-SDRAM |
| Internal memory | 128 MB |
| Flash memory | 128 MB |
| Power | |
|---|---|
| Power consumption (max) | 12 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 330 mm |
| Depth | 204 mm |
| Height | 43.6 mm |
| Weight | 2.15 kg |
| Packaging data | |
|---|---|
| Package weight | 4 kg |
| Certificates | |
|---|---|
| Certification | CE, cULus, TUV, RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
