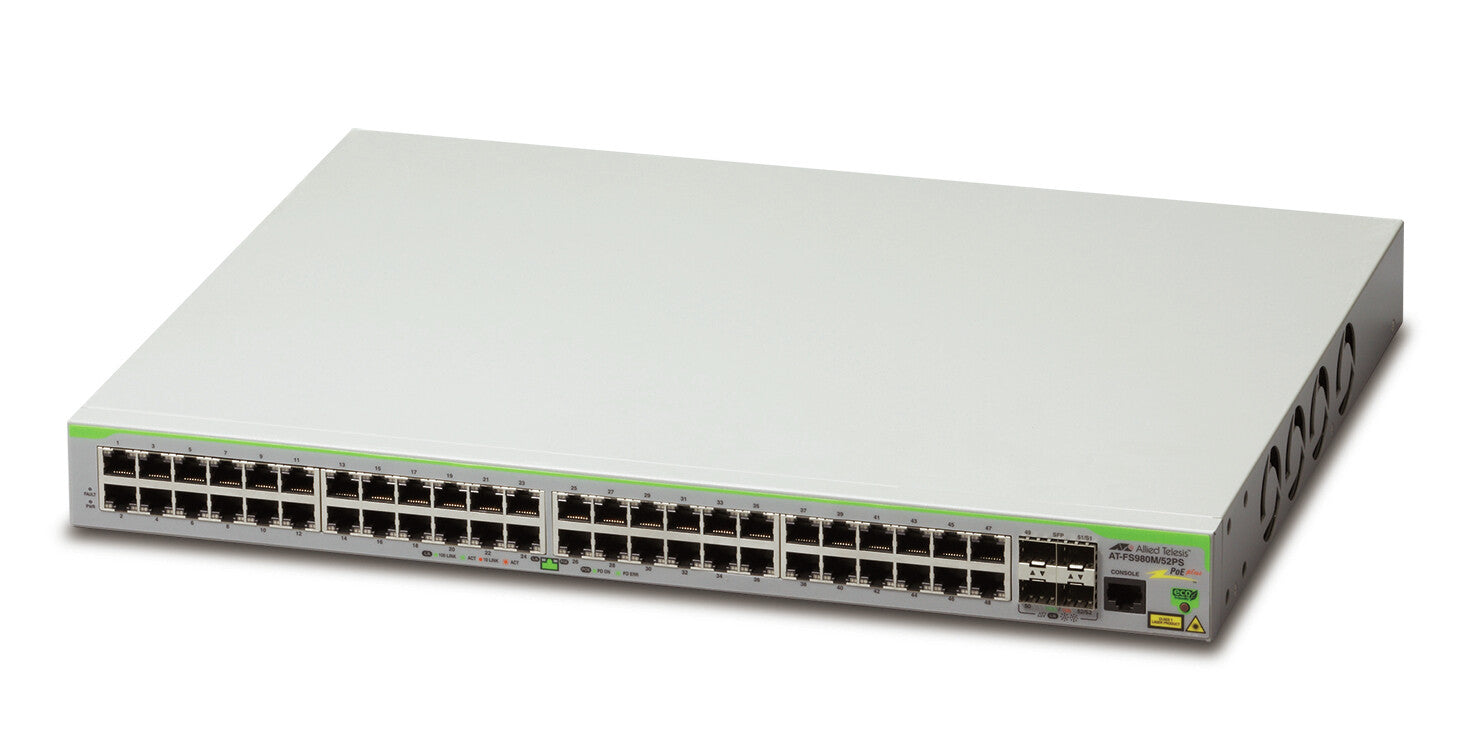

Allied Telesis AT-FS980M-52PS Managed L3 Fast Ethernet (10/100) Power over Ethernet (PoE) Grey
Couldn't load pickup availability
- Managed L3 Web-based management SNMP v1, v2c, v3
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 48 Console port: RJ-45
- 10BASE-T, 100BASE-TX
- MAC address table: 16000 entries Switching capacity: 17.6 Gbit/s
- Access Control List (ACL)
- Rack mounting
- Power over Ethernet (PoE)
Fast Ethernet Managed Access Switch
Allied Telesis CentreCOM FS980M switches feature centralized network management via Allied Telesis Autonomous Management FrameworkTM (AMF), and a redundant system with Virtual Chassis Stacking (VCStackTM). These high-performing switches deliver flexible uplink connectivity and lower management costs.
FS980M switches provide high-performance Fast Ethernet connectivity right where you need
it—at the network edge. Flexible and robust, the FS980M series provide total security and management features for enterprises of all sizes. They also support video surveillance and Point of Sale (POS) applications.
Reduce network running costs by automating and simplifying many dayto-day
tasks—an FS980M is the ideal AMF edge switch when an AMF Master switch is available in the network.
With both copper and Power over Ethernet (PoE) models, the FS980M Series has the ideal solution for your network. All models are available with 8, 16, 24 and 48 × 10/100TX Fast
Ethernet ports. PoE models support the IEEE 802.3at (PoE+) standard, delivering up to 30 Watts of power per port for video surveillance and security applications.
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Traffic classification | Yes |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 48 |
| SFP module slots quantity | 4 |
| Fiber optic connector | SFP |
| Console port | RJ-45 |
| Network | |
|---|---|
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Port mirroring | Yes |
| IP routing | Yes |
| Active link detection | Yes |
| Spanning tree protocol | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN |
| Optical fiber | |
|---|---|
| Fiber ethernet cabling technology | 100BASE-X, 1000BASE-X |
| Data transmission | |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 17.6 Gbit/s |
| Throughput | 13.09 Mpps |
| Number of queues | 8 |
| Number of static routes | 16 |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Security | |
|---|---|
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| BPDU filtering/protection | Yes |
| Authentication | MAC-based authentication, Port-based authentication, Web-based authentication |
| Security algorithms | SNMP, SSH, SSL/TLS |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| Static port security | Yes |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Protocols | |
|---|---|
| Management protocols | SNMP v1, v2c, v3 |
| Supported network protocols | HTTPS, HTTP |
| Design | |
|---|---|
| Rack mounting | Yes |
| Product colour | Grey |
| Safety | UL 60950-1 Ed2, C22.2 NO.60950-1, EN 60950-1 Ed2, IEC60950-1 Ed.2, EN60950-1. |
| Performance | |
|---|---|
| Memory type | DDR2-SDRAM |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Noise level | 36 dB |
| Power | |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 540 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 48 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 375 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Heat dissipation | 210 BTU/h |
| Weight & dimensions | |
|---|---|
| Width | 440 mm |
| Depth | 345 mm |
| Height | 43.2 mm |
| Weight | 5.4 kg |
| Packaging data | |
|---|---|
| Package weight | 8.2 kg |
| Certificates | |
|---|---|
| Certification | FCC part15 B, EN55022 Class A, CISPR22:2006, VCCI Class A, C-Tick, EN 55024, CE, cULus, TUV |
