Allied Telesis AT-FS917M-50 Managed L2 Fast Ethernet (10/100) Grey
£326.99
Taxes included in the price
Couldn't load pickup availability
- Managed L2 Web-based management SNMP, Telnet
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 16 Console port: RJ-45
- 1000BASE-T, 100BASE-T, 10BASE-T
- MAC address table: 8000 entries Switching capacity: 8.2 Gbit/s
- Rack mounting

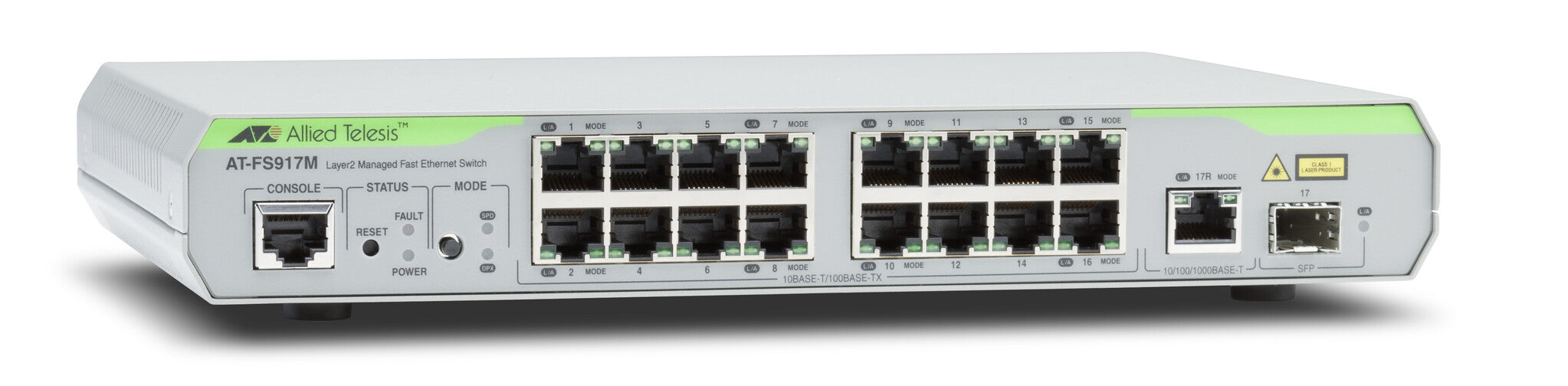

The Allied Telesis CentreCOM AT-FS917M switch provides an intelligent and cost-effective solution for the edge of the network, offering 16 × 10/100T ports and 1 × Combo port (10/100/1000T or 100/1000FX port).
The CentreCOM FS900M Series is designed to reduce power consumption and to minimize hazardous waste. Fans are designed to minimize noise pollution. High efficiency power supplies, low power chipsets, and effective power management deliver both a reduced carbon footprint and cost savings for the end user.
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| MIB support | RFC1213, RFC2665, RFC2863, RFC1493 |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Combo SFP ports quantity | 1 |
| Console port | RJ-45 |
| Power connector | DC-in jack |
| Network | |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-T, 10BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Spanning tree protocol | Yes |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
| VLAN support | Yes |
| Number of VLANs | 256 |
| Data transmission | |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 8.2 Gbit/s |
| Throughput | 3.87 Mpps |
| Security | |
|---|---|
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| Security algorithms | EAP-TTLS, MD5, PEAP, SSL/TLS |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Protocols | |
|---|---|
| Management protocols | SNMP, Telnet |
| Supported network protocols | SNTP, DHCP, IGMP |
| Design | |
|---|---|
| Rack mounting | Yes |
| Product colour | Grey |
| LED indicators | Yes |
| Safety | UL60950-1, CSA-C22.2 No. 60950-1 |
| Performance | |
|---|---|
| Internal memory | 32 MB |
| Flash memory | 8 MB |
| Power | |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 0.3 A |
| Power consumption (typical) | 9.1 W |
| Power consumption (max) | 13 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 5 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 263 mm |
| Depth | 179 mm |
| Height | 38 mm |
| Weight | 1.4 kg |
