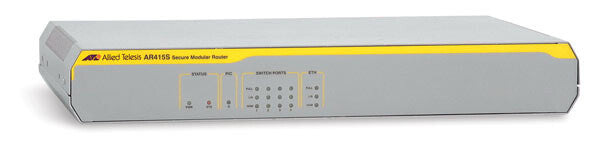

Allied Telesis AT-AR415S wired router

Allied Telesis AT-AR415S wired router

Allied Telesis
£525.99
Taxes included in the price
Qty available: 0
  • IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ac, IEEE 802.3u, IEEE 802.3x
  • DHCP client DHCP server
  • 3DES, DES

The AT-AR415S uses a variety of high-speed WAN access technologies to deliver fast, reliable and secure Internet and network access for small and medium-sized businesses. Packaged in a compact one-rack unit chassis, this versatile router provides five 10/100 Fast Ethernet interfaces and supports a variety of Port Interface Cards (PICs).

For the WAN network, the AT-AR415S features one 10/100Mbps Ethernet Port. Also offered is an asynchronous port and four Layer 2 switched LAN ports that are reconfigurable as a DMZ.

Network
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ac, IEEE 802.3u, IEEE 802.3x
Data transfer rate 10 Mbit/s
Supports ISDN connection Yes
Management features
Quality of Service (QoS) support Yes
Universal Plug and Play (UPnP) Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports 4
Protocols
DHCP server Yes
DHCP client Yes
Supported network protocols SNMP, HTTP
Security
Security algorithms 3DES, DES
MAC address filtering Yes
VPN tunnels quantity 50
Packaging content
Manual Yes
Quick start guide Yes
User Guide on CD-ROM Yes
Features
Flash memory 16 MB
Plug and Play Yes
Mean time between failures (MTBF) 90000 h
Certification EN55022 A, FCC A, VCCI A, AS/NZS CISPR22 A, EN55024, UL60950, CAN/CSA-C22.2NO. 60950-00, EN60950,
UL, cUL,TUV
Minimum processor 266 MHz
Minimum RAM 32 MB
Design
Rack capacity 1U
LED indicators Yes
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -25 - 70 °C
Operating relative humidity (H-H) 5 - 95%
Weight & dimensions
Weight 1.75 kg
Other features
Compatible operating systems Windows XP/2000
Connectivity technology Wired
Dimensions (WxDxH) 305 x 190 x 45 mm
