Allied Telesis AT-ANC10S/2-001 network card Internal Fiber 10000 Mbit/s
£342.99
Taxes included in the price
Couldn't load pickup availability
- Wired
- PCI Express 2.0 Fiber
- 10000 Mbit/s
- Internal Component for: Server

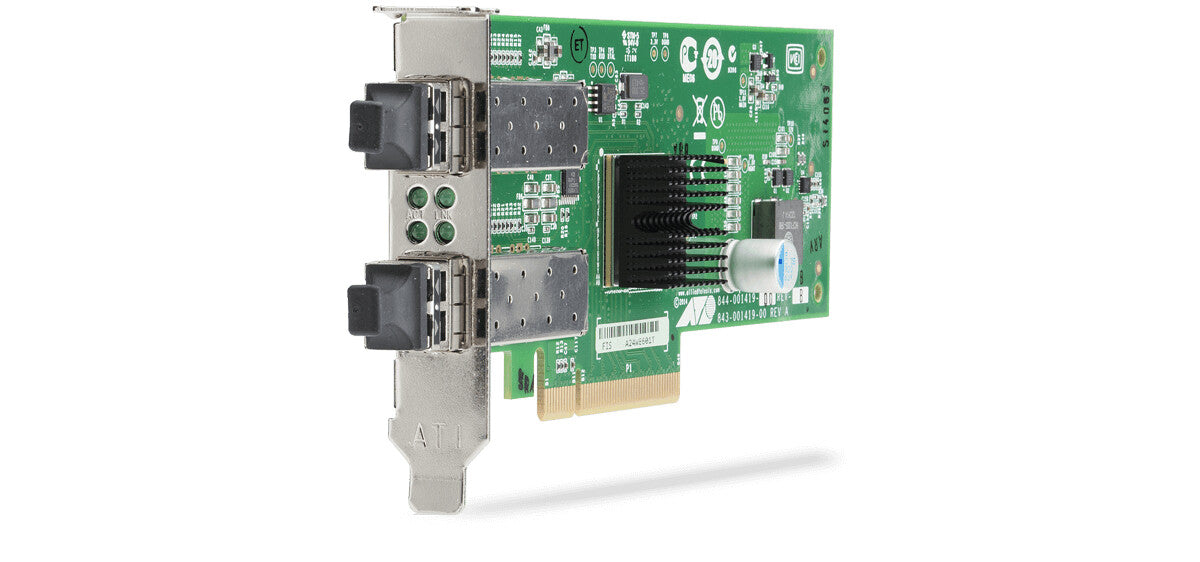

The ANC10S/2 is a dual-port direct-attach 10 Gbps PCIe x8 Network Interface Card. This product enables convergence of all the networked communications possible in a server, such as data network (LAN).
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Fiber |
| PCI version | 2.0 |
| Network | |
|---|---|
| Maximum data transfer rate | 10000 Mbit/s |
| Networking standards | IEEE 802.1Q, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1p, IEEE 802.2, IEEE 802.3ad |
| Wi-Fi | No |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| Auto-negotiation | Yes |
| Load balancing system | Yes |
| Design | |
|---|---|
| Internal | Yes |
| Component for | Server |
| LED indicators | Yes |
| Certification | UL, FCC/EN55022 Class B, TUV, EN55024, CE, C-TICK, VCCI |
| Power | |
|---|---|
| Output voltage | 3.3-12 V |
| Power consumption (typical) | 6 W |
| System requirements | |
|---|---|
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 160 mm |
| Height | 68.9 mm |
| Weight | 78 g |
| Packaging content | |
|---|---|
| Mounting brackets included | Yes |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Other features | |
|---|---|
| Flow control support | Yes |
