Allied Telesis AT-9000/28SP Managed L2 Gigabit Ethernet (10/100/1000)
£1,173.99
Taxes included in the price
Couldn't load pickup availability
- Managed L2 WEB, CLI, SNMP
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 28
- MAC address table: 8000 entries

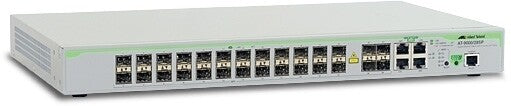

28 port Gigabit Managed "Green" switch with 24 port 100/1000 Mbps SFP fixed configuration and 4 additional 100/1000 Mbps SFP ports in combination with 10/100/1000T ports.
The AT-9000/28 is a 28 port managed Gigabit Ethernet switch that is ideally suited for the enterprise environment. This cost-effective switch has a 1RU form factor, and four SFP combo bays. It supports key features such as such as link aggregation, VLANs, QoS and 802.1x security.
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 28 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 4 |
| SFP module slots quantity | 24 |
| SFP/SFP+ slots quantity | 28 |
| Network | |
|---|---|
| Networking standards | IEEE 802.1d, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| Data transmission | |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Maximum data transfer rate | 1 Gbit/s |
| Security | |
|---|---|
| MAC address filtering | Yes |
| Protocols | |
|---|---|
| Management protocols | WEB, CLI, SNMP |
| Design | |
|---|---|
| Stackable | No |
| Safety | UL 60950, EN 60950-1 |
| Performance | |
|---|---|
| Internal memory | 128 MB |
| Flash memory | 16 MB |
| Noise level | 41.7 dB |
| Mean time between failures (MTBF) | 340000 h |
| Power | |
|---|---|
| Power consumption (typical) | 37.42 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Other features | |
|---|---|
| Dimensions (WxDxH) | 440 x 256 x 44 mm |
| Connectivity technology | Wired |
| Power requirements | 100 - 240V AC, 50/60Hz, 1A |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 127.768 BTU/h |
| Weight & dimensions | |
|---|---|
| Weight | 4.01 kg |
