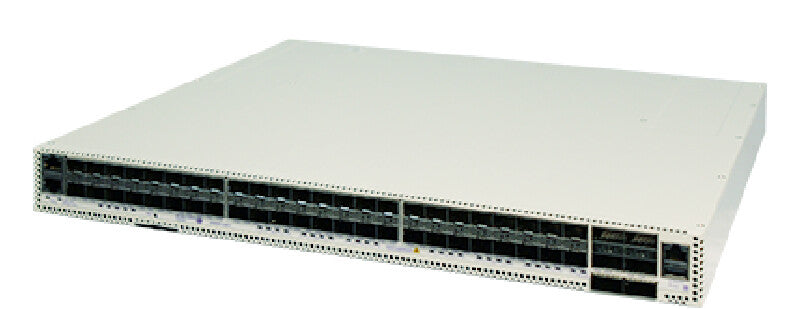

Alcatel-Lucent Enterprise OS6900X48-F-EU network switch Managed L2/L3 1U Grey
Alcatel-Lucent Enterprise OS6900X48-F-EU network switch Managed L2/L3 1U Grey

Alcatel-Lucent Enterprise OS6900X48-F-EU network switch Managed L2/L3 1U Grey

Alcatel-Lucent · MPN: OS6900X48-F-EU
£13,938.99
inc. VAT
Spread the cost with Klarna, Float or SnapFrom 3 interest-free payments of £4,646.33 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Out of stock

FREE delivery

Express £9.99

Overview
  • Managed L2/L3 Web-based management SNMPv1/2/3, Telnet, SSH
  • Quality of Service (QoS) support
  • 10G support 10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T
  • Switching capacity: 2160 Gbit/s
  • Access Control List (ACL)
  • 1U Rack mounting Stackable
  • AC

The Alcatel-Lucent OmniSwitch® 6900 fixed Core LAN and Data Center (DC) switches are compact, high-density 10, 25, 40 and 100 Gigabit Ethernet (GigE) platforms. They offer high performance aand extremely low latency Layer-2 and Layer-3 switching for campus and DC Fabric networks. They are designed for the most demanding software-defined operations in virtualized or physical networks. OmniSwitch 6900s can be positioned as Top- of- Rack (ToR) or spine switches in DC environments, or as core and aggregation devices in campus networks. They support a wide range of protocols and programable interface (API) for building ALE’s autonomous Service Defined Network or overlay networks based on Software Defined Network architectures.

Specifications

Management features

Switch typeManaged
Switch layerL2/L3
Quality of Service (QoS) supportYes
Web-based managementYes
System event logYes
MIB supportMIB, MIB-II

Ports & interfaces

Installed SFP+ modules quantity48
QSFP28 ports quantity6
USB 2.0 ports quantity1
Show all 48 specificationsShow fewer specifications

Network

Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ak, IEEE 802.3an, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportYes
Copper ethernet cabling technology10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T
Port mirroringYes
IP routingYes
Head-of-line (HOL) blockingYes
Spanning tree protocolYes
Broadcast storm controlYes
Link aggregationYes
Auto-sensingYes
Flow control supportYes
VLAN supportYes

Data transmission

Switching capacity2160 Gbit/s
Forwarding rate1607 Mpps
Jumbo frames supportYes

Security

DHCP featuresDHCP client, DHCP server
Access Control List (ACL)Yes
IGMP snoopingYes
Security algorithms802.1x RADIUS, MD5, SSH
SSH/SSL supportYes

Multicast features

Multicast supportYes

Protocols

Management protocolsSNMPv1/2/3, Telnet, SSH
Supported network protocolsIPv4/IPv6

Design

Rack mountingYes
StackableYes
Form factor1U
Product colourGrey
LED indicatorsYes

Performance

Internal memory8000 MB
Flash memory32000 MB

Power

Power sourceAC
Redundant power supply (RPS) supportYes

Operational conditions

Operating temperature (T-T)0 - 45 °C
Storage temperature (T-T)-10 - 70 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%

Weight & dimensions

Width443 mm
Depth473.3 mm
Height44 mm
