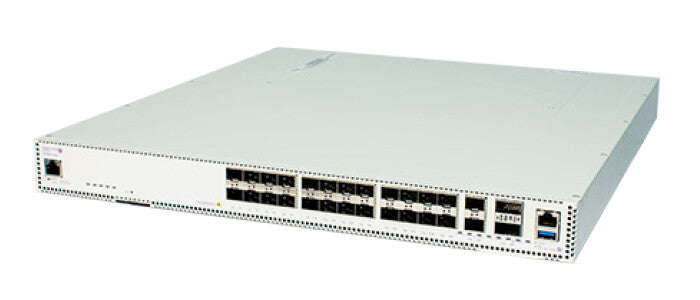

Alcatel-Lucent Enterprise OmniSwitch 6900 Managed L2/L3 1U Grey
Spread the cost with Klarna, Float or SnapFrom 3 interest-free payments of £2,755.66 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Managed L2/L3 Web-based management SNMPv1/2/3, Telnet, SSH
- Quality of Service (QoS) support
- 10G support 10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T
- Switching capacity: 2160 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting Stackable
- AC
The Alcatel-Lucent OmniSwitch® 6900 fixed Core LAN and Data Center (DC) switches are compact, high-density 10, 25, 40 and 100 Gigabit Ethernet (GigE) platforms. They offer high performance aand extremely low latency Layer-2 and Layer-3 switching for campus and DC Fabric networks. They are designed for the most demanding software-defined operations in virtualized or physical networks.
OmniSwitch 6900s can be positioned as Top- ofRack (ToR) or spine switches in DC environments,
or as core and aggregation devices in campus networks. They support a wide range of protocols and programable interface (API) for building ALE’s autonomous Service Defined Network or overlay networks based on Software Defined Network architectures.
The OmniSwitch 6900 product family offers a very high port density, with up to 128 x 10 GigE, 80 x 25 GigE and up to 32 x 40/100 GigE ports in a 1RU form factor. The Virtual Chassis1 feature extends the modularity and reliability of connectivity to address any size of virtualized, highly secured modern and autonomous networks. MACsec is also supported on specific OS6900 models for mission critical and encrypted communication networks. The OmniSwitch 6900 product family leverages an energy-efficient model with leading low power consumption, making them the most efficient and versatile switches in their class
Specifications
Management features
| Switch type | Managed |
|---|---|
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
| MIB support | MIB, MIB-II |
Ports & interfaces
| Installed SFP+ modules quantity | 24 |
|---|---|
| QSFP28 ports quantity | 6 |
| USB 2.0 ports quantity | 1 |
Show all 48 specificationsShow fewer specifications
Network
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ak, IEEE 802.3an, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
|---|---|
| 10G support | Yes |
| Copper ethernet cabling technology | 10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T |
| Port mirroring | Yes |
| IP routing | Yes |
| Head-of-line (HOL) blocking | Yes |
| Spanning tree protocol | Yes |
| Broadcast storm control | Yes |
| Link aggregation | Yes |
| Auto-sensing | Yes |
| Flow control support | Yes |
| VLAN support | Yes |
Data transmission
| Switching capacity | 2160 Gbit/s |
|---|---|
| Forwarding rate | 1607 Mpps |
| Jumbo frames support | Yes |
Security
| DHCP features | DHCP client, DHCP server |
|---|---|
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Security algorithms | 802.1x RADIUS, MD5, SSH |
| SSH/SSL support | Yes |
Multicast features
| Multicast support | Yes |
|---|
Protocols
| Management protocols | SNMPv1/2/3, Telnet, SSH |
|---|---|
| Supported network protocols | IPv4/IPv6 |
Design
| Rack mounting | Yes |
|---|---|
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Grey |
| LED indicators | Yes |
Performance
| Internal memory | 8000 MB |
|---|---|
| Flash memory | 32000 MB |
Power
| Power source | AC |
|---|---|
| Redundant power supply (RPS) support | Yes |
Operational conditions
| Operating temperature (T-T) | 0 - 45 °C |
|---|---|
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Width | 443 mm |
|---|---|
| Depth | 473.3 mm |
| Height | 44 mm |
