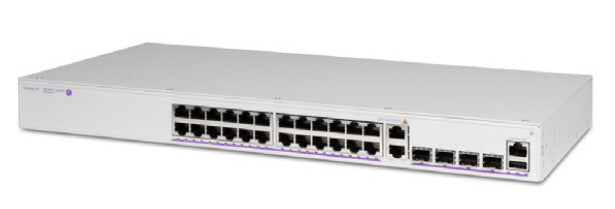

Alcatel-Lucent Enterprise OmniSwitch 6360-PH24 - Stackable Gigabit Ethernet LAN Switch
Alcatel-Lucent Enterprise OmniSwitch 6360-PH24 - Stackable Gigabit Ethernet LAN Switch

Alcatel-Lucent Enterprise OmniSwitch 6360-PH24 - Stackable Gigabit Ethernet LAN Switch

Alcatel-Lucent · MPN: OS6360-PH24-UK
£908.99
inc. VAT
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £302.99 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Key specs

  • Internal memory1024 MB
  • Weight3.2 kg
All specifications

Out of stock

FREE delivery

Express £9.99

Overview
  • 10, 24, and 48 Gigabit Ethernet data or PoE+ ports with line-rate performance
  • Gigabit Ethernet SFP or SFP/RJ-45 combination uplink ports, or fixed 10 Gigabit Ethernet SFP+/RJ45 combination
  • uplink ports (X models)
  • 10 GigE virtual chassis bandwidth up to 8 units (stacking) or 416 ports
  • Perpetual and fast PoE+ support across all PoE models
  • Compact fanless models for co-location work environments
  • Cloud enabled with Alcatel-Lucent OmniVista Cirrus for secure, resilient, and scalable cloud based network management
  • Flexible device and user authentication with Alcatel-Lucent Access Guardian 2.0 (IEEE 802.1x/MAC/captive portal/UNP/ BYOD/IoT)
  • Two multi-gigabit (10/100/1G/2.5) RJ-45 HPoE (95W IEEE802.3bt) user interfaces (-P48X)
  • IEEE 802.3af, IEEE 802.3at and IEEE802.3bt (-P48X) PoE support for IP phones, wireless LAN (WLAN) access points, PTZ video cameras and IoT devices

Fixed 1RU chassis 24 RJ-45 PoE 10/100/1G BaseT, 2 1G* RJ45/SFP combo, 2 SFP+ (1G/10G) uplink or VFL ports. 380W power budget. *10G license upgradeable.


The Alcatel-Lucent OmniSwitch® 6360 Stackable Gigabit Ethernet LAN Switch Family is an industry leading, branch, campus workgroup, and enterprise, value access solution. These are simple, flexible, and secure switches ideal for out-of-the-wiring-closet workstation, accesspoint, IP telephony and critical Internet of Things (IoT) deployment.

OmniSwitch 6360 operates using the field proven Alcatel-Lucent Operating System (AOS) software supporting simple device management and network management with a Command-Line Interface (CLI) in addition to an inbox web browser graphical user interface (GUI). These switches deliver enhanced network security, reliability, and operational efficiency for Small- and Medium-sized Businesses (SMB) or Enterprise edge networks.

The Alcatel-Lucent OmniSwitch 6360 family is embedded with the latest technology innovations, and offers maximum investment protection.

Deployments that benefit from the OmniSwitch 6360 family include:
• Classroom and campus workgroups
• Small enterprise or branch office enterprise
• Small-to-mid-sized and enterprise edge networks

Specifications

Management features

Switch typeManaged
Switch layerL2/L3
Quality of Service (QoS) supportYes
Cloud-managedYes
Web-based managementYes
ARP inspectionYes
System event logYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
SFP+ module slots quantity2
Show all 64 specificationsShow fewer specifications

Network

Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportNo
Port mirroringYes
Policy-based routingYes
Rate limitingYes
Head-of-line (HOL) blockingYes
Spanning tree protocolYes
Link aggregationYes
Auto-sensingYes
Auto-negotiationYes
Auto MDI/MDI-XYes
Flow control supportYes
VLAN supportYes
Virtual LAN featuresTagged VLAN
Number of VLANs4000

Data transmission

MAC address table16000 entries
Switching capacity92 Gbit/s
Throughput68.5 Mpps
Static routeYes
Jumbo frames supportYes
Packet buffer memory1.5 MB

Security

DHCP featuresDHCP Option 82, DHCP client, DHCP relay, DHCP server, DHCP snooping
Access Control List (ACL)Yes
IGMP snoopingYes
Queue scheduling algorithmsStrict Priority Queue (SPQ), Weighted Round Robin (WRR)
Authentication typeRADIUS
AuthenticationMAC-based authentication, Web-based authentication
SSH/SSL supportYes

Multicast features

Multicast supportYes

Design

Rack mountingYes
StackableYes
Form factor1U
Product colourStainless steel
LED indicatorsYes
Number of fans1 fan(s)

Performance

Built-in processorYes
Processor frequency800 MHz
Internal memory1024 MB
Flash memory1000 MB
FanlessYes

Power

Power sourceAC
Power supply includedYes
Power plug typeType G

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity24
Total Power over Ethernet (PoE) budget380 W

Operational conditions

Operating temperature (T-T)0 - 45 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)5 - 95%
Heat dissipation95.5 BTU/h

Weight & dimensions

Width440 mm
Depth330 mm
Height44 mm
Weight3.2 kg
