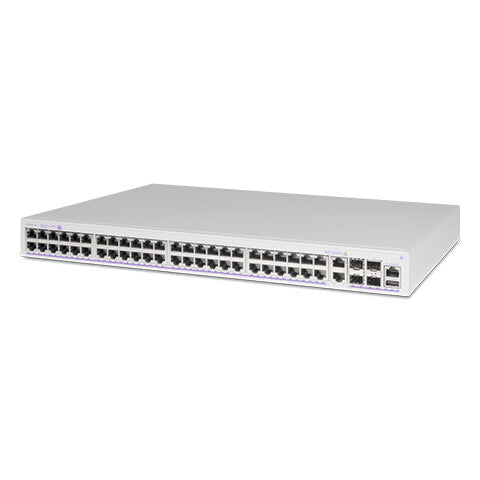

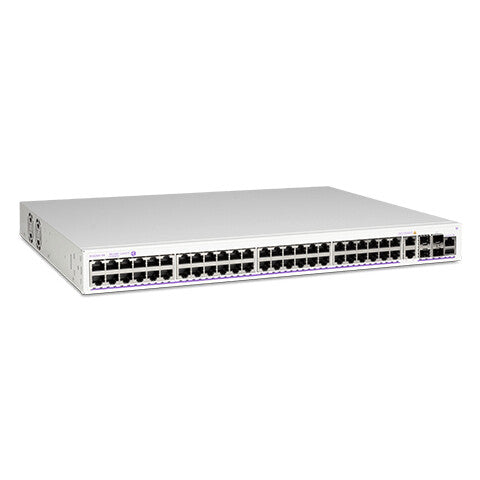

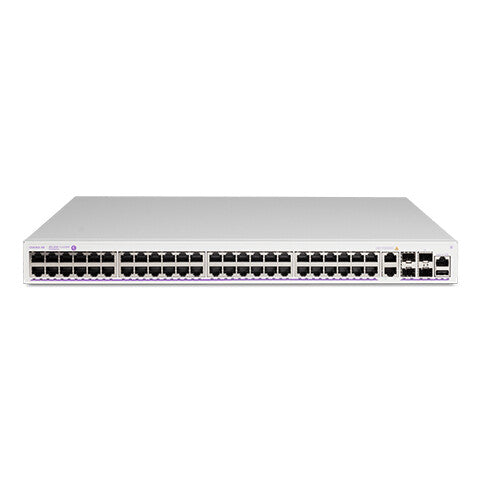

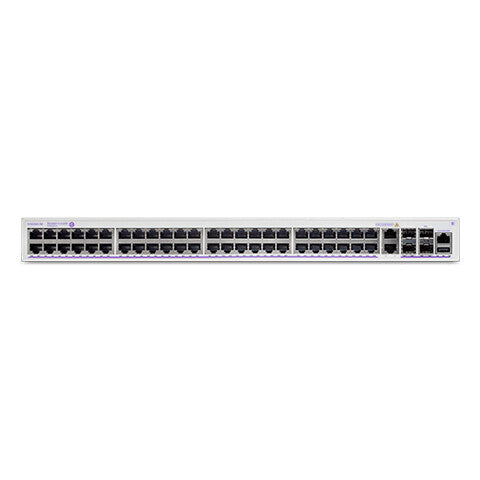

Alcatel-Lucent Enterprise OmniSwitch 6360 P48X Stackable Gigabit Ethernet LAN Switch
Spread the cost with Klarna, PayPal, Float or SnapFrom 3 interest-free payments of £431.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- 10, 24, and 48 Gigabit Ethernet data or PoE+ ports with line-rate performance
- Gigabit Ethernet SFP or SFP/RJ-45 combination uplink ports, or fixed 10 Gigabit Ethernet SFP+/RJ45 combination
- uplink ports (X models)
- 10 GigE virtual chassis bandwidth up to 8 units (stacking) or 416 ports
- Perpetual and fast PoE+ support across all PoE models
- Compact fanless models for co-location work environments
- Cloud enabled with Alcatel-Lucent OmniVista Cirrus for secure, resilient, and scalable cloud based network management
- Flexible device and user authentication with Alcatel-Lucent Access Guardian 2.0 (IEEE 802.1x/MAC/captive portal/UNP/ BYOD/IoT)
- Two multi-gigabit (10/100/1G/2.5) RJ-45 HPoE (95W IEEE802.3bt) user interfaces (-P48X)
- IEEE 802.3af, IEEE 802.3at and IEEE802.3bt (-P48X) PoE support for IP phones, wireless LAN (WLAN) access points, PTZ video cameras and IoT devices
Fixed 1RU chassis 46 RJ-45 PoE 10/100/1G BaseT, 2 RJ-45 PoE 1G/2.5G BaseT, 2 1G/10G RJ45/SFP combo, 2 SFP+ (1G/10G) uplink or VFL ports. 760W power budget.
The Alcatel-Lucent OmniSwitch® 6360 Stackable Gigabit Ethernet LAN Switch Family is an industry leading, branch, campus workgroup, and enterprise, value access solution. These are simple, flexible, and secure switches ideal for out-of-the-wiring-closet workstation, accesspoint, IP telephony and critical Internet of Things (IoT) deployment.
OmniSwitch 6360 operates using the field proven Alcatel-Lucent Operating System (AOS) software supporting simple device management and network management with a Command-Line Interface (CLI) in addition to an inbox web browser graphical user interface (GUI). These switches deliver enhanced network security, reliability, and operational efficiency for Small- and Medium-sized Businesses (SMB) or Enterprise edge networks.
The Alcatel-Lucent OmniSwitch 6360 family is embedded with the latest technology innovations, and offers
maximum investment protection.
Deployments that benefit from the OmniSwitch 6360 family include:
• Classroom and campus workgroups
• Small enterprise or branch office enterprise
• Small-to-mid-sized and enterprise edge networks
Specifications
Management features
| Switch type | Managed |
|---|---|
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
| Web-based management | Yes |
| System event log | Yes |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 48 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 2 |
| SFP+ module slots quantity | 2 |
| Fiber uplink ports quantity | 2 |
Show all 54 specificationsShow fewer specifications
Network
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
|---|---|
| 10G support | No |
| Port mirroring | Yes |
| IP routing | Yes |
| Spanning tree protocol | Yes |
| Link aggregation | Yes |
| Auto-sensing | Yes |
| Auto-negotiation | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
Data transmission
| Switching capacity | 140 Gbit/s |
|---|---|
| Forwarding rate | 208 Mpps |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet buffer memory | 1.5 MB |
Security
| DHCP features | DHCP Option 82, DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 server |
|---|---|
| Access Control List (ACL) | Yes |
| SSH/SSL support | Yes |
Multicast features
| Multicast support | Yes |
|---|
Design
| Rack mounting | Yes |
|---|---|
| Stackable | Yes |
| Product colour | Stainless steel |
| Number of fans | 1 fan(s) |
Performance
| Built-in processor | Yes |
|---|---|
| Processor model | ARM7 |
| Processor frequency | 800 MHz |
| Internal memory | 1024 MB |
| Flash memory | 1000 MB |
| Noise level | 42 dB |
| Mean time between failures (MTBF) | 789000 h |
Power
| Power source | AC |
|---|---|
| Power supply included | Yes |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
|---|---|
| Power over Ethernet plus (PoE+) ports quantity | 48 |
| Total Power over Ethernet (PoE) budget | 350 W |
Operational conditions
| Operating temperature (T-T) | 0 - 45 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Width | 440 mm |
|---|---|
| Depth | 330 mm |
| Height | 44 mm |
| Weight | 4.6 kg |
