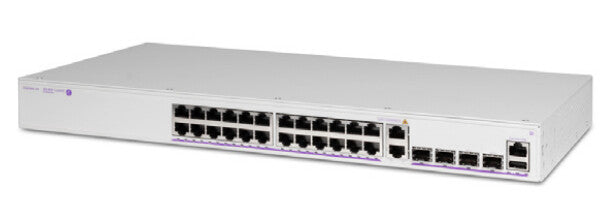

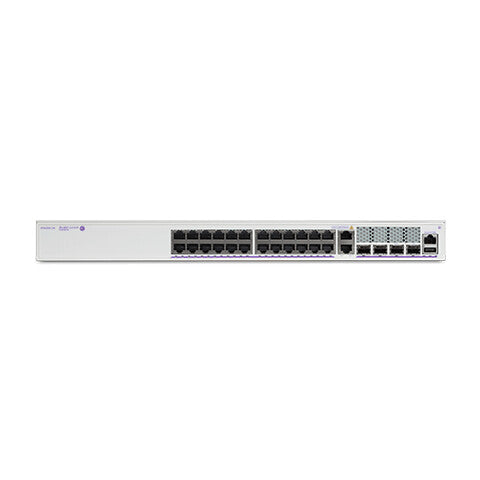

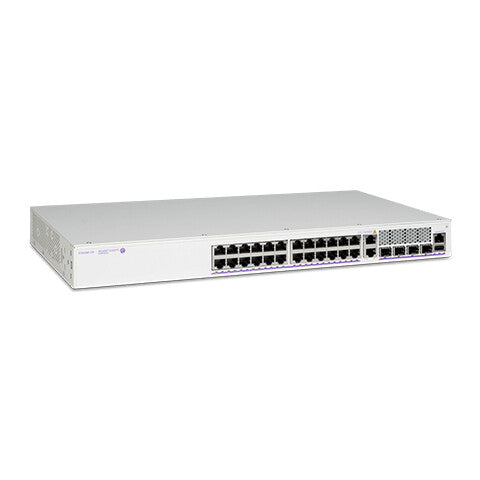

Alcatel-Lucent Enterprise OmniSwitch 2360-P24X - Stackable Gigabit Ethernet LAN Switch
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £362.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- 24 and 48 Gigabit Ethernet data or PoE+ ports with line-rate performance
- Gigabit Ethernet SFP uplink ports or 10 Gigabit Ethernet SFP+ uplink ports (X models)
- 10 GigE virtual chassis bandwidth up to 8 units (stacking) or 216 ports
- Perpetual and fast PoE+ support across all PoE models
- Compact fan-less models for co-location work environments
Fixed 1RU chassis 24 RJ 45 PoE 10/100/1G BaseT, 2 10G SFP+ uplink ports, 2 SFP(+) as 1G uplinks or 10G stacking ports, 370W power budget
The Alcatel-Lucent OmniSwitch 2360 Stackable Gigabit Ethernet LAN switch family delivers value and is optimised for small and medium businesses (SMB), as well as branch/campus workgroup solutions.
The enterprise-grade OmniSwitch 2360 family delivers high- performance, availability, security, and scalability. This family of switches provides a solid foundation to support business communications, applications, users and devices. Unified network management is employed for a consistent wired and wireless experience. The OmniSwitch 2360 family is embedded with the latest technology innovations and offers maximum investment protection.
Specifications
Management features
| Switch type | Managed |
|---|---|
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| System event log | Yes |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 24 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 2 |
Show all 63 specificationsShow fewer specifications
Network
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
|---|---|
| 10G support | No |
| Port mirroring | Yes |
| Policy-based routing | Yes |
| Rate limiting | Yes |
| Head-of-line (HOL) blocking | Yes |
| Spanning tree protocol | Yes |
| Link aggregation | Yes |
| Auto-sensing | Yes |
| Auto-negotiation | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN |
| Number of VLANs | 4000 |
Data transmission
| MAC address table | 16000 entries |
|---|---|
| Switching capacity | 92 Gbit/s |
| Throughput | 68.5 Mpps |
| Static route | Yes |
| Jumbo frames support | Yes |
| Packet buffer memory | 1.5 MB |
Security
| DHCP features | DHCP Option 82, DHCP client, DHCP relay, DHCP server, DHCP snooping |
|---|---|
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Queue scheduling algorithms | Strict Priority Queue (SPQ), Weighted Round Robin (WRR) |
| Authentication type | RADIUS |
| Authentication | MAC-based authentication, Web-based authentication |
| SSH/SSL support | Yes |
Multicast features
| Multicast support | Yes |
|---|
Design
| Rack mounting | Yes |
|---|---|
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Stainless steel |
| LED indicators | Yes |
Performance
| Built-in processor | Yes |
|---|---|
| Processor frequency | 80 MHz |
| Internal memory | 1024 MB |
| Flash memory | 1000 MB |
| Fanless | Yes |
Power
| Power source | AC |
|---|---|
| Power supply included | Yes |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
|---|---|
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 380 W |
Operational conditions
| Operating temperature (T-T) | 0 - 45 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 95.5 BTU/h |
Weight & dimensions
| Width | 440 mm |
|---|---|
| Depth | 220 mm |
| Height | 44 mm |
| Weight | 3.2 kg |
Packaging content
| Manual | Yes |
|---|
