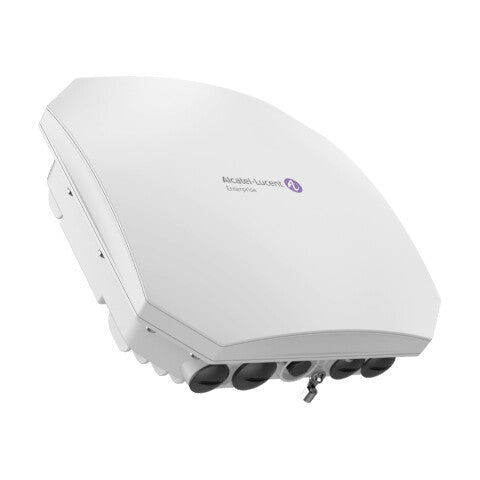

Alcatel-Lucent Enterprise OmniAccess Stellar AP1561 White Power over Ethernet (PoE)
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £208.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Offers 2.4GHz/5GHz/6GHz radios serving the density high-capacity needs of next generation mobility and IoT-enabled networks
- Supports a maximum throughput of 9.328 Gbps
- Provides a 5 Multigig Ethernet uplink port
- Can be deployed in three different modes through a single version of software, simplifying IT operations
- Supports 802.11be features, including MLO, OFDMA, DL MU-MIMO, UL MU-MIMO, 4096-QAM modulation, TWT, 512 Compressed Block Ack and more, for a highly reliable digital workplace
- Provides enhanced security with WPA3
- Supports 802.1ae MACsec in the uplink port
- Supported by the OmniVista Network Management System, which provides two robust deployment models: cloud-based or on premises.
- Can operate in a cluster architecture to provide simplified plug-and-play deployment for up to 255 APs
- Supports finely tuned quality of service (QoS) parameters to differentiate and provide appropriate QoS for each application such as voice, video and desktop sharing
- Uses RDA technology to automatically assign channels (DFS) and power settings (TPC) and ensure that access points stay clear of all radio frequency interference (RFI) sources to deliver reliable, high-performance WLAN
OmniAccess Stellar Outdoor AP1561. Tri radio, Tri band 2.4/5/6GHz 2x2 Wi-Fi 7, integrated omni antenna. 1 x 2.5GE RJ-45 (PoE). AP mount to be ordered separately. Regulatory domain not for use in US, ME, Japan.
The Alcatel-Lucent OmniAccess Stellar 1561 uses Wi-Fi 7, leveraging the new spectrum 6GHz band and existing 2.4GHz and 6GHz bands simultaneously. The new Wi-Fi 7 standard 902.11be helps many industries increase performance over their networks.
The OmniAccess Stellar AP1561 is IP67-rated for harsh outdoor environments enabling simple and cost-effective deployments.
The outdoor AP is ready for 6GHz operations, supporting Automated Frequency Coordination (AFC). In some RF domains, the 6GHz band is not permitted in outdoor locations, so the radio is software configurable to operate in 6GHz or 5GHz.
Specifications
Features
| 2.4 GHz | Yes |
|---|---|
| 6 GHz | Yes |
| 5 GHz | Yes |
| Maximum Tx power (2.4 GHz) | 31.9 dBmW |
| Maximum Tx power (5 GHz) | 31 dBmW |
| Maximum Tx power (6 GHz) | 31.2 dBmW |
Security
| Security algorithms | WPA3, WPA2, WEP |
|---|---|
| Number of SSID supported | 16 |
Show all 29 specificationsShow fewer specifications
Protocols
| DHCP server | Yes |
|---|---|
| DHCP client | Yes |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
|---|
Power
| Power over Ethernet (PoE) | Yes |
|---|---|
| Power consumption (max) | 23.64 W |
Design
| Placement | Wall, Pole |
|---|---|
| Product colour | White |
| Reset button | Yes |
| LED indicators | Yes |
Antenna
| Antenna type | Internal |
|---|---|
| Antenna direction type | Omni-directional |
| Antenna gain level (max) | 8.2 dBi |
| Polarization | Dual polarization |
Weight & dimensions
| Width | 243 mm |
|---|---|
| Depth | 243 mm |
| Height | 85 mm |
| Weight | 2.5 kg |
Packaging content
| Quantity per pack | 1 pc(s) |
|---|
Operational conditions
| Operating relative humidity (H-H) | 10 - 90% |
|---|---|
| Operating temperature (T-T) | -40 - 65 °C |
| Storage temperature (T-T) | -40 - 85 °C |
