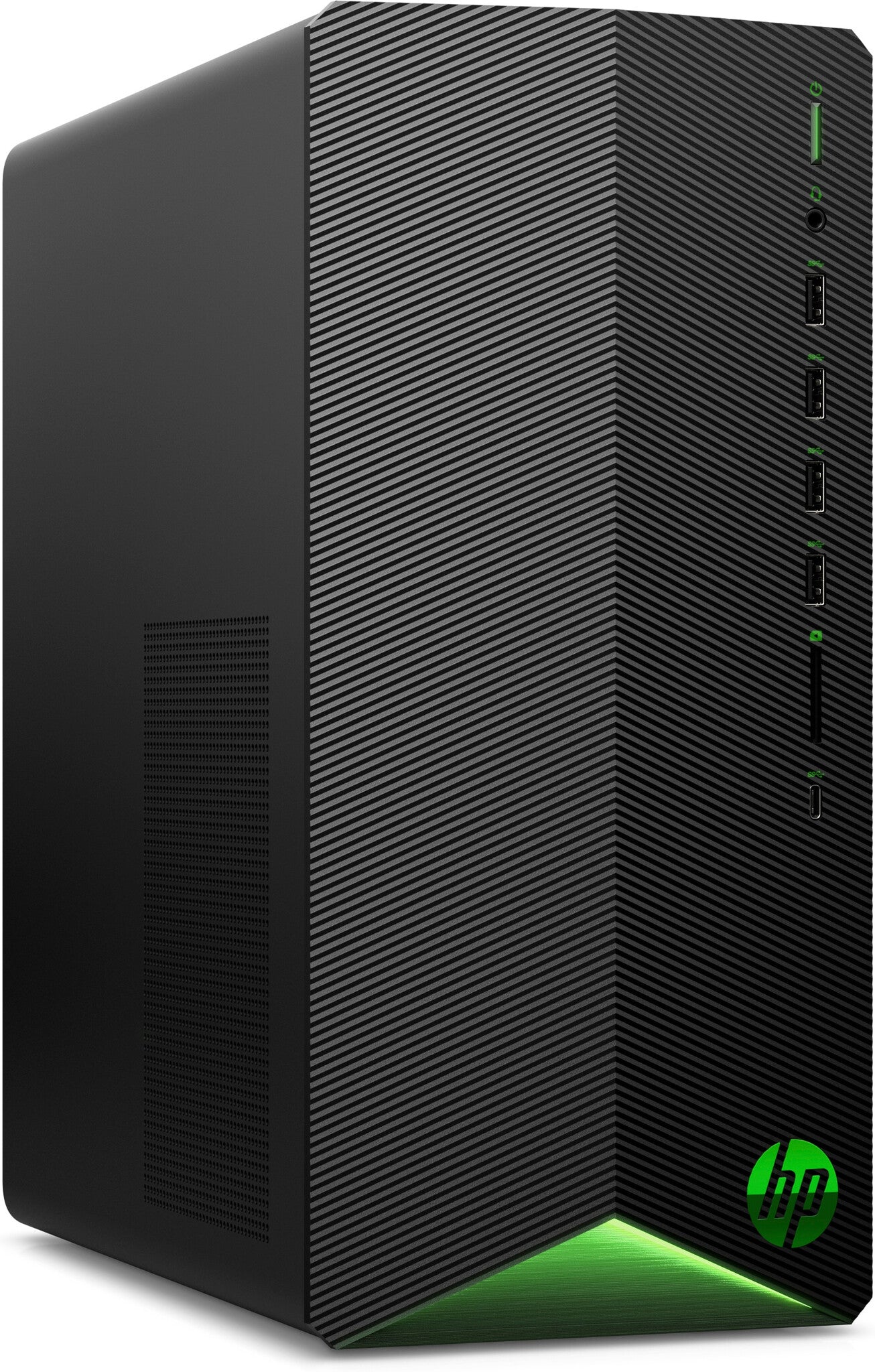

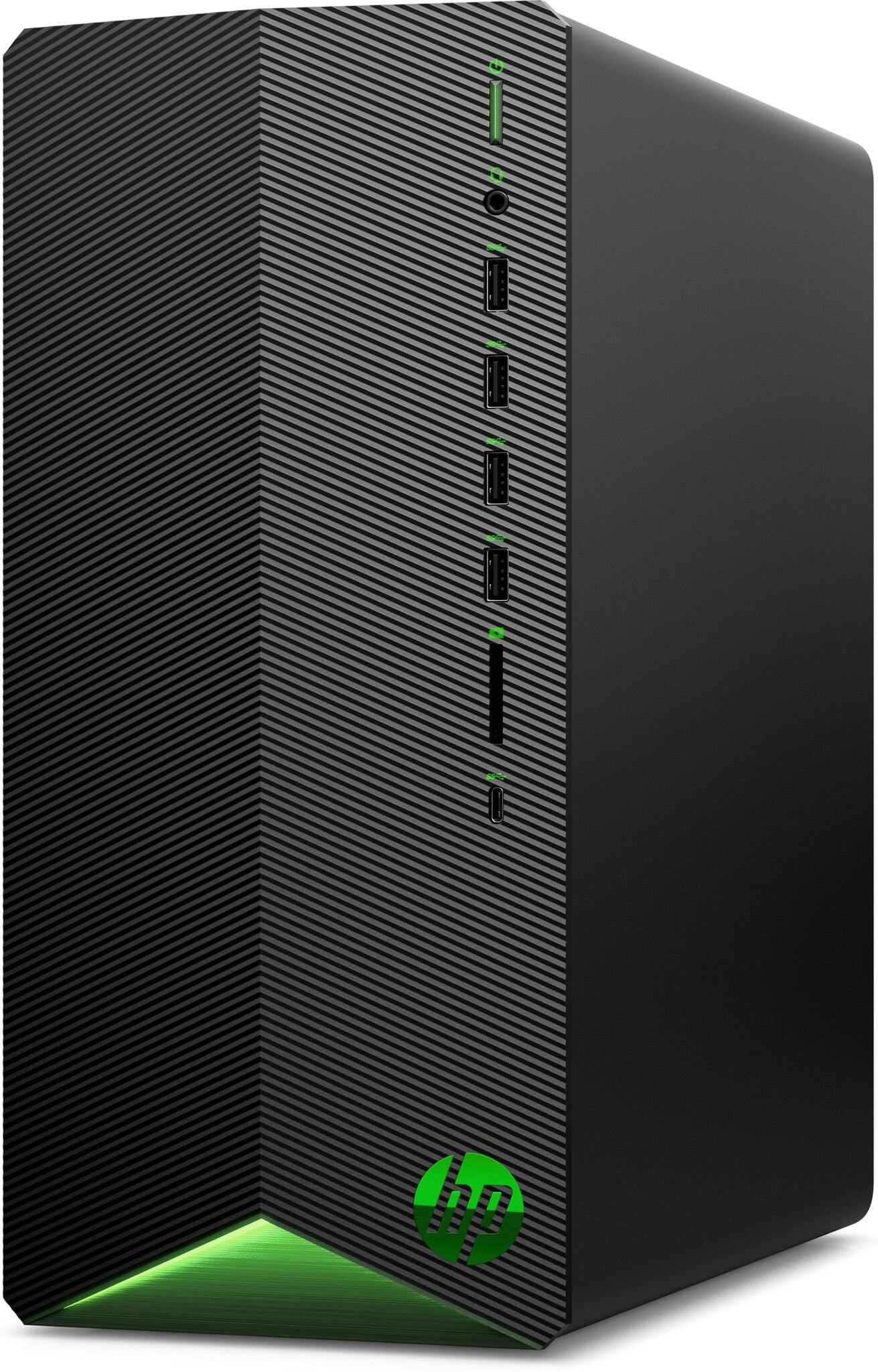

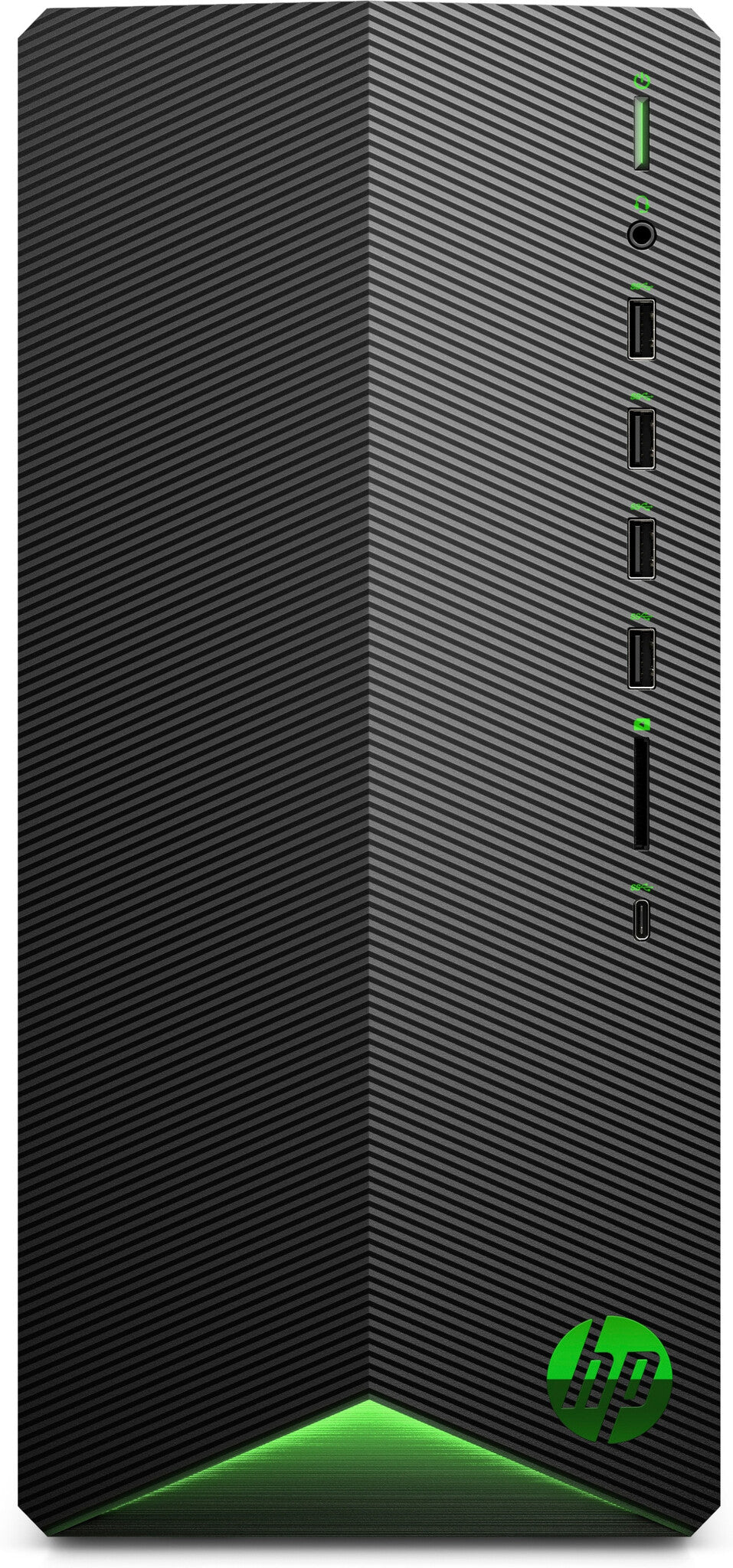

HP Pavilion Gaming TG01-1003na Intel® Core™ i5 i5-10400F 8 GB DDR4-SDR

HP

£959.99

Stock Available: 0

Product Information

Windows 10 Home 64-bit
Intel Core i5-10400F (12MB Cache, 2.9GHz)
NVIDIA GeForce GTX 1660 Ti (6GB GDDR6)
8GB (2666MHz) DDR4-SDRAM (1 x 8) & 1000GB HDD, 256GB SSD

Powerful. Upgradable. It's on.
Get ready to game on your terms. This powerful rig is built to keep up with the games of today and tomorrow. Beneath its compact and sleek exterior, you will find all the performance you need to play with confidence and room to expand and upgrade.

Product Specifications

Processor
Memory bandwidth supported by processor (max)	41.6 GB/s
Memory clock speeds supported by processor	2666 MHz
Memory types supported by processor	DDR4-SDRAM
Maximum internal memory supported by processor	128 GB
Number of processors installed	1
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
Tjunction	100 °C
Processor codename	Comet Lake
Thermal Design Power (TDP)	65 W
Processor lithography	14 nm
Processor operating modes	64-bit
System bus rate	8 GT/s
Processor cache type	L3
Processor cache	12 MB
Processor socket	LGA 1200 (Socket H5)
Processor frequency	2.9 GHz
Processor boost frequency	4.3 GHz
Processor threads	12
Processor cores	6
Processor model	i5-10400F
Processor generation	10th gen Intel® Core™ i5
Processor family	Intel® Core™ i5
Processor manufacturer	Intel

Memory
ECC	No
Memory clock speed	2666 MHz
Memory slots	2x DIMM
Memory layout (slots x size)	1 x 8 GB
Internal memory type	DDR4-SDRAM
Internal memory	8 GB

Storage
Card reader integrated	Yes
SSD form factor	M.2
SSD interface	PCI Express, NVMe
NVMe	Yes
SSD capacity	256 GB
Number of SSDs installed	1
Total SSDs capacity	256 GB
HDD speed	7200 RPM
HDD interface	SATA
HDD capacity	1 TB
Number of HDDs installed	1
Total HDDs capacity	1 TB
Number of storage drives installed	2
Storage media	HDD+SSD
Optical drive type	No
Total storage capacity	1.26 TB

Graphics
Graphics card DVI-D ports quantity	1
Graphics card HDMI ports quantity	1
Graphics card DisplayPorts quantity	1
On-board graphics card model	Not available
Discrete graphics memory type	GDDR6
Discrete graphics card memory	6 GB
Discrete graphics card model	NVIDIA® GeForce® GTX 1660 Ti
Discrete GPU manufacturer	NVIDIA
On-board graphics card	No
Discrete graphics card	Yes

Network
Bluetooth version	5.0
Bluetooth	Yes
Antenna type	2x2
WLAN controller model	Intel Wi-Fi 6 AX201
Wi-Fi standards	Wi-Fi 6 (802.11ax)
WLAN controller manufacturer	Intel
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN	Yes

Ports & interfaces
Combo headphone/mic port	Yes
Line-out	Yes
Line-in	Yes
Headphone outputs	1
Microphone in	Yes
Ethernet LAN (RJ-45) ports	1
USB Type-C DisplayPort Alternate Mode	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 2.0 ports quantity	4

Expansion slots
PCI Express x16 slots	1
PCI Express x1 slots	1

Design
Country of origin	China
Product colour	Black
Cable lock slot type	Kensington
Cable lock slot	Yes
Placement supported	Vertical
Chassis type	Mini Tower

Performance
Audio output channels	5.1 channels
Motherboard form factor	mini ITX
Motherboard chipset	Intel H470
Market positioning	Gaming
Product type	PC

Software
Bundled software	Dropbox
Trial software	McAfee LiveSafe, Microsoft Office 365
Pre-installed software	Alexa; Netflix; ExpressVPN; LastPass Premium
Operating system architecture	64-bit
Operating system installed	Windows 10 Home

Processor special features
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Turbo Boost Technology	2.0
Intel 64	Yes
Thermal Monitoring Technologies	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Embedded options available	No
Intel® Secure Key	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel® OS Guard	Yes
Idle States	Yes
Intel Stable Image Platform Program (SIPP)	No
Processor package size	37.5 x 37.5 mm
Intel Trusted Execution Technology	No
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Execute Disable Bit	Yes
Scalability	1S
CPU configuration (max)	1
Thermal solution specification	PCG 2015C
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Processor ARK ID	199278
Intel Virtualization Technology (VT-x)	Yes
Intel Software Guard Extensions (Intel SGX)	Yes

Brand-specific features
HP segment	Home
HP Software provided	HP Audio Switch
HP Support Assistant	Yes
HP OMEN Command Center	Yes

Power
Power supply	400 W

Weight & dimensions
Package weight	8.2 kg
Package height	287 mm
Package depth	400 mm
Package width	499 mm
Weight	5.96 kg
Height	337.4 mm
Depth	304 mm
Width	155.4 mm

Packaging content
Display included	No

General
Product family	Pavilion Gaming
Product series	TG01

HP Pavilion Gaming TG01-1003na Intel® Core™ i5 i5-10400F 8 GB DDR4-SDRAM 1.26 TB HDD+SSD NVIDIA® GeForce® GTX 1660 Ti Windows 10 Home Mini Tower PC Black
