HP EliteDesk 800 G6 Intel® Core™ i5 i5-10500 8 GB DDR4-SDRAM 256 GB SS

HP

£1,293.99

Stock Available: 0

Product Information

Intel® Core™ i5-10500 (3.1 GHz base frequency, up to 4.5 GHz with Intel® Turbo Boost Technology, 12 MB L3 cache, 6 cores)
Windows 10 Pro
Intel® UHD Graphics 630
8 GB memory; 256 GB SSD storage

Take on your most demanding projects

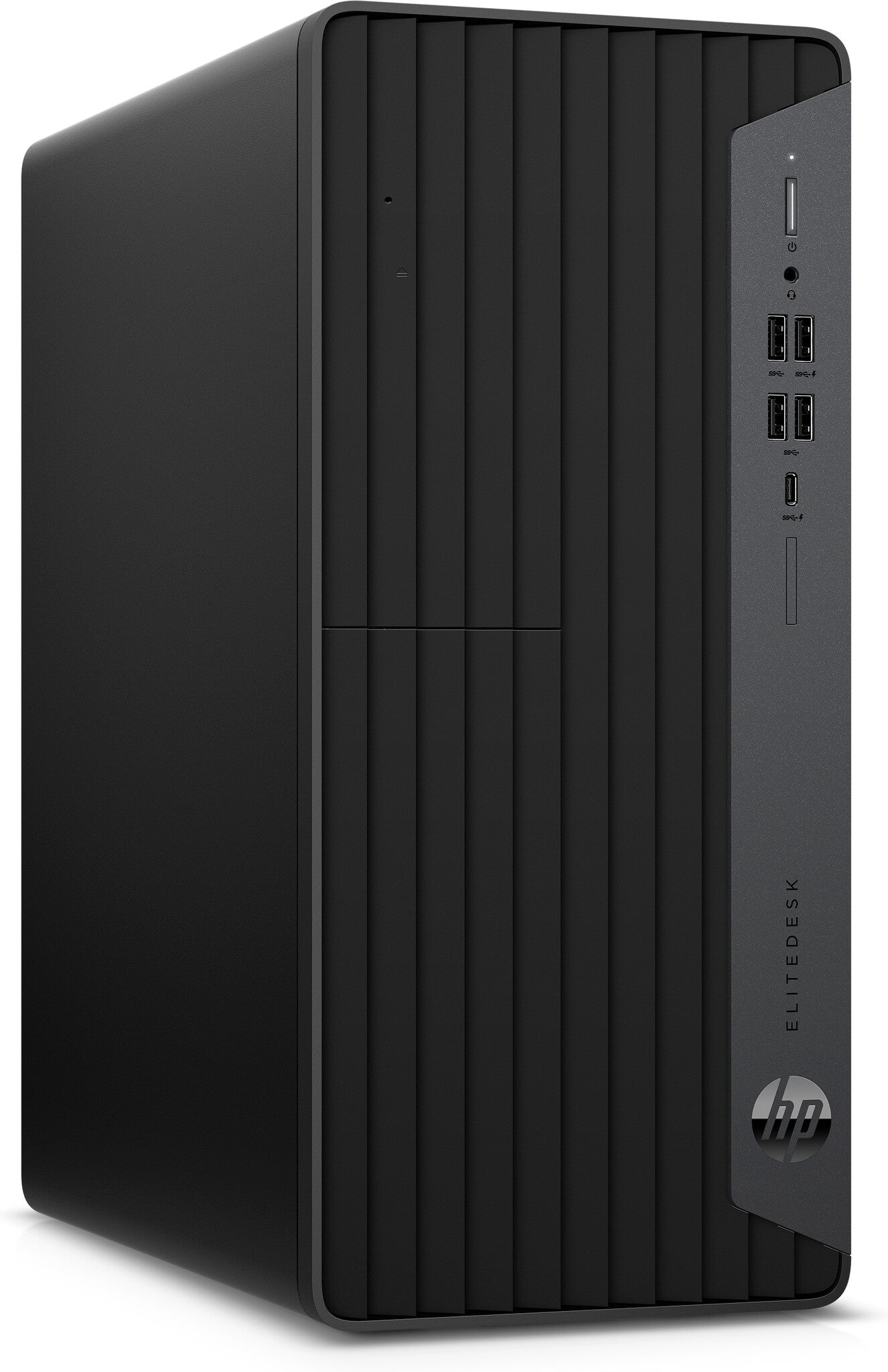

The redesigned HP EliteDesk 800 Tower is the new definition of performance and expandability in a business-class tower PC. Featuring powerful components, enormous expansion, and strong security, this PC handles your biggest enterprise workloads.

Product Specifications

Processor
Memory bandwidth supported by processor (max)	41.6 GB/s
Memory clock speeds supported by processor	2666 MHz
Memory types supported by processor	DDR4-SDRAM
Maximum internal memory supported by processor	128 GB
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
Tjunction	100 °C
Processor codename	Comet Lake
Thermal Design Power (TDP)	65 W
Processor lithography	14 nm
Processor operating modes	64-bit
System bus rate	8 GT/s
Processor cache type	L3
Processor cache	12 MB
Processor socket	LGA 1200 (Socket H5)
Processor frequency	3.1 GHz
Processor boost frequency	4.5 GHz
Processor threads	12
Processor cores	6
Processor model	i5-10500
Processor generation	10th gen Intel® Core™ i5
Processor family	Intel® Core™ i5
Processor manufacturer	Intel

Memory
ECC	No
Memory clock speed	2666 MHz
Memory slots	4x DIMM
Memory layout (slots x size)	1 x 8 GB
Internal memory type	DDR4-SDRAM
Maximum internal memory	128 GB
Internal memory	8 GB

Storage
Card reader integrated	No
SSD form factor	M.2
SSD interface	NVMe
NVMe	Yes
SSD capacity	256 GB
SSD memory type	TLC
Number of SSDs installed	1
Total SSDs capacity	256 GB
Storage media	SSD
Optical drive type	No
Total storage capacity	256 GB

Graphics
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.5
On-board graphics card ID	0x9BC8
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
Maximum on-board graphics card memory	64 GB
Number of displays supported (on-board graphics)	3
On-board graphics card model	Intel® UHD Graphics 630
On-board GPU manufacturer	Intel
Discrete graphics card model	Not available
On-board graphics card	Yes
Discrete graphics card	No

Network
Bluetooth version	5.0
Bluetooth	Yes
Antenna type	2x2
WLAN controller model	Intel Wi-Fi 6 AX201
Wi-Fi standards	Wi-Fi 6 (802.11ax)
WLAN controller manufacturer	Intel
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi	Yes
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN	Yes

Ports & interfaces
Combo headphone/mic port	Yes
Line-out	Yes
Headphone outputs	1
Microphone in	No
Ethernet LAN (RJ-45) ports	1
DisplayPort version	1.4
DisplayPorts quantity	2
DVI port	No
VGA (D-Sub) ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6

Expansion slots
PCI Express x16 (Gen 3.x) slots	2
PCI Express x1 (Gen 3.x) slots	2

Design
Product colour	Black
Colour name	Gravity Grey
Chassis type	Tower

Performance
Audio chip	Conexant CX20632
Motherboard chipset	Intel Q470
Market positioning	Business
Product type	PC

Software
Operating system architecture	64-bit
Operating system installed	Windows 10 Pro

Processor special features
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Turbo Boost Technology	2.0
Intel Clear Video Technology	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel 64	Yes
Thermal Monitoring Technologies	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Embedded options available	No
Intel® Secure Key	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel® OS Guard	Yes
Idle States	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Processor package size	37.5 x 37.5 mm
Intel Trusted Execution Technology	Yes
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Execute Disable Bit	Yes
Scalability	1S
CPU configuration (max)	1
Thermal solution specification	PCG 2015C
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Processor ARK ID	199277
Intel Virtualization Technology (VT-x)	Yes
Intel Software Guard Extensions (Intel SGX)	Yes

Brand-specific features
HP segment	Business
HP Management tools	HP BIOS Config Utility (download); HP Client Catalog (download); HP System Software Manager (download); HP Cloud Recovery; HP Management Integration Kit for Microsoft System Center Configuration Management Gen 4; HP Driver Packs; HP Image Assistant Gen 5
HP Support Assistant	Yes
HP JumpStart	Yes

Power
Power supply	550 W

Certificates
Low halogen	Yes

Sustainability
Sustainability certificates	ENERGY STAR
Sustainable technologies and materials	Low halogen

Weight & dimensions
Package weight	11.3 kg
Package height	517 mm
Package depth	478 mm
Package width	299 mm
Weight	9.86 kg
Height	168 mm
Depth	308 mm
Width	370 mm

Packaging content
Keyboard included	Yes
Keyboard connectivity	Wired
Mouse included	Yes
Display included	No

General
Product family	EliteDesk
Product series	800
