• Power Supply: VDD = 1.1V Typical
• VDDQ = 1.1V Typical
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC
• x72 ECC (x36, 2 independent I/O sub channels)
• 32 internal banks
• Hard/Soft Post Package Repair
• Sideband access with I3C/I2C
• PCB: Height 1.23” (31.25mm)
• RoHS Compliant and Halogen-Free

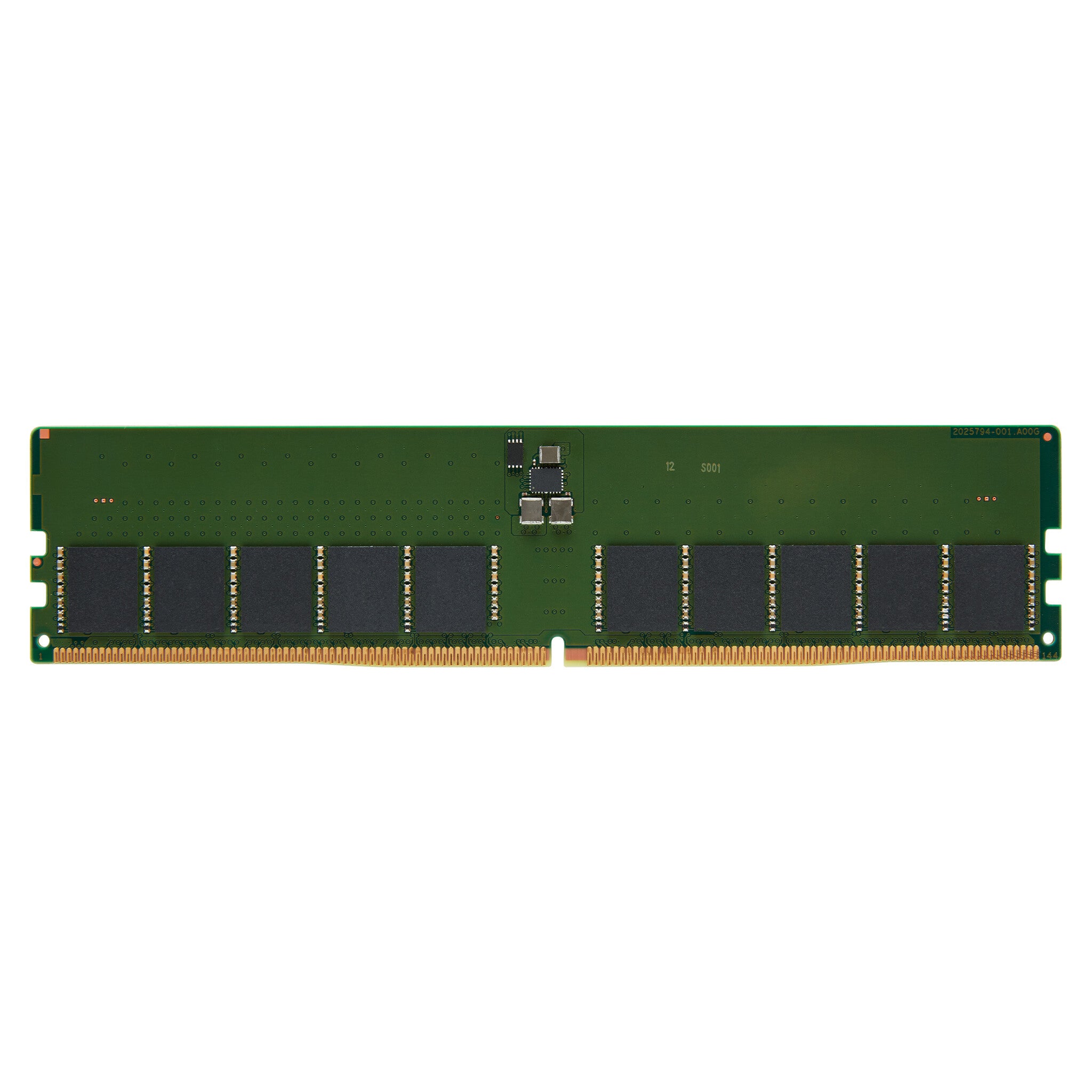

Kingston's KSM56E46BD8KM-32HA is a 4G x 72-bit (32GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module, based on twenty 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers.
