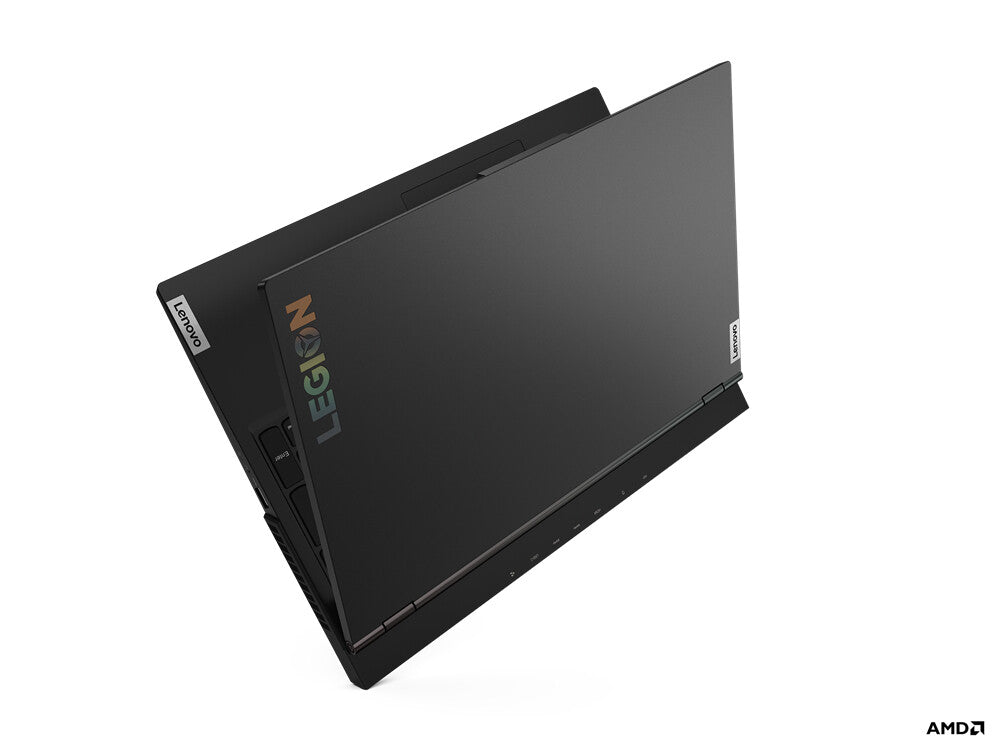

Lenovo Legion 5 15ARH05 AMD Ryzen™ 5 4600H Laptop 39.6 cm (15.6") Full HD 8 GB DDR4-SDRAM 256 GB SSD NVIDIA® GeForce® GTX 1650 Wi-Fi 6 (802.11ax) Windows 10 Home English Black
£839.99
Couldn't load pickup availability
- AMD Ryzen 5 4600H (6C/12T, 3.0/4.0GHz, 3MB L2/8MB L3)
- 15.6" FHD (1920x1080) IPS 250nits 120Hz 45% NTSC DC dimmer
- 1x 8GB SO-DIMM DDR4-3200
- 256GB SSD M.2 2280 PCIe 3.0x4 NVMe + Empty M.2 2280 PCIe 3.0x4 SSD Slot
- NVIDIA GeForce GTX 1650 4GB
- Windows 10 Home 64
Minimal meets mighty
Offering an abundance of performance options for any gamer in a clean, minimalist design, the Legion 5 Gen 5 (15" AMD) pairs solid AMD Ryzen 4000 series processors, NVIDIA® GeForce® graphics, and optional SSD hard drive, all thermally tuned via Legion Coldfront 2.0. Enjoy blindingly fast refresh rates on a 100% color accurate FHD display and quick controls with the TrueStrike keyboard to scream past competition.
| Design | |
|---|---|
| Market positioning | Gaming |
| Housing material | Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| Form factor | Clamshell |
| Colour name | Phantom Black |
| Product colour | Black |
| Product type | Laptop |
| Display | |
|---|---|
| Maximum refresh rate | 120 Hz |
| RGB colour space | NTSC |
| Colour gamut | 45% |
| Display brightness | 250 cd/m² |
| Anti-glare screen | Yes |
| Native aspect ratio | 16:9 |
| LED backlight | Yes |
| Panel type | WVA |
| HD type | Full HD |
| Touchscreen | No |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 39.6 cm (15.6") |
| Processor | |
|---|---|
| Processor cache | 8 MB |
| Processor frequency | 3 GHz |
| Processor boost frequency | 4 GHz |
| Processor cores | 6 |
| Processor model | 4600H |
| Processor generation | AMD Ryzen 4000 Series |
| Processor family | AMD Ryzen™ 5 |
| Processor manufacturer | AMD |
| Memory | |
|---|---|
| Maximum internal memory | 32 GB |
| Memory slots | 2x SO-DIMM |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory clock speed | 3200 MHz |
| Memory form factor | SO-DIMM |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 8 GB |
| Storage | |
|---|---|
| Card reader integrated | No |
| Optical drive type | No |
| SSD form factor | M.2 |
| SSD interface | NVMe, PCI Express |
| NVMe | Yes |
| SSD capacity | 256 GB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 256 GB |
| Storage media | SSD |
| Total storage capacity | 256 GB |
| Graphics | |
|---|---|
| On-board graphics card model | AMD Radeon Graphics |
| On-board GPU manufacturer | AMD |
| Discrete graphics memory type | GDDR6 |
| Discrete graphics card memory | 4 GB |
| Discrete graphics card model | NVIDIA® GeForce® GTX 1650 |
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Audio | |
|---|---|
| Built-in microphone | Yes |
| Number of microphones | 2 |
| Built-in subwoofer | No |
| Speaker power | 2 W |
| Number of built-in speakers | 2 |
| Audio system | Dolby Atmos |
| Audio chip | Realtek ALC3287 |
| Camera | |
|---|---|
| Privacy type | Privacy shutter |
| Privacy camera | Yes |
| Front camera resolution | 1280 x 720 pixels |
| Front camera HD type | HD |
| Front camera resolution (numeric) | 1 MP |
| Front camera | Yes |
| Network | |
|---|---|
| WWAN | Not installed |
| Bluetooth version | 5.0 |
| Bluetooth | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Antenna type | 2x2 |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Mobile network connection | No |
| Ports & interfaces | |
|---|---|
| USB Sleep-and-Charge ports | 1 |
| USB Sleep-and-Charge | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Combo headphone/mic port | Yes |
| HDMI version | 2.0 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Performance | |
|---|---|
| Motherboard chipset | AMD SoC |
| Keyboard | |
|---|---|
| Keyboard backlit colour | White |
| Numeric keypad | Yes |
| Keyboard backlit | Yes |
| Keyboard language | English |
| Pointing device | Touchpad |
| Software | |
|---|---|
| Trial software | Office |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 10 Home |
| Battery | |
|---|---|
| Fast charging | Yes |
| Battery life (max) | 9.3 h |
| Battery capacity | 80 Wh |
| Battery technology | Lithium Polymer (LiPo) |
| Power | |
|---|---|
| USB Power Delivery (USB PD) | No |
| DC-in jack | Yes |
| AC adapter power | 170 W |
| Security | |
|---|---|
| Password protection type | HDD, Power on, Supervisor |
| Password protection | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Fingerprint reader | No |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Certificates | |
|---|---|
| Certification | ErP lot3 |
| Compliance certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Height (rear) | 2.4 cm |
| Height (front) | 2.2 cm |
| Depth | 259.6 mm |
| Width | 363.1 mm |
| Weight | 2.3 kg |
| Packaging data | |
|---|---|
| Package weight | 4.5 kg |
| Package height | 154 mm |
| Package depth | 447 mm |
| Package width | 367 mm |
| General | |
|---|---|
| Product family | Legion |
| Product series | 5 |
| Packaging content | |
|---|---|
| AC adapter included | Yes |
