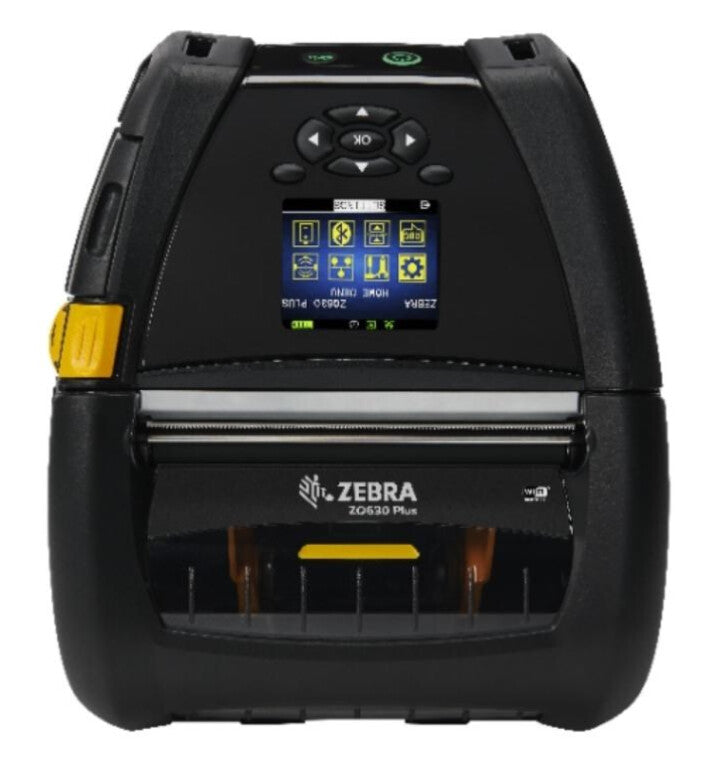

Zebra ZQ630 Plus label printer Direct thermal 203 x 203 DPI 115 mm/sec Wired & Wireless Wi-Fi Bluetooth
£1,169.99
Couldn't load pickup availability
- Direct thermal
- 203 x 203 DPI
- Maximum printing width: 10.4 cm Print speed: 115 mm/sec
- Built-in barcodes: 2D, AZTECCODE, CODABAR (NW-7), Code 128 (A/B/C), Code 93, Data Matrix, EAN128, EAN13, EAN8, GS1 DataBar, Interleaved 2/5, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC39, UPC-A, UPC-E
- Connectivity technology: Wired & Wireless
- USB port Wi-Fi Bluetooth 5.3
- Display: LCD 288 x 240 pixels Colour display
- 1.1 kg
The ZQ630 Plus premium mobile printer offers the fastest, most dependable wireless connections inside the four walls - with support for 802.11ax Wi-Fi 6 and Bluetooth 5.
While the ZQ630 Plus is lightweight and comfortable to wear all shift long, it is loaded with features that give it long-lasting durability, including over-molding, a tempered-glass display and seamless one-piece design.
| Printing | |
|---|---|
| Print technology | Direct thermal |
| Colour | No |
| Maximum resolution | 203 x 203 DPI |
| Print speed | 115 mm/sec |
| Maximum printing width | 10.4 cm |
| Minimum print length | 1.27 cm |
| Vertical printing | Yes |
| Paper handling | |
|---|---|
| Maximum roll diameter | 6.6 cm |
| Maximum label width | 10.4 cm |
| Media thickness | 2.3, 5.5, 6.5 mm |
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired & Wireless |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| USB port | Yes |
| Performance | |
|---|---|
| Page description languages | CPCL-native, EPL, ZBI, ZPL |
| Internal memory | 256 MB |
| Flash memory | 512 MB |
| Built-in barcodes | 2D, AZTECCODE, CODABAR (NW-7), Code 128 (A/B/C), Code 93, Data Matrix, EAN128, EAN13, EAN8, GS1 DataBar, Interleaved 2/5, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC39, UPC-A, UPC-E |
| Built-in processor | Yes |
| Number of fonts | 26 |
| Security algorithms | 802.1x RADIUS, AES, EAP-FAST, EAP-TLS, EAP-TTLS, LEAP, PEAP, TKIP, WEP, WPA, WPA2 |
| Certification | FCC Part 15, Subpart B, EN55022 Class-B, EN60950, EN55024 and VCCI class B, EN55024, EN61000-4-2, EN61000-4-3, EN61000-4-4, and EN61000-4-5, CE, TUV, CSA, Made for iPod/iPhone/iPad |
| Design | |
|---|---|
| Product colour | Black |
| Built-in display | Yes |
| Display | LCD |
| Display resolution | 288 x 240 pixels |
| Colour display | Yes |
| Power | |
|---|---|
| Battery type | Built-in battery |
| Number of batteries supported | 1 |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 6600 mAh |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
|---|---|
| Width | 165.1 mm |
| Depth | 186.7 mm |
| Height | 82.5 mm |
| Weight | 1.1 kg |
