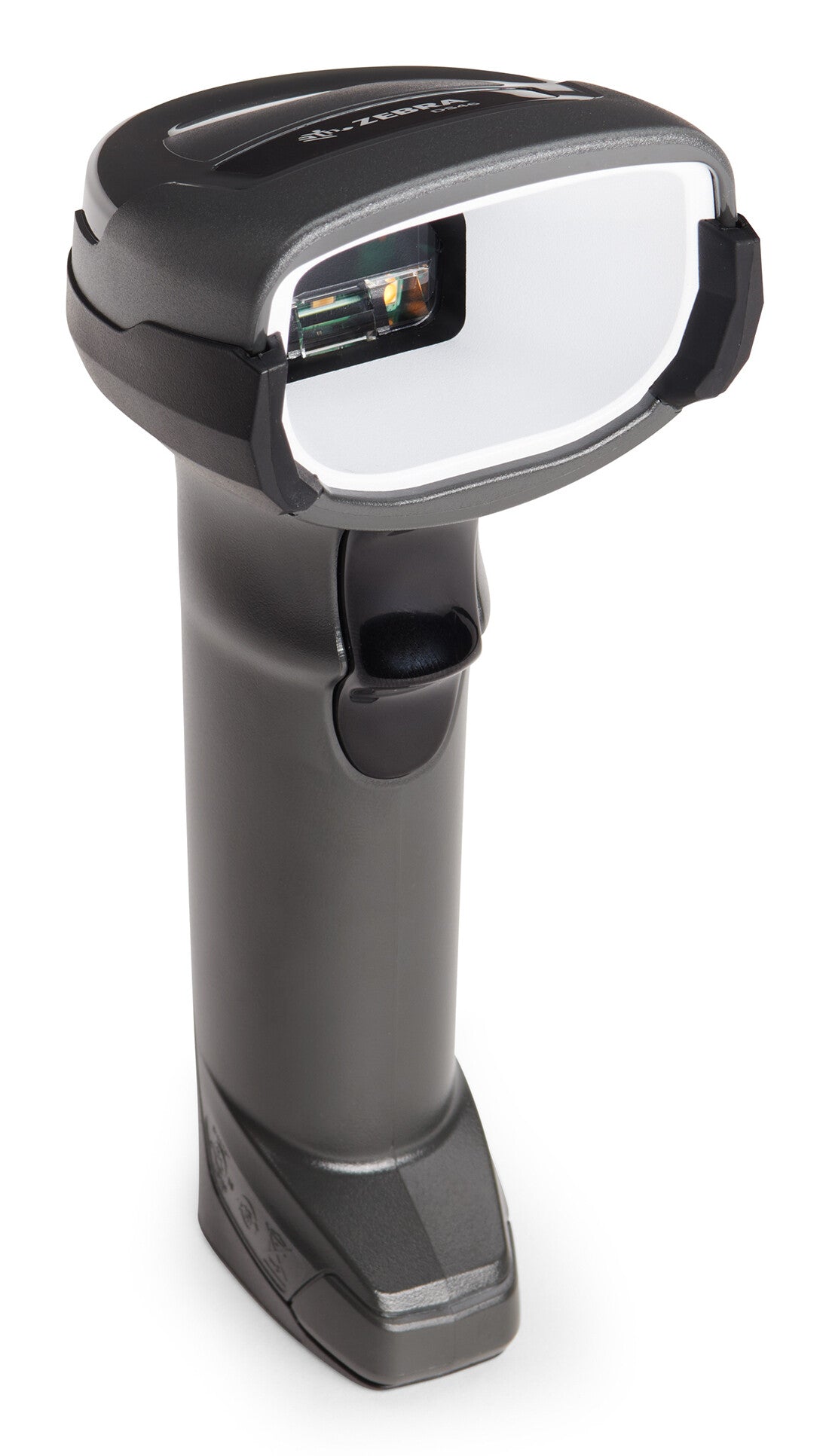

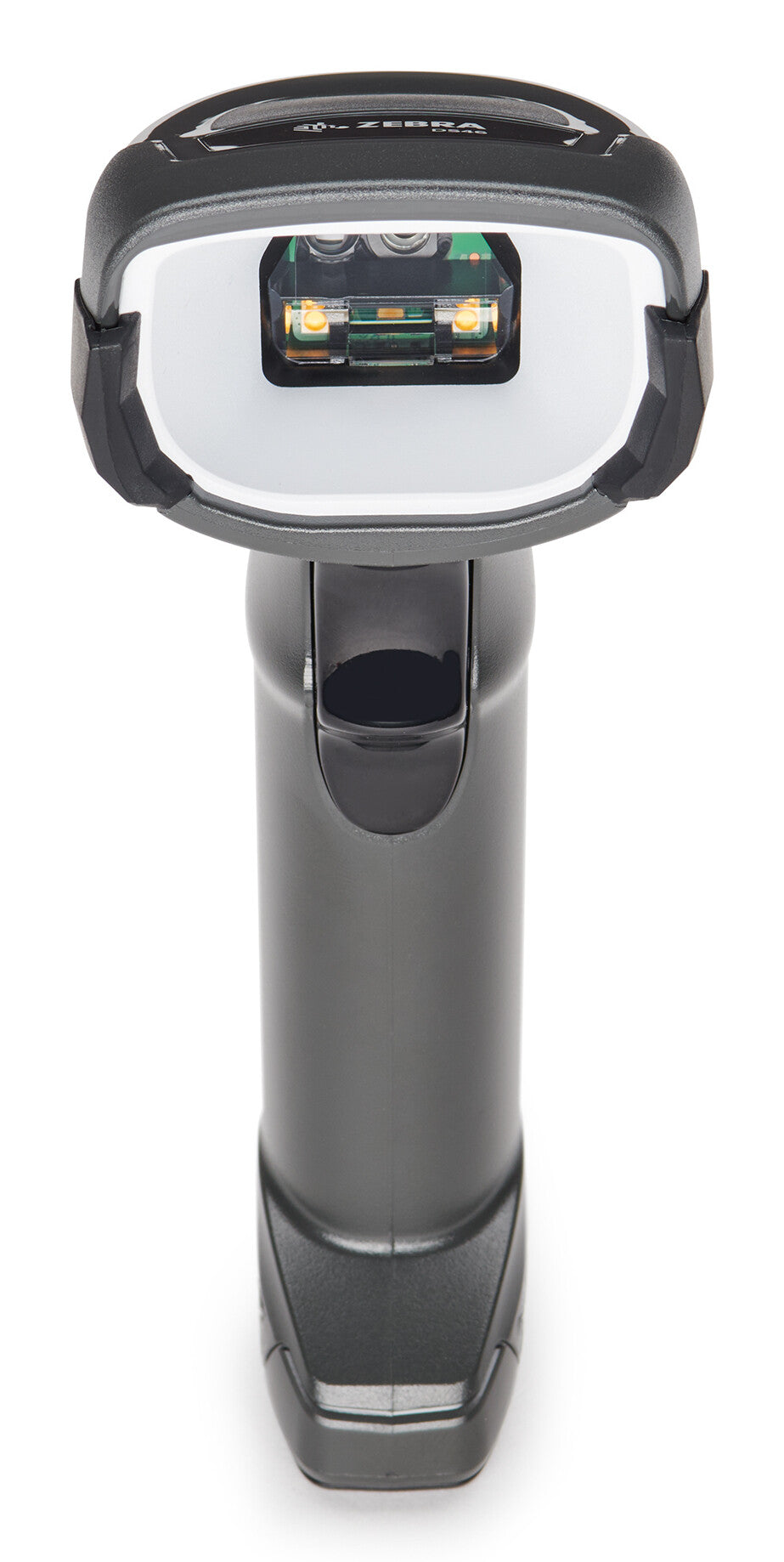

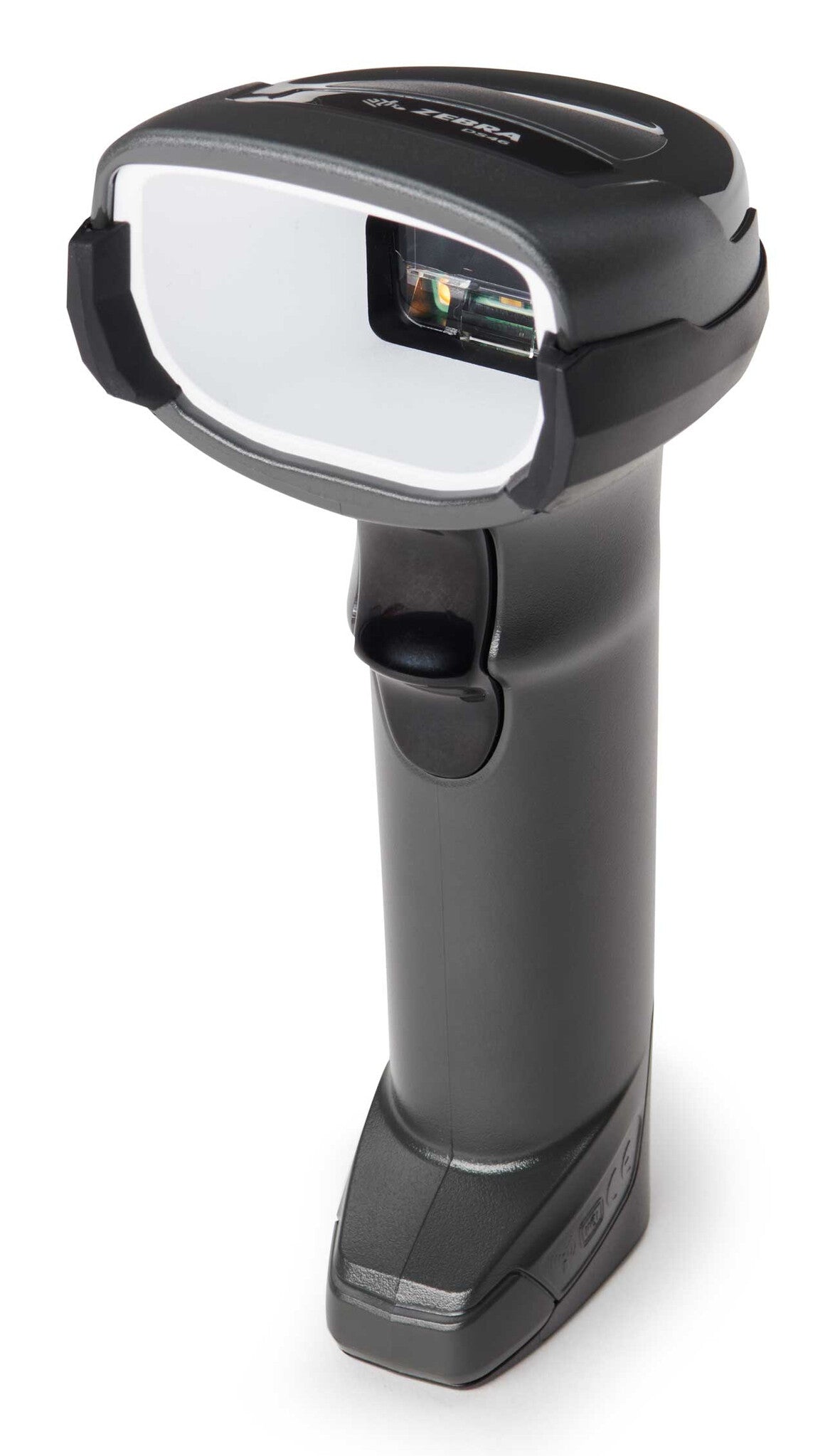

Zebra DS4678-DPE Handheld Scanner
£301.99
Couldn't load pickup availability
- Scan Type: 2D, 1D
- Image Sensor: 1280x800 pixels
- Scan Range: High Density, Direct Part Marks
- Corded/Cordless: Cordless
- Battery Capacity: 13 hours (2,500 mAh)
The cordless DS4678-DPE is purpose built to capture whatever type of barcodes are found in your electronics manufacturing operations-from laser etched direct part marks, high density and low contrast codes, to 4-inch wide barcodes. It's battery delivers more than 50,000 scans in a single charge.
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Scanner type | 1D/2D |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, EAN 128, EAN 2, EAN 5, EAN-13, EAN-8, GS1 DataBar, MSI-Plessey, U.P.C., UPC-A, UPC-E, UPC-E0, UPC-E1 |
| Sensor type | LED |
| Optical sensor resolution (W x H) | 1280 x 800 pixels |
| Horizontal field of view | 31.6° |
| Vertical field of view | 22.6° |
| Light levels (direct sunlight) | 0 - 107000 lx |
| Tilt reading angle | 0 - 360° |
| Pitch reading angle | -60 - 60° |
| Yaw reading angle | -60 - 60° |
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wireless |
| Standard interfaces | Bluetooth |
| Bluetooth Low Energy (BLE) | Yes |
| Bluetooth version | 5.2 |
| Performance | |
|---|---|
| Product colour | Black |
| International Protection (IP) code | IP52 |
| LED indicators | Yes |
| Image formats supported | BMP, JPEG, TIFF |
| Built-in processor | Yes |
| Processor frequency | 800 MHz |
| Vibration function | Yes |
| Power | |
|---|---|
| Power source type | Battery |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 2500 mAh |
| Number of reads per charge | 50000 |
| Charging time | 2.25 h |
| Weight & dimensions | |
|---|---|
| Width | 66 mm |
| Depth | 107 mm |
| Height | 168 mm |
| Weight | 225 g |
| Operational conditions | |
|---|---|
| Drop resistance | 1.8 m |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Technical details | |
|---|---|
| Warranty period | 3 year(s) |
| Compliance certificates | Federal Communications Commission (FCC), Trade Agreements Act (TAA) |
