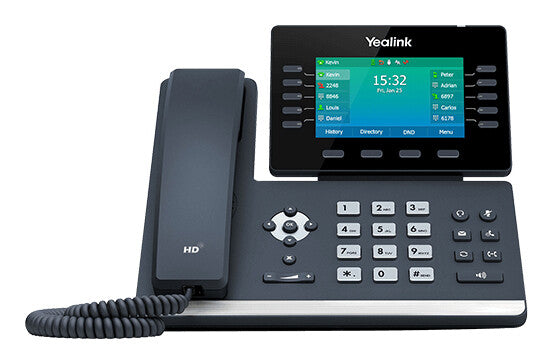

Yealink SIP-T54W IP phone Black 10 lines LCD Wi-Fi
Couldn't load pickup availability
Adjustable High-Resolution Display
Aligning with a fully adjustable display, the T5 Business Phone Series can easily fulfill the viewing needs at a variety of angles and under a variety of lighting conditions and finally provides optimized user experience.
Acoustic Shield technology
The Yealink T5 Business Phone Series is designed with Yealink Acoustic Shield technology to deliver distraction-free voice clarity for remote participants by utilizing multiple microphones to create a virtual shield.
Corded Cordless Phone
The Yealink New T5 Business Phone Series supports DECT handset compatibility via a DECT dongle Yealink DD10K, up to 4 cordless handsets. Seamless switching of calls between the desktop phone and the cordless DECT handset.
Advanced Wireless Connectivity
Built-in Bluetooth 4.2 for wireless headsets connection and enhanced mobility. Wi-Fi 2.4G/5G to help business maximize the use of wireless network, reduce internet cable cost and support clean and uncluttered workspace communications.
| Design | |
|---|---|
| Wall mountable | Yes |
| Mounting | Desk/Wall |
| Device lock | Yes |
| Product colour | Black |
| Handset type | Wired handset |
| Product type | IP Phone |
| Performance | |
|---|---|
| Dual-Tone Multi-Frequency (DTMF) modes | In-band, Out-of band, SIP info |
| Phone features | |
|---|---|
| Call transfer | Yes |
| Phonebook capacity | 1000 entries |
| Anonymous call | Yes |
| Anonymous call rejection | Yes |
| Short Message Service (SMS) | Yes |
| Phonebook sharing | Yes |
| Full duplex | Yes |
| Emergency call | Yes |
| Direct call | Yes |
| Number of VoIP accounts | 16 |
| Call park | Yes |
| Call return | Yes |
| Call history | Yes |
| Caller ID | Yes |
| Call waiting | Yes |
| Speed dialling | Yes |
| Call hold | Yes |
| Call forwarding | Yes |
| Conference call | Yes |
| Redialing | Yes |
| Do not disturb function | Yes |
| Call pick up | Yes |
| Answering machine | Yes |
| Lines quantity | 10 lines |
| Management features | |
|---|---|
| Number of programmable keys | 10 |
| Volume control | Buttons |
| Integrated voicemail | Yes |
| Display | |
|---|---|
| Backlight display | Yes |
| Touchscreen | No |
| Display resolution | 480 x 272 pixels |
| Display diagonal | 10.9 cm (4.3") |
| Display | LCD |
| Camera | |
|---|---|
| Front camera | No |
| Audio | |
|---|---|
| Voice activity detection | Yes |
| Adaptive jitter buffers | Yes |
| Comfort noise generation (CNG) | Yes |
| Packet loss concealment (PLC) | Yes |
| Automatic gain control | Yes |
| Voice codecs | G.722, G.723.1, G.726, G.729A, G.729B, OPUS, iLBC |
| Microphone mute | Yes |
| Speakerphone | Yes |
| Network | |
|---|---|
| Supported network protocols | FTP/TFTP/HTTP/HTTPS |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af |
| Security algorithms | AES, HTTPS, SIPS |
| Bluetooth version | 4.2 |
| Bluetooth | Yes |
| Maximum data transfer rate | 433 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| RJ-9 ports quantity | 2 |
| USB 2.0 ports quantity | 1 |
| Power | |
|---|---|
| Power consumption (Power over Ethernet (PoE)) | 5.5 W |
| Power consumption (typical) | 4.3 W |
| AC adapter output current | 2 A |
| AC adapter output voltage | 5 V |
| AC adapter input voltage | 100 - 240 V |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Weight & dimensions | |
|---|---|
| Height | 186.1 mm |
| Depth | 222.6 mm |
| Width | 233 mm |
| Packaging content | |
|---|---|
| Number of handles included | 1 pc(s) |
| Handset | Yes |
| Cables included | LAN (RJ-45) |
| Quick start guide | Yes |
| Ethernet cable | Yes |
| Stand included | Yes |
