£1,039.99

Stock Available: 0
  • Internal Ethernet allows for easy network connectivity
  • One step quick setup feature enables the ability to update, setup or clone configurations with a simple barcode scan
  • Designed for easy installation and use
  • All-metal construction and die-cast aluminum print mechanism helps it to withstand fast-paced production environments
  • Color LCD touch screen facilitates fast configuration and enhanced print quality
  • Multiple standard connectivity options make installation simple
  • "Thermal Smart Control" tracks and precisely calculates the duration that each pixel needs to be heated to provide accurate, crisp and clear labels every time
  • Improves productivity and efficiency
  • Print speed of up to 10 inches per second at 203 DPI resolution
  • Easily prints labels featuring graphics and small text with 128 MB of SDRAM and 128 MB of Flash memory

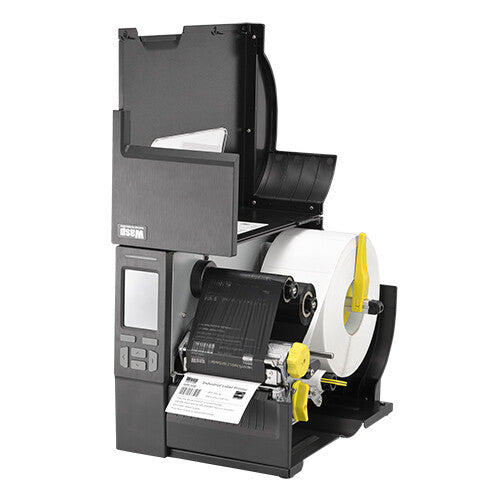

WPL408 Industrial Barcode Printer
The WPL408 industrial barcode printer is both versatile and easy to use with features such as direct thermal and thermal transfer printing as well as a color LCD touch screen for fast configuration and enhanced print quality. The WPL408 features "Thermal Smart Control" which tracks and precisely calculates the duration that each pixel needs to be heated to provide accurate, crisp and clear labels every time, whether printing one label at a time or thousands of labels in a batch.

Designed to grow with your evolving business needs, the WPL408 features ZPL, ZPL II, EPL, and WPL emulation to ensure application compatibility and flexibility as well as a print speed of up to 10 inches per second at 203 DPI resolution supported by 128 MB of SDRAM and 128 MB of Flash memory. The WPL408 also features standard connectivity options that include RS-232, USB 2.0, Internal Ethernet (10/100 Mbps), USB host (for scanner or PC keyboard) and an optional slot-in 802.11 a/b/g/n wireless module kit.

Printing
Minimum print length 2.54 cm
Maximum printing width 10.8 cm
Printing colours Black
Print speed 254 mm/sec
Number of printable dots 8 dot
Colour No
Print technology Direct thermal / Thermal transfer
Paper handling
Media thickness 0.06 - 0.28 mm
Maximum label width 20.3 cm
Core diameter 7.62 cm
Ribbon length 450 m
Ribbon width 11 cm
Ports & interfaces
RS-232 ports 1
USB 2.0 ports quantity 1
USB port Yes
Wi-Fi No
Ethernet LAN Yes
Connectivity technology Wired
Performance
Certification RoHS, WEEE, FCC Class A, CE Class A, RCM Class A, cTUVus, CCC, BIS, TÜV, KC, BSMI, EAC, ENERGY STAR
Number of fonts 8
Built-in processor Yes
Built-in barcodes China post, Code 11, Code 128 (A/B/C), Code 39, Code 93, EAN128, EAN8, GS1 DataBar, MSI, MaxiCode, PLESSEY, POSTNET, QR Code, UPC-A, UPC-E
Flash memory 128 MB
Internal memory 128 MB
Page description languages EPL, ZPL, ZPL II
Design
Control type Buttons, Touch
Colour display Yes
Display diagonal 8.89 cm (3.5")
Display LCD
Built-in display Yes
Product colour Black
Power
AC adapter output current 3.75 A
AC adapter output voltage 24 V
AC input frequency 50 - 60 Hz
AC input voltage 100 - 240 V
Power consumption (printing) 90 W
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 60 °C
Storage relative humidity (H-H) 10 - 90%
Operating relative humidity (H-H) 25 - 85%
Weight & dimensions
Weight 9.2 kg
Height 247 mm
Depth 436 mm
Width 248 mm
Packaging data
Package type Box
Packaging content
Cables included USB
