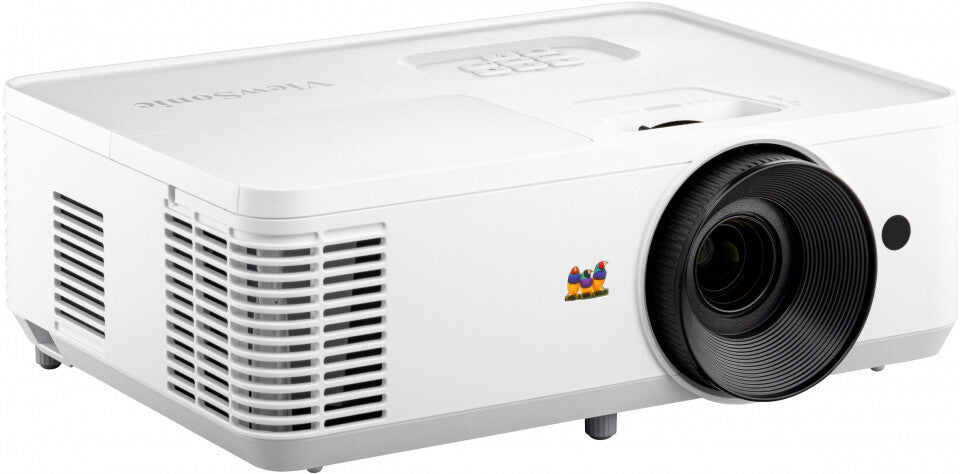

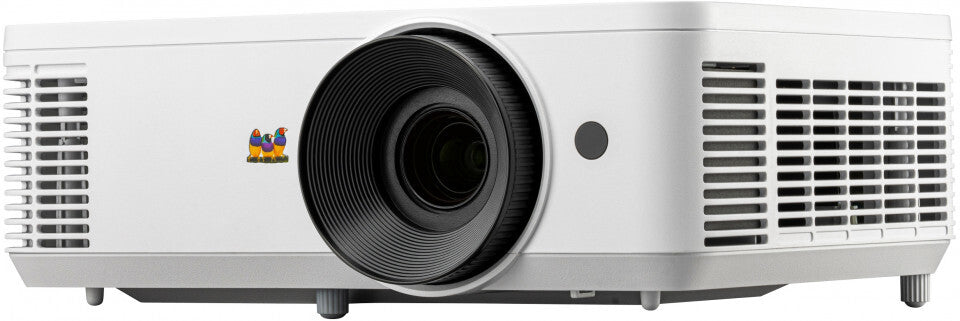

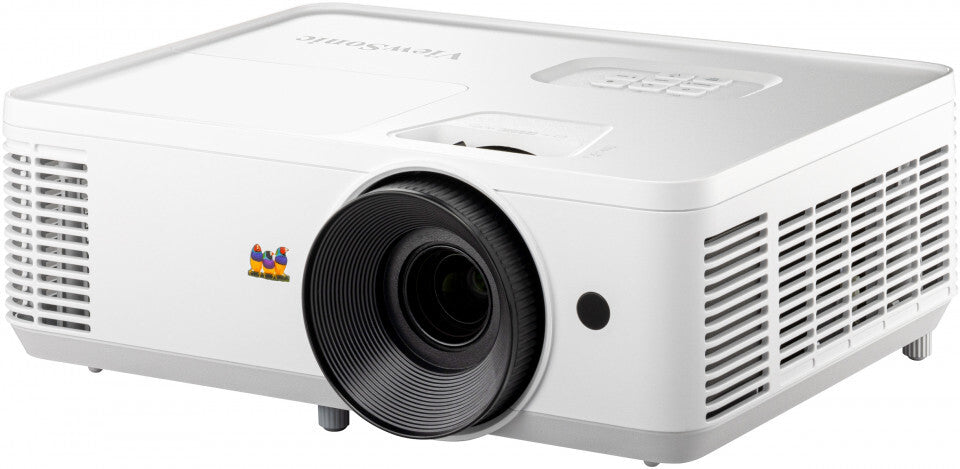

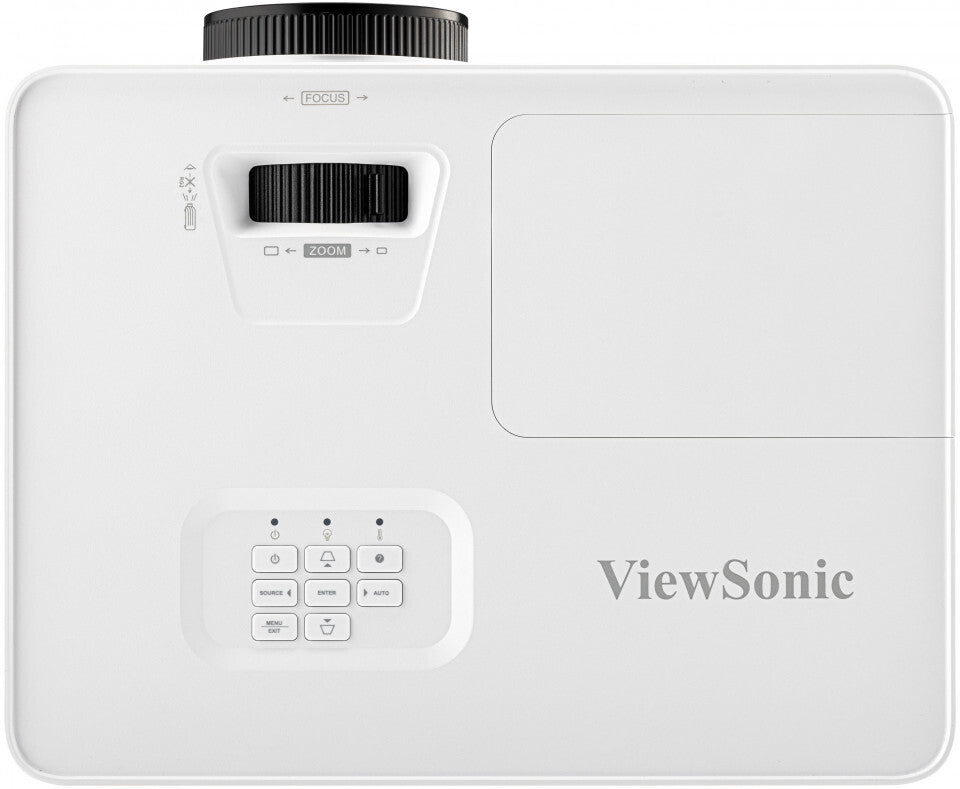

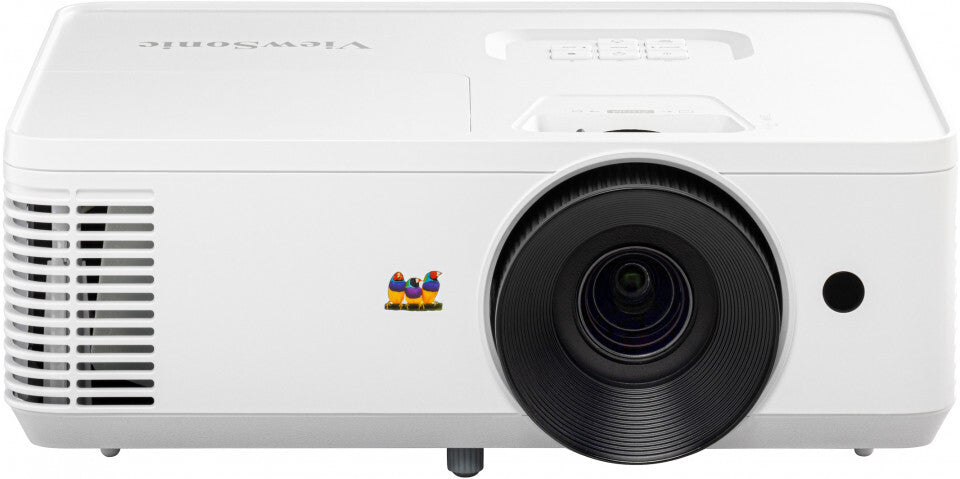

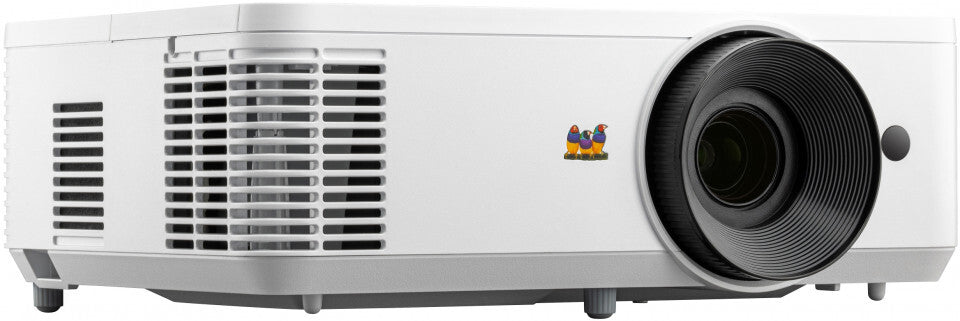

Viewsonic PA700S data projector Standard throw projector 4500 ANSI lumens SVGA (800x600) White
Couldn't load pickup availability
- 4,500 ANSI Lumens, offering clear images in any environment
- Up to 300" ultra large screen with lower cost-per-inch
- Easy and flexible connection: dual HDMI ports, USB Type-A port
- Vivid colors with ViewSonic's SuperColor™ Technology
- Convenient software updates for projectors via USB connection
The PA700S is ViewSonic’s high brightness SVGA business/education projector. With 4,500 ANSI Lumens of highbrightness, the projector offers clear images of up-to-300” large screen in meeting rooms, classrooms, or anyother bright environment. The dual HDMI ports allow you to flexibly connect to multiple devices, easily switchingbetween content sources. The USB Type-A port can supply power to HDMI wireless dongles, making wireless contentstreaming more convenient. The projector also allows software updates via USB cable connection with simply yourlaptops, skipping trips to service centers.
High Brightness for Business & Education Environments
Thanks to 4,500 ANSI Lumens brightness, you're guaranteed clear visuals of vibrancy, which areperfectly suitable for spaces with a lot of ambient light.
Ultra-Large Screen with Lower Cost-per-inch
The projector allows for an up-to-300” image size, which is much larger and easier to install thancommercial displays.

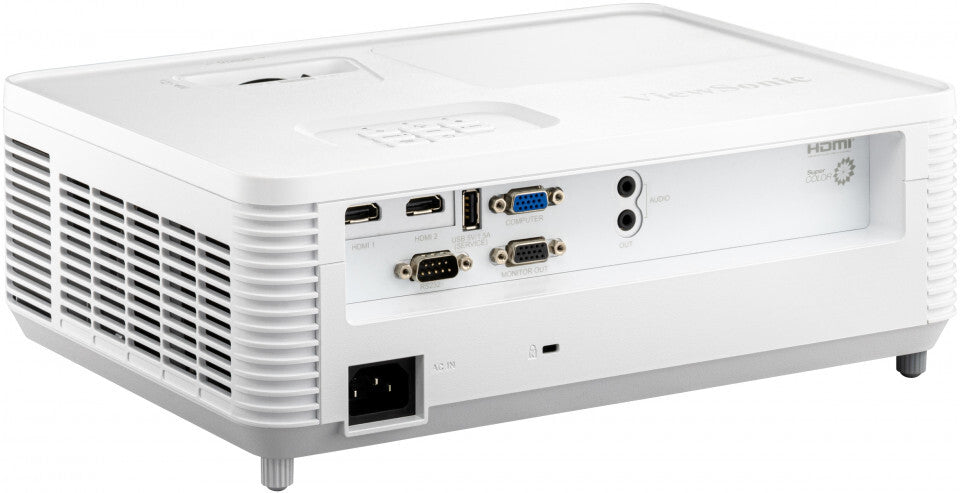

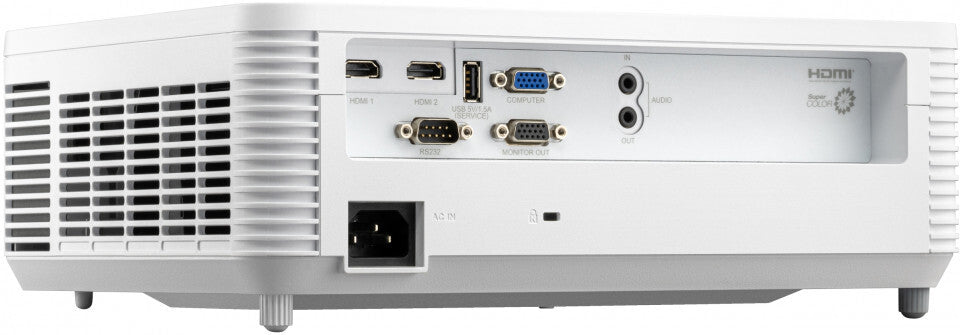

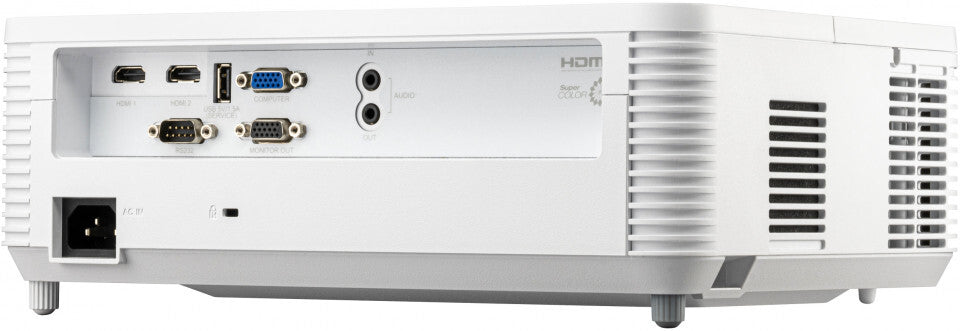

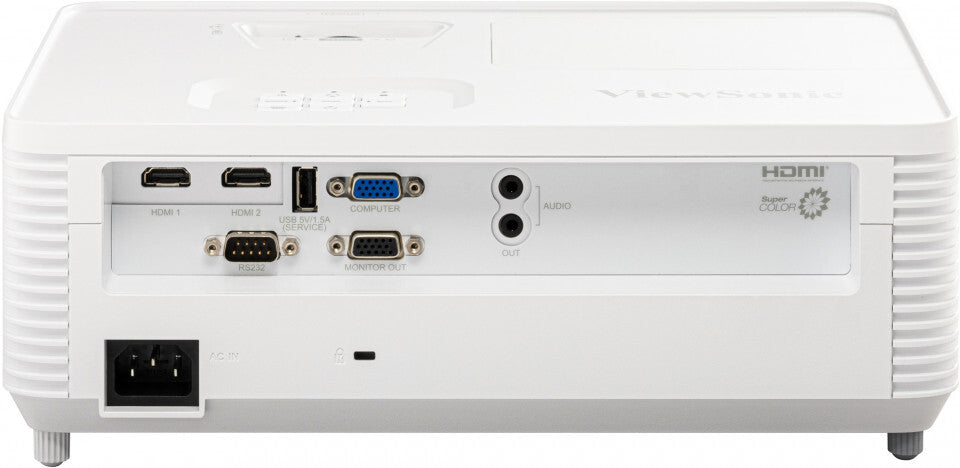

Easy and Flexible Connection
The dual HDMI ports offer ample connectivity to accommodate all your HDMI-enabled multimedia devices.You no longer have to unplug your existing device to switch to a new one. Simply use the on-screendisplay to select and change the input source.
Present the Best with Vibrant Colors
Impress any audience with ViewSonic’s exclusive color technology and elevate your presentationwith a true-to-life color experience.
A Simpler Way to Update Projector Software
Skip trips to the service center by keeping software up to date easily and onsite via USB cableconnection with your laptop.
*The latest projector softwareupdate can be found in the download section at the bottom of the page when available.
USB Type A Power Supply
A built-in 5V/1.5A USB power output can be used to supply power to HDMI wireless dongles, eliminatingthe need for separate power adapters when streaming your multimedia content.
| Projector | |
|---|---|
| Keystone correction, vertical | -40 - 40° |
| Horizontal scan range | 15 - 102 kHz |
| Vertical scan range | 23 - 120 Hz |
| Number of colours | 1.07 billion colours |
| Projection distance | 1.18 - 13.17 m |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Smart projector | No |
| Contrast ratio (typical) | 12500:1 |
| Projector native resolution | SVGA (800x600) |
| Projector brightness | 4500 ANSI lumens |
| Light source | |
|---|---|
| Lamps quantity | 1 lamp(s) |
| Lamp power | 240 W |
| Lamp type | UHP |
| Service life of light source (economic mode) | 12000 h |
| Service life of light source | 4000 h |
| Light source type | Lamp |
| Lens system | |
|---|---|
| Offset | 115% |
| Throw ratio | 1.94 - 2.16 |
| Optical zoom | 1.1x |
| Digital zoom | 2x |
| Zoom capability | Yes |
| Aperture range (F-F) | 2.42 - 2.53 |
| Focal length range | 21.85 - 24.01 mm |
| Focus | Manual |
| Video | |
|---|---|
| Supported graphics resolutions | 640 x 480 (VGA), 1920 x 1080 (HD 1080) |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| 3D | No |
| Full HD | Yes |
| Analog signal format system | NTSC, PAL, SECAM |

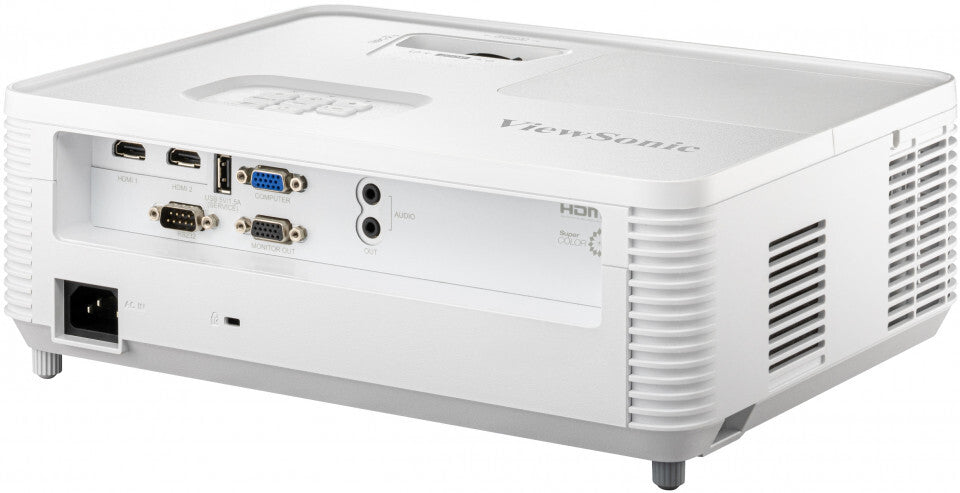

| Ports & interfaces | |
|---|---|
| AC (power) in | Yes |
| PC in (D-Sub) | Yes |
| PC Audio out | Yes |
| PC Audio in | Yes |
| Serial interface type | RS-232 |
| USB 2.0 Type-A ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| Service port type | USB Type-A |
| DVI port | No |
| HDMI version | 1.4 |
| HDMI connector type | Full-size |
| HDMI ports quantity | 2 |
| VGA (D-Sub) ports quantity | 2 |
| Network | |
|---|---|
| Wi-Fi | No |
| Ethernet LAN | No |
| Smart TV | No |
| Storage | |
|---|---|
| Card reader integrated | No |
| Features | |
|---|---|
| Air filter | Yes |
| HDCP version | 1.4 |
| Number of OSD languages | 22 |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Indonesian, Italian, Korean, Polish, Portuguese, Russian, Thai, Turkish, Vietnamese |
| On Screen Display (OSD) | Yes |
| HDCP | Yes |
| Noise level (economic mode) | 25 dB |
| Noise level | 34 dB |
| Interactive | No |
| Multimedia | |
|---|---|
| Number of built-in speakers | 1 |
| RMS rated power | 3 W |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| LED indicators | Yes |
| Product colour | White |
| Market positioning | Education |
| Product type | Standard throw projector |
| Display | |
|---|---|
| Built-in display | No |
| Power | |
|---|---|
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 295 W |
| Power source | AC |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Package weight | 3.8 kg |
| Package height | 337 mm |
| Package depth | 168 mm |
| Package width | 400 mm |
| Height | 115 mm |
| Depth | 234 mm |
| Width | 309 mm |
| Weight | 2.7 kg |
| Packaging content | |
|---|---|
| Warranty card | Yes |
| Cables included | AC, VGA |
| Quick start guide | Yes |
| Remote control type | IR |
| Remote control included | Yes |
| Technical details | |
|---|---|
| Image lag time | 33.2 ms |
| Logistics data | |
|---|---|
| Pallet gross length | 102 cm |
| Pallet gross width | 122 cm |
| Pallet gross height | 184.5 cm |
| Harmonized System (HS) code | 8528620000 |
| Products per master (outer) case | 1 pc(s) |
