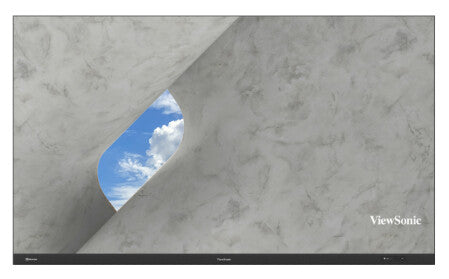

Viewsonic LDM136G-152 Signage Display Digital signage flat panel 3.45 m (136") LED 600 cd/m² Black
Couldn't load pickup availability
- GOB surface treatment for anti-collision, dust, and moisture
- protection, ideal for high-traffic, high-risk environments
- Smart power redundancy ensures continuous display
- performance with automatic backup switching
- All-in-One integration simplifies installation by combining
- power, control, image stitching, and display
- 136" seamless large screen with high brightness and dual 18W
- speakers for immersive visuals and audio
- Operating system-free architecture enhances security,
- minimizes attack risks, and eliminates software maintenance
The ViewSonic LDM136G-152 is a 136-inch All-in-One LED display designed for large corporate and education environments. With 600 nits of brightness, a 6,500:1 contrast ratio, and dual 18W speakers, it delivers sharp visuals and powerful audio for meetings, lectures, and presentations. Engineered with Glue-on-Board (GOB) surface treatment, the display offers enhanced durability against impact, dust, and moisture, achieving IP54 and IK06 ratings for added reliability in high-traffic areas. Smart power redundancy ensures uninterrupted performance by automatically switching to a backup power source when needed. All-in-One integration simplifies installation, allowing two people to complete setup in under two hours while minimizing labor and downtime. Its 34.4mm ultra-slim profile and 7mm bezels create a sleek, modern aesthetic that complements any space. With no built-in operating system, the LDM136G-152 reduces cybersecurity risks and eliminates ongoing software maintenance, making it a secure, low-maintenance solution for professional LED video wall installations.
| Display | |
|---|---|
| Display diagonal | 3.45 m (136") |
| Display technology | LED |
| LED backlighting type | Direct-LED |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 600 cd/m² |
| Contrast ratio (typical) | 6500:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 170° |
| Active display area (W x H) | 3000 x 1687.5 mm |
| Panel life | 100000 h |
| Vertical scan range | 56 - 85 Hz |
| Horizontal scan range | 31 - 94 kHz |
| Ports & interfaces | |
|---|---|
| HDMI ports quantity | 3 |
| HDMI input ports quantity | 2 |
| HDMI output ports quantity | 1 |
| USB port | Yes |
| USB ports quantity | 2 |
| USB version | 2.0 |
| USB connector type | USB Type-A |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Audio (L/R) out | 2 |
| RS-232 interface | Yes |
| Remote (IR) output | 1 |
| Audio | |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 36 W |
| Design | |
|---|---|
| Product design | Digital signage flat panel |
| Product colour | Black |
| Mounting type | Wall |
| Performance | |
|---|---|
| Purpose | Commercial |
| International Protection (IP) code | IP54 |
| Power | |
|---|---|
| Power consumption (typical) | 570 W |
| Input voltage | 100 - 240 V |
| Power consumption (max) | 1710 W |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
|---|---|
| Display width | 3012 mm |
| Display depth | 90.5 mm |
| Display height | 1773.4 mm |
| Display weight | 150 kg |
| Width (with stand) | 3012 mm |
| Depth (with stand) | 90.5 mm |
| Height (with stand) | 1773.4 mm |
| Packaging data | |
|---|---|
| Package width | 1990 mm |
| Package depth | 1220 mm |
| Package height | 880 mm |
| Package weight | 240 kg |
| Packaging content | |
|---|---|
| Remote control included | Yes |
| Remote control type | IR |
| Mounting kit | Yes |
| Cables included | Power |
