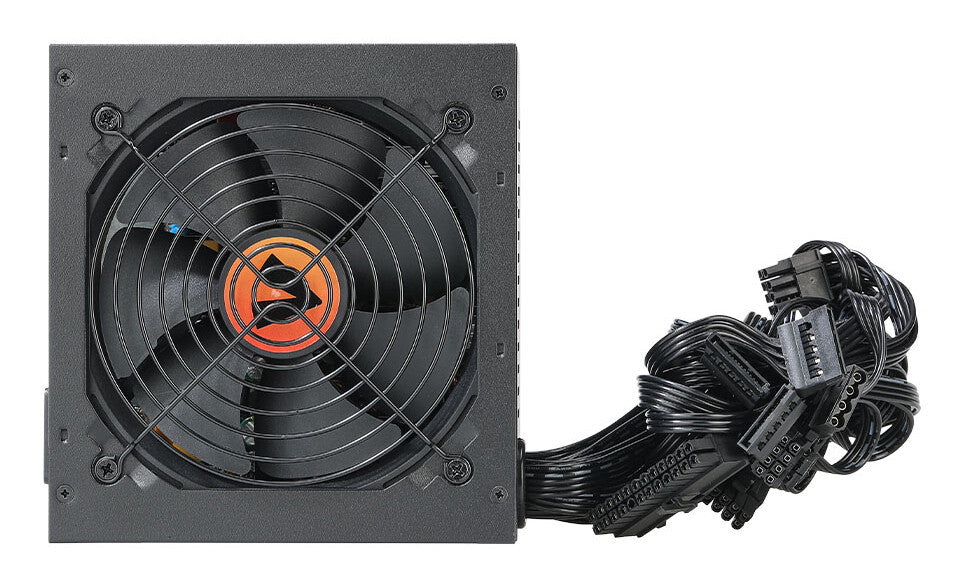

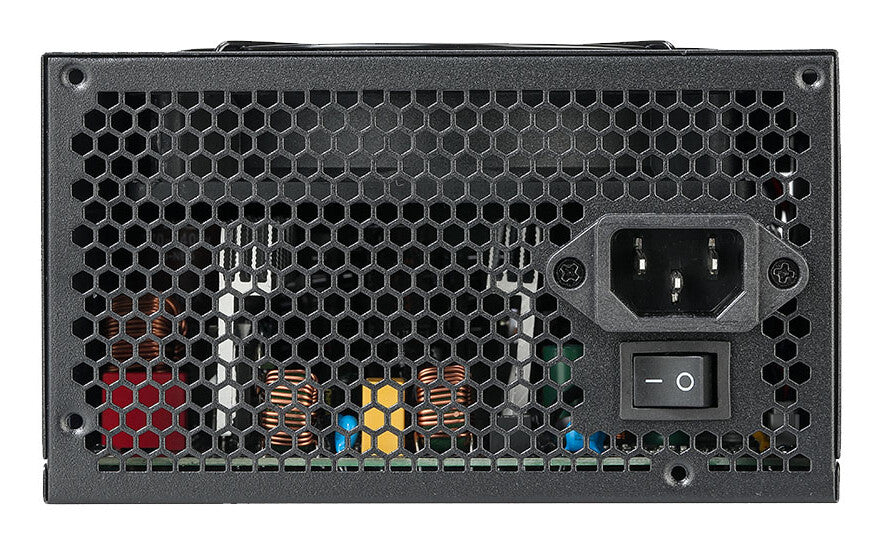

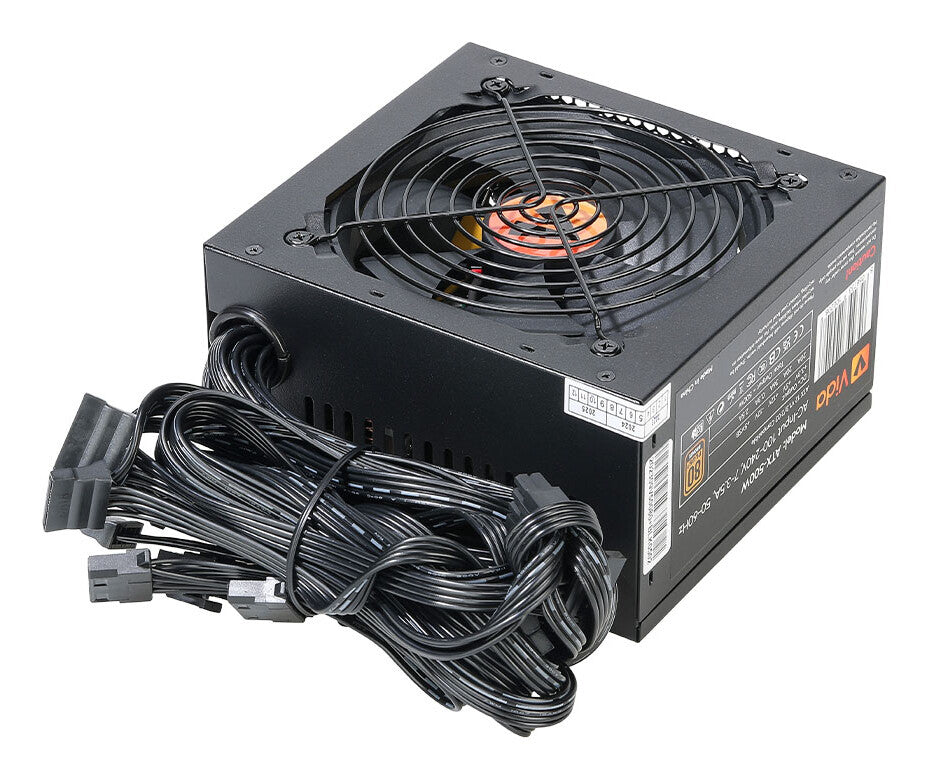

VIDA ATX-500W power supply unit 24-pin ATX Black
iFrame
£28.99
Couldn't load pickup availability
- 500 W 100 - 240 V 50/60 Hz
- Motherboard power connector: 24-pin ATX
- PC ATX 80 PLUS Bronze
- 12 cm
- Black
Elevate your PC's performance with the Vida 500W power supply (ATX-500W). Designed for ATX 12V compatibility, this fully wired unit delivers 500 watts of reliable power. Equipped with essential connectors, including SATA and PCIe, and boasting an ultra-quiet 120mm black fan with fluid/hydraulic bearing, it ensures efficient cooling and stable performance. With an 80+ Bronze certification, the Vida 500W power supply strikes the perfect balance between power efficiency and reliability, all backed by a 2-year warranty for your peace of mind.
| Power | |
|---|---|
| Power protection features | Over voltage |
| Efficiency | 85% |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5V) | 20 A |
| Max output current (+12V) | 36 A |
| Max output current (+3.3V) | 20 A |
| Number of +12V rail(s) | 1 |
| Power Factor Correction (PFC) type | Active |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Total power | 500 W |
| Ports & interfaces | |
|---|---|
| Cabling type | Non-Modular |
| PCI Express connector | Yes |
| Floppy drive power connector | 1 |
| Floppy disk drive connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU power cable length | 58 cm |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power cable length | 61 cm |
| PCI Express power connectors (6+2 pin) | 2 |
| EPS power connector (4+4 pin) | Yes |
| Peripheral (Molex) power cable length | 800 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Number of SATA power cables | 2 |
| SATA power cable length | 1000 mm |
| Number of PATA power connectors | 3 |
| Number of SATA power connectors | 6 |
| Motherboard power cable length | 55 cm |
| Motherboard power connector | 24-pin ATX |
| Performance | |
|---|---|
| Bearing technology | FDB |
| ATX version | 1.3 |
| 80 PLUS certification | 80 PLUS Bronze |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Design | |
|---|---|
| On/off switch | Yes |
| Fan location | Front |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Product colour | Black |
| Certificates | |
|---|---|
| Compliance certificates | UKCA, CE, RoHS, China Compulsory Certification (CCC), CB, Federal Communications Commission (FCC) |
| Weight & dimensions | |
|---|---|
| Weight | 1.43 kg |
| Height | 140 mm |
| Depth | 85 mm |
| Width | 150 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 1.6 kg |
| Package height | 92 mm |
| Package depth | 160 mm |
| Package width | 195 mm |
| Logistics data | |
|---|---|
| Country of origin | China |
