£2,397.99

Stock Available: 0
  • Seamlessly upgrade your rPDU with the hot-swappable Interchangeable Monitoring Device (IMD-5M)
  • Connect both C14 and C20 plugs interchangeably via the Combination C13/C19 receptacle
  • Secure connections with the high-retention, color-coded receptacle that is P-Lock cable-compatible
  • Streamline deployment of up to 50 devices on a single IP address with Vertiv Intelligence Director
  • Comes with a three-year warranty, extendable to five years if registered within 120 days of purchase

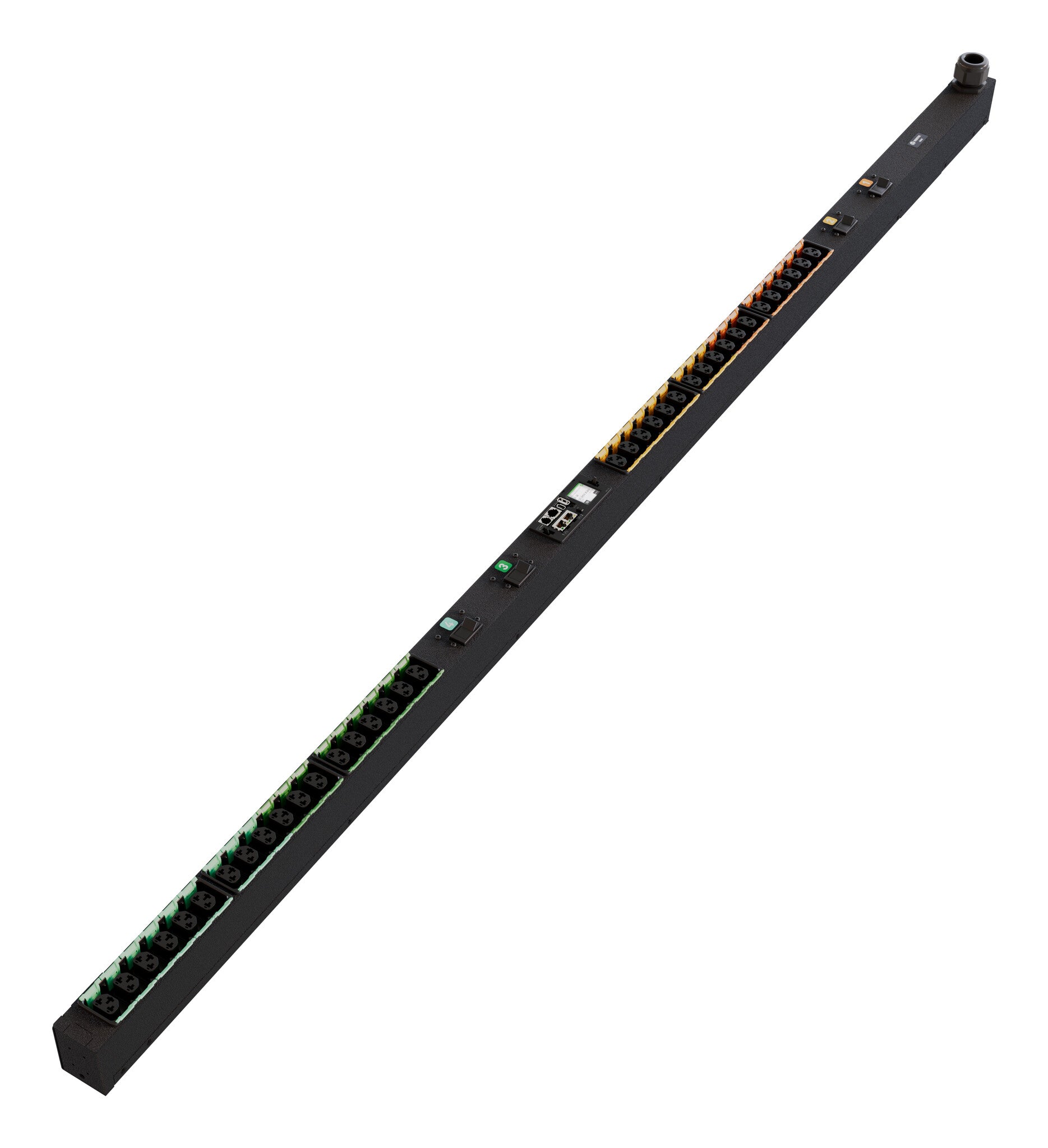

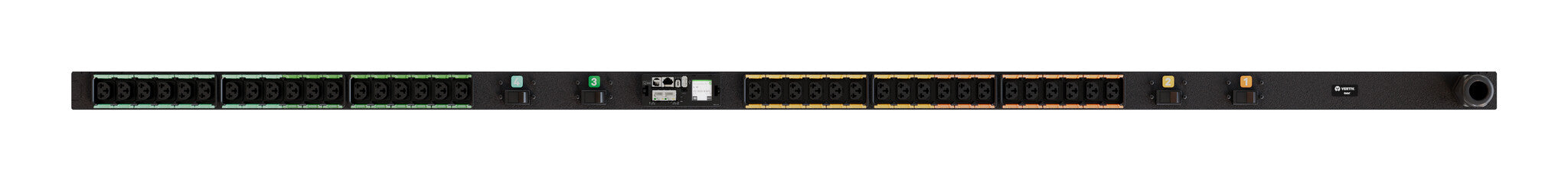

The Vertiv PowerIT Monitored High Density Rack Power Distribution Unit (rPDU) VP4U60A0 is an upgradeable, 60/63A, 240V, 0U, vertical rPDU with input monitoring. It has 36 Combination C13/C19 outlets that provide the flexibility to connect C14 and C20 plugs in the same outlet interchangeably. This unit also comes with a 1P+N+E (IP44) plug providing 14.4kW of power capacity. The hot-swappable Interchangeable Monitoring Device (IMD-5M) has ports for serial communication and environmental monitoring, while the dual gigabit ethernet ports simplify the management of multiple PDUs with fault-tolerant daisy chaining or IP aggregation capabilities. This model is UL/CE dual listed, meeting an important requirement for data centers. It is also RoHS-certified and individually tested for functionality to ensure your network is powered by a reliable power distribution unit. Plus, it includes a three-year warranty that is extendable to five years if registered within 120 days of purchase.

Design
Product colour Black
Mounting Vertical
Rack capacity 0U
Type Single-phase
PDU types Monitored
Ports & interfaces
AC outlet types C13 coupler, C19 coupler
Power plug Type E / Type F
AC outlets quantity 36 AC outlet(s)
Features
Cable length 3.048 m
Management features
Management platform DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+
Power
Power protection features Over current
Maximum power 14400 W
Maximum current 63 A
Nominal input voltage 240 V
Certificates
Certification UL Listed, RCM Mark(EMC Only), CE Marked, UKCA Marked, Complies with IEC 62368-1
Compliance certificates China RoHS, Trade Agreements Act (TAA), RoHS
Weight & dimensions
Weight 8.62 kg
Height 1778 mm
Depth 660 mm
Width 88.9 mm
Packaging data
Package height 177.8 mm
Package depth 2209.8 mm
Package width 279.4 mm
Package weight 8.62 kg
General
Product family PowerIT
Logistics data
Country of origin United States
