Vertiv Liebert GXT5 Double Online Conversion UPS - 750VA/750W | 230V | With Rackmount Kit | GXT5-750IRT2UXL
Couldn't load pickup availability
- It offers reliable, easy-to-manage power protection and battery backup with 750VA (750W) capacity.
- It has UNITY Power Factor (1.0) for more usable power and more connected loads to save space and costs.
- It includes four individual programmable output receptacles for device control and optimum battery usage.
- It comes with a Vertiv 3-year warranty plus a 2-year extension for a total of 5 years in coverage.
- It is ENERGY STAR® 2.0 certified with higher efficiency, for energy savings and improved reliability.

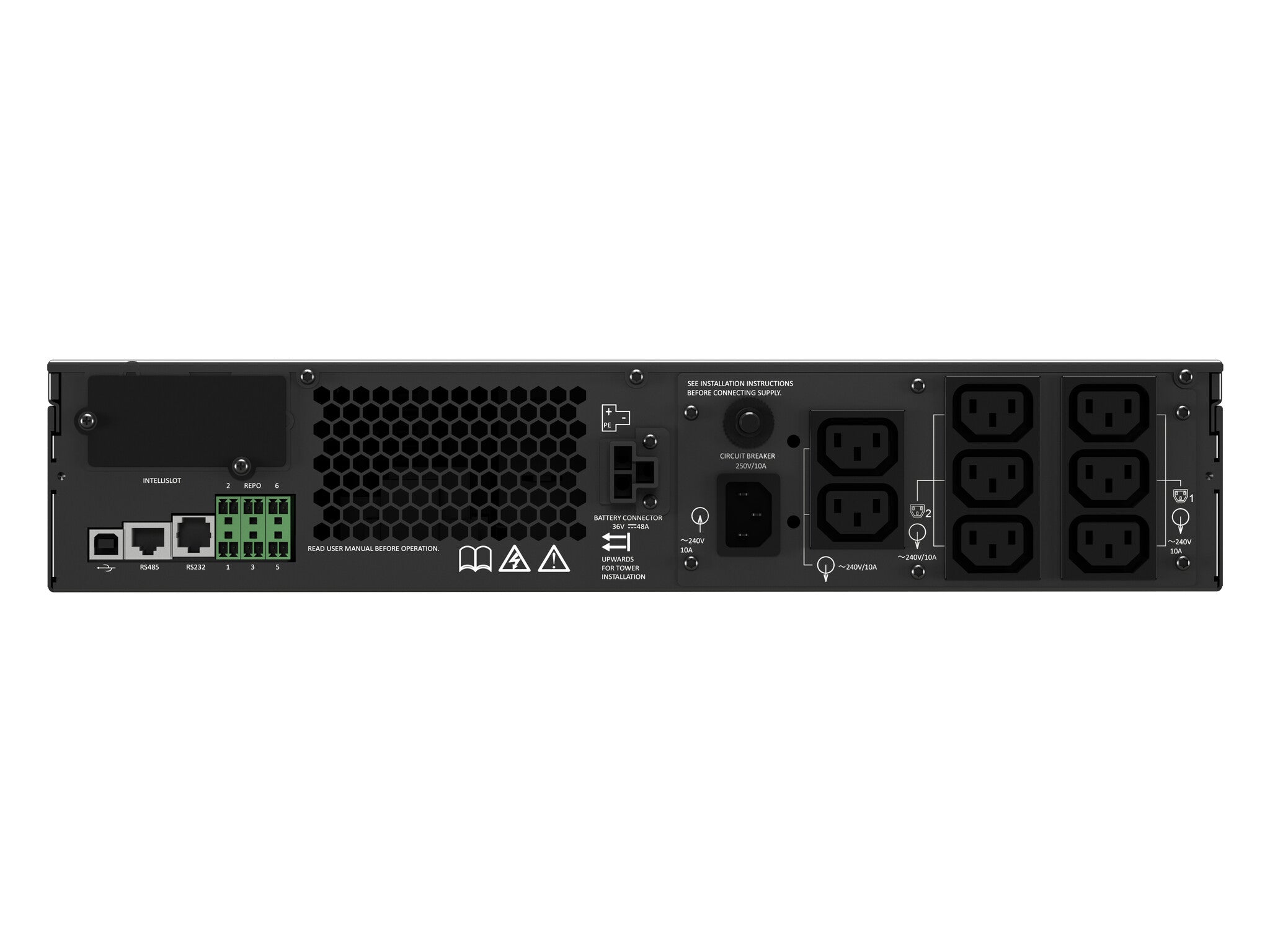

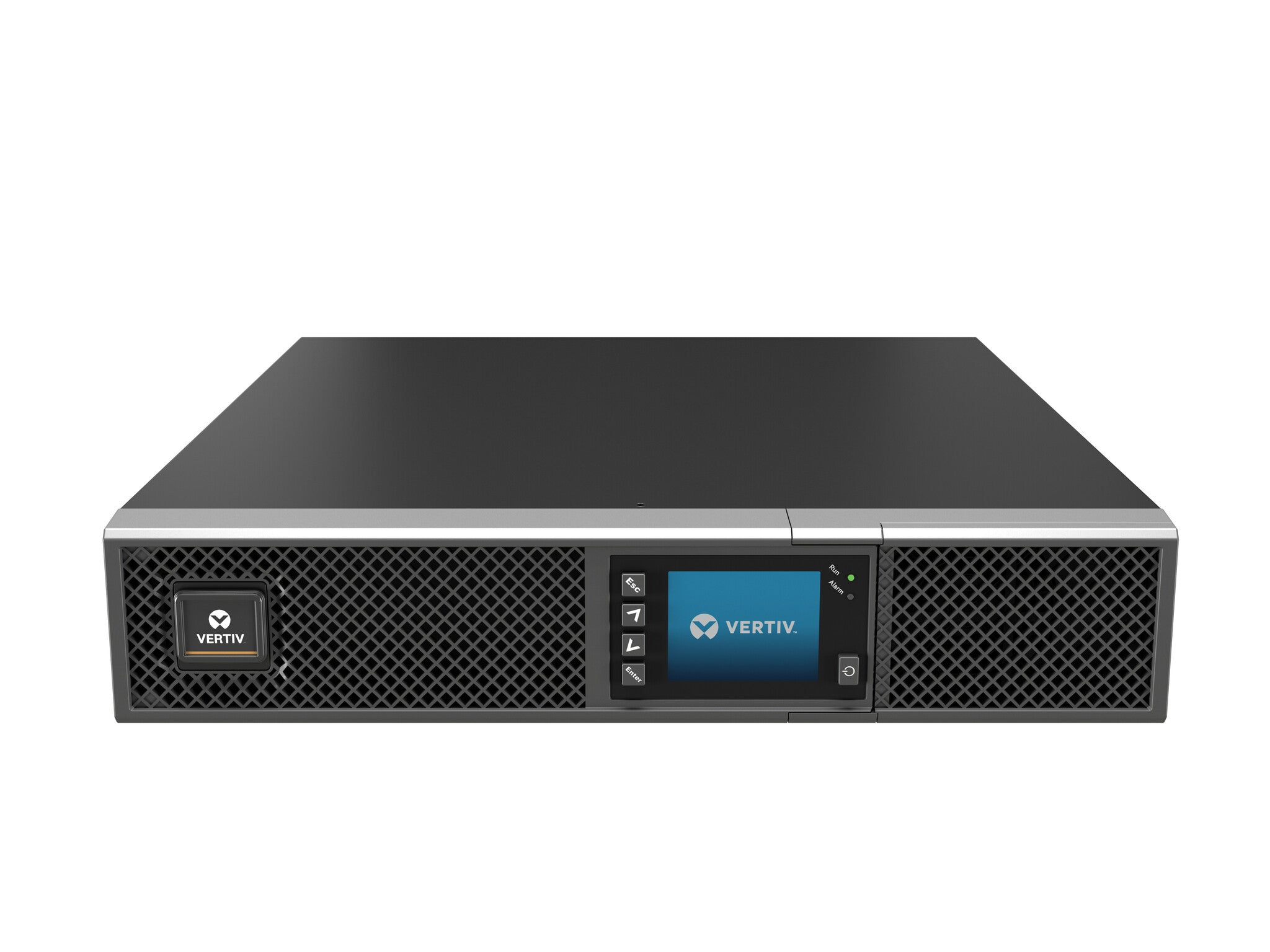

The Vertiv Liebert GXT5 UPS 750VA/750W is a 2U UPS solution that ensures the health and availability of IT infrastructure. With online, double conversion technology, the UPS protects critical equipment against outages and every type of power disturbance without drawing on battery power, extending battery life and minimizing replacements. This can support a wide range of power environments, including 200/208/220/230/240V user configurable AC power, and has scalable runtime options with matching external battery cabinets to offer extra time during an outage to support critical equipment and activity. It includes hot-swappable batteries and all hardware for installing it as a tower or in an equipment rack. This single-phase UPS is ENERGY STAR® 2.0 certified and offers leading normal mode power efficiency and Eco-mode for ultimate efficiency levels. It comes with a 5-year warranty (3-year factory warranty plus 2-year extended warranty). This promotion is subject to the Distributor’s product availability and is only available while product stocks last. Vertiv reserves the right to provide a 1-month notice to terminate the offer. This offer is not available in conjunction with any other offer/discount.
| Features | |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 0.75 kVA |
| Output power | 750 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 115 V |
| Input operation voltage (max) | 288 V |
| Input frequency | 40 - 70 Hz |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Output voltage regulation | 3% |
| Response time | 0 ms |
| Number of input phases | 1 |
| Efficiency | 95% |
| Input power factor | 0.99 |
| Emergency Power Off (EPO) | Yes |
| Noise level | 46 dB |
| Power protection features | Overload |
| Audible alarm(s) | Yes |
| Ports & interfaces | |
|---|---|
| AC outlet types | C13 coupler, C19 coupler |
| AC outlets quantity | 8 AC outlet(s) |
| USB port | Yes |
| Serial interface type | RS-232, RS-485 |
| Serial ports quantity | 1 |
| Emergency Power Off (EPO) connector | Yes |
| Battery | |
|---|---|
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 9 VAh |
| Battery voltage | 12 V |
| Typical backup time at full load | 10.5 min |
| Typical backup time at half load | 25.7 min |
| Battery recharge time | 3 h |
| Hot-swap battery | Yes |
| Design | |
|---|---|
| Form factor | Rackmount/Tower |
| Product colour | Black |
| Display type | LCD |
| International Protection (IP) code | IP20 |
| General | |
|---|---|
| Product family | Liebert |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Safety regulation & standards | |
|---|---|
| Safety | IEC62040-1:2008, GS; UL1778, c-UL |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Certificates | |
|---|---|
| Compliance certificates | REACH, RoHS |
| Certification | IEC/EN/AS 62040-2 2nd Ed (Cat 2 – 6); FCC 15 A CISPR22 A(RFI) |
| Weight & dimensions | |
|---|---|
| Width | 430 mm |
| Depth | 400 mm |
| Height | 85 mm |
| Weight | 16.8 kg |
| Packaging data | |
|---|---|
| Package width | 517 mm |
| Package depth | 617 mm |
| Package height | 262 mm |
| Package weight | 21.4 kg |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85078000 |
| Other features | |
|---|---|
| Battery type | VRLA |
| Output connections | IEC320 C13 |
| Input connection type | C14 |
| Dimensions (WxDxH) | 430 x 400 x 85 mm |
| Overload protection | Yes |
| Nominal input voltage | 230 V |
| Nominal output voltage | 230 V |
| Bypass | Yes |
| Package dimensions (WxDxH) | 517 x 617 x 262 mm |
| Non-operating relative humidity (non-condensing) | 0 - 95% |
