Vertiv Liebert GXT5 Double Online Conversion UPS -5000VA/5000W| 230V| With Rackmount Kit and Intellislot RDU101 Communication Card| GXT5-5000IRT5UXLN
Couldn't load pickup availability
- It offers reliable, easy-to-manage power protection and battery backup with 5kVA (5kW) capacity.
- It has UNITY Power Factor (1.0) for more usable power and more connected loads to save space and costs.
- It includes a built-in Vertiv RDU101 network communications card for remote management.
- It comes with a Vertiv 3-year warranty plus a 2-year extension for a total of 5 years in coverage.
- It is ENERGY STAR® 2.0 certified with higher efficiency, for energy savings and improved reliability.

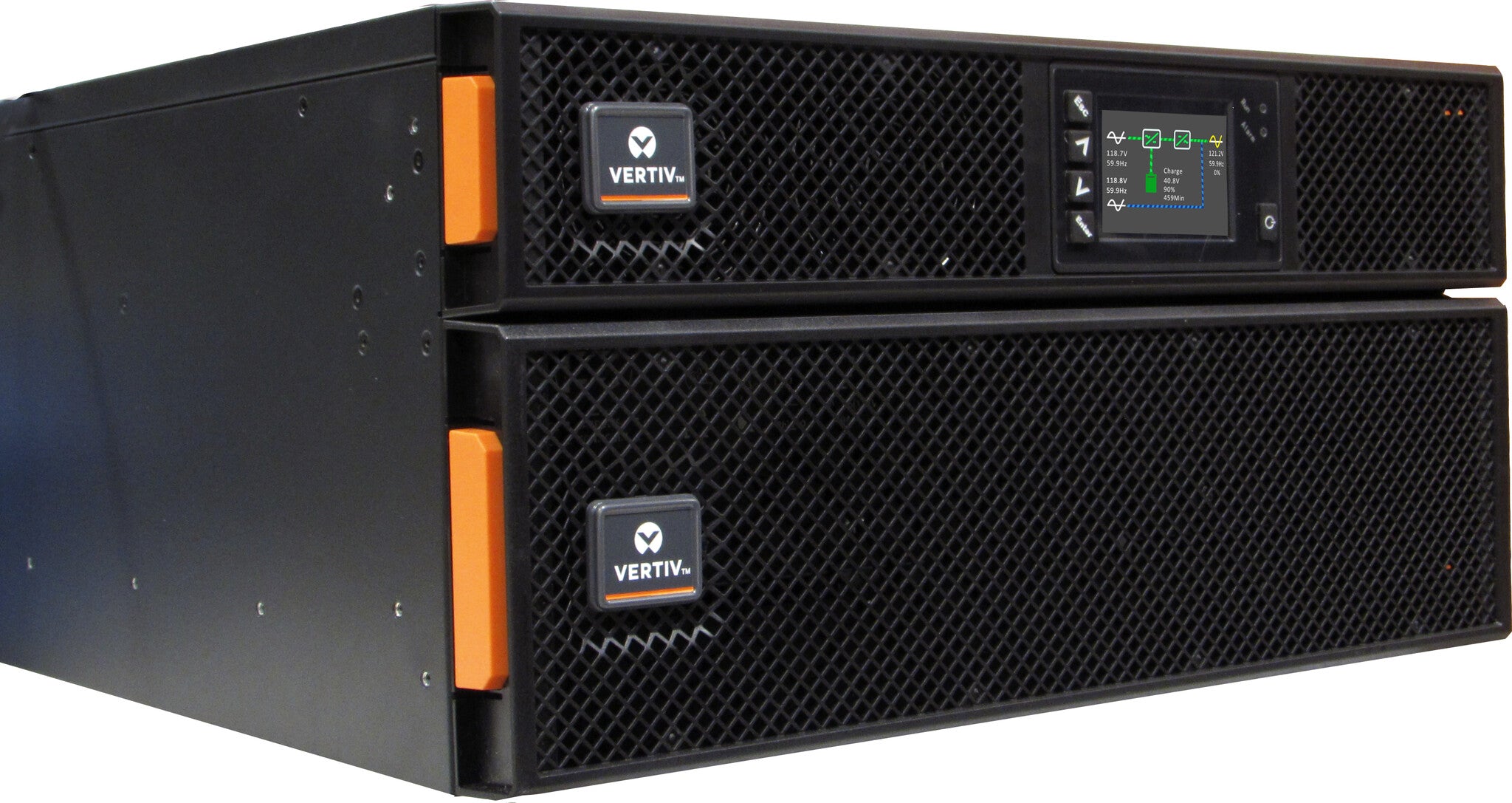

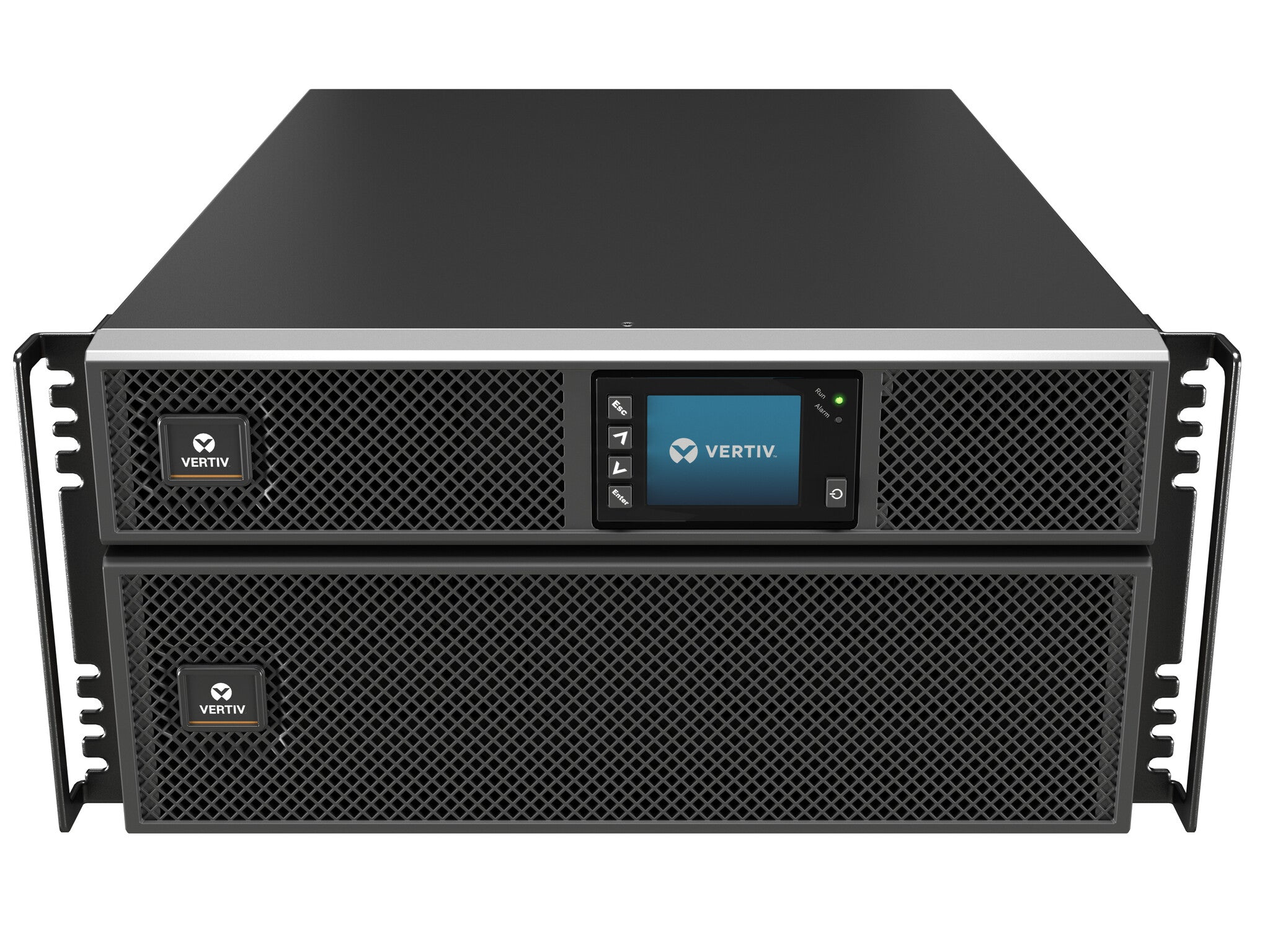

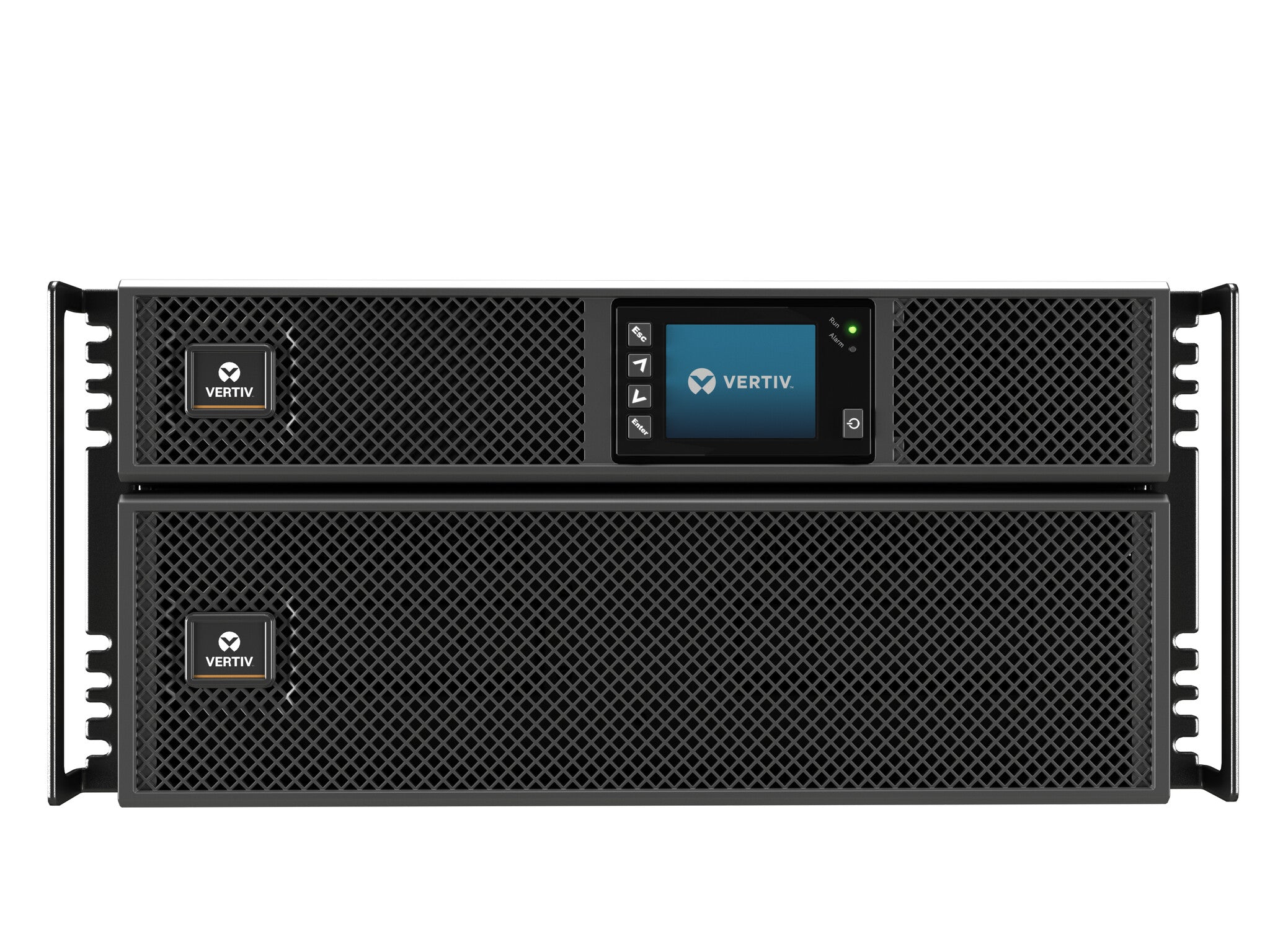

The Vertiv Liebert GXT5 uninterruptible power supply (UPS) protects critical equipment against outages and every type of power disturbance. This 5kVA/5kW online double conversion UPS offers continuous power conditioning in centralized and edge locations. With unity power factor (1.0), it allows more connected loads saving space and costs. This tower/rack mount UPS has a built-in Vertiv RDU101 communications card for remote monitoring to help you make more informed decisions and faster event resolution. With the free Vertiv Power Insight software, you can consolidate your view of up to 100 distributed UPS units providing simple notification of status and events in a single pane of glass. This 230V in/ 230 out single phase UPS has scalable runtime options with matching external battery cabinets to give extra runtime during an outage to support critical equipment. This battery backup is ENERGY STAR 2.0 certified and comes with an intuitive gravity sensing full-color LCD display. It comes with a 5-year warranty (3-year factory warranty plus 2-year extended warranty). This promotion is subject to the Distributor’s product availability and is only available while product stocks last. Vertiv reserves the right to provide a 1-month notice to terminate the offer. This offer is not available in conjunction with any other offer/discount.
| Features | |
|---|---|
| Audible alarm(s) | Yes |
| Power protection features | Overload |
| Noise level | 55 dB |
| Overload capacity (1 minute) | 150% |
| Overload capacity (5 minute) | 125% |
| Emergency Power Off (EPO) | Yes |
| Output power factor | 1 |
| Input power factor | 0.99 |
| Power factor | 1 |
| Efficiency (On-line mode) | 94% |
| Efficiency | 94% |
| Single-phase input voltage supported | 200,208,220,230,240 V |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Response time | 0 ms |
| Output voltage regulation | 3% |
| Output frequency | 50 Hz |
| Output operation voltage (max) | 240 V |
| Output operation voltage (min) | 230 V |
| Input frequency | 40 - 70 Hz |
| Input operation voltage (max) | 288 V |
| Input operation voltage (min) | 176 V |
| Waveform | Pure sine |
| Output power | 5000 W |
| Output power capacity | 5 kVA |
| UPS topology | Double-conversion (Online) |
| Ports & interfaces | |
|---|---|
| RS-232 ports | 1 |
| Serial ports quantity | 1 |
| USB port | Yes |

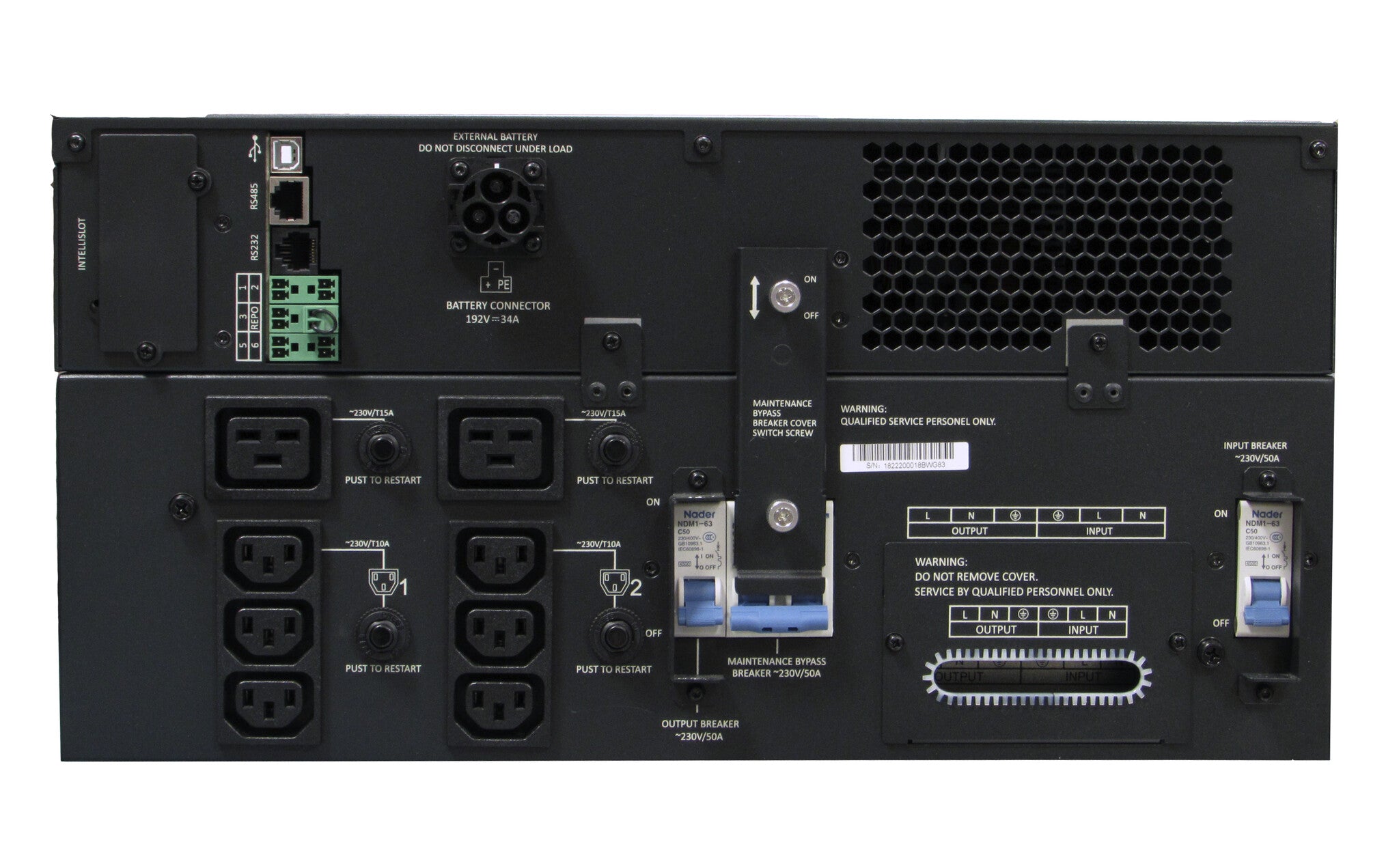

| AC outlets quantity | 8 AC outlet(s) |
| Power plug | Terminal |
| AC outlet types | C13 coupler, C19 coupler, IEC 320, Terminal |
| Battery | |
|---|---|
| Hot-swap battery | Yes |
| Battery recharge time(90%) | 5 h |
| Typical backup time at half load | 18.5 min |
| Typical backup time at full load | 7 min |
| Number of batteries supported | 16 |
| Battery voltage | 12 V |
| Battery capacity | 9 Ah |
| Battery technology | Sealed Lead Acid (VRLA) |
| Design | |
|---|---|
| International Protection (IP) code | IP20 |
| Display type | LCD |
| Cooling type | Active |
| Rack capacity | 5U |
| Product colour | Black |

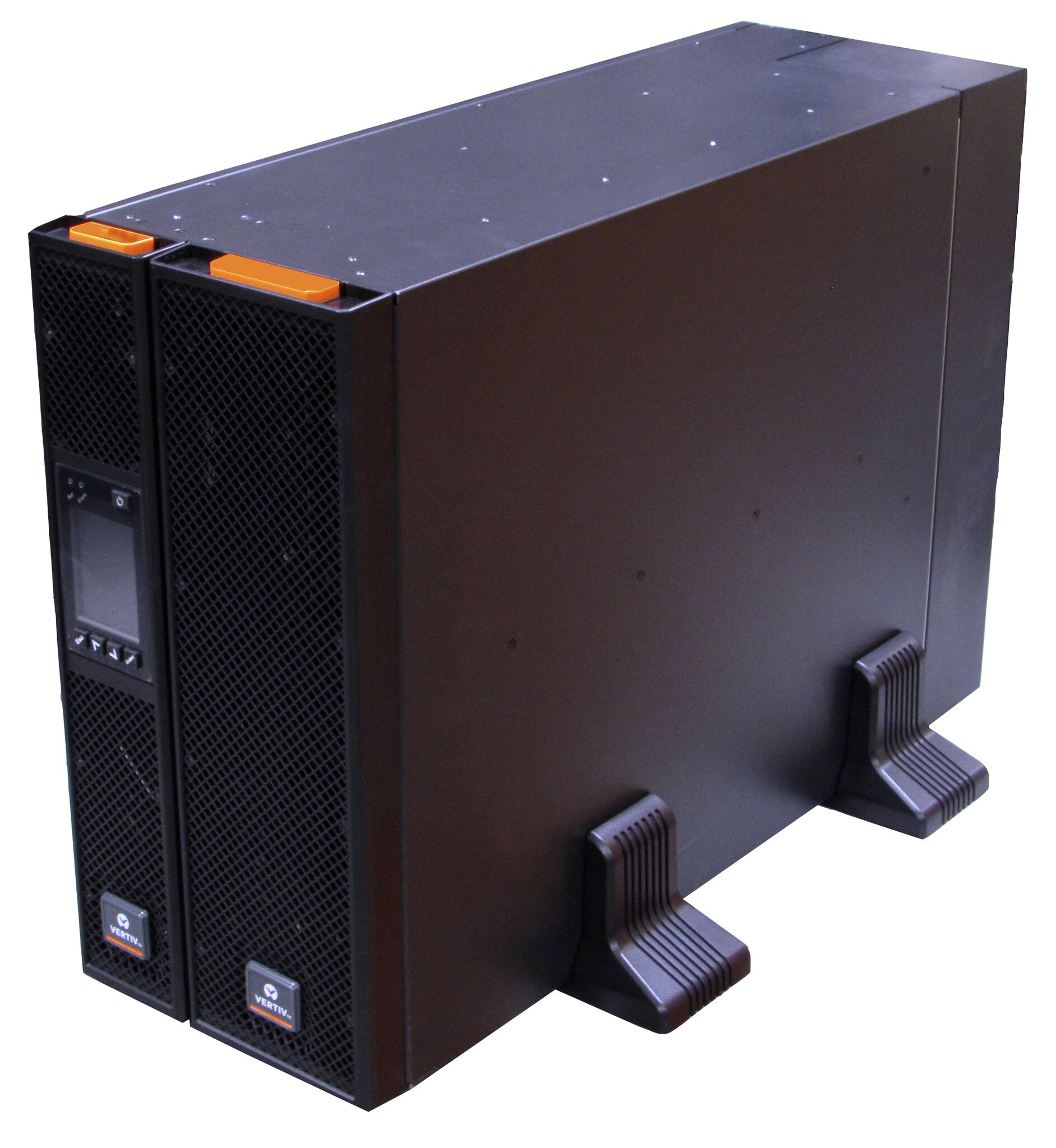

| Form factor | Rackmount/Tower |
| General | |
|---|---|
| Product family | Liebert |
| Operational conditions | |
|---|---|
| Operating altitude | 0 - 3000 m |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Certificates | |
|---|---|
| Certification | CE, EMI/EMC/C-Tick EMC, ESD |
| Compliance certificates | RoHS |
| Safety regulation & standards | |
|---|---|
| Safety | IEC62040-1:2008 |
| Weight & dimensions | |
|---|---|
| Weight | 70.8 kg |
| Height | 217 mm |
| Depth | 630 mm |
| Width | 430 mm |
| Packaging data | |
|---|---|
| Package weight | 89 kg |
| Package height | 520 mm |
| Package depth | 816 mm |
| Package width | 646 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85078000 |
| Other features | |
|---|---|
| Output voltage | 230 V |
| Battery type | VRLA |
