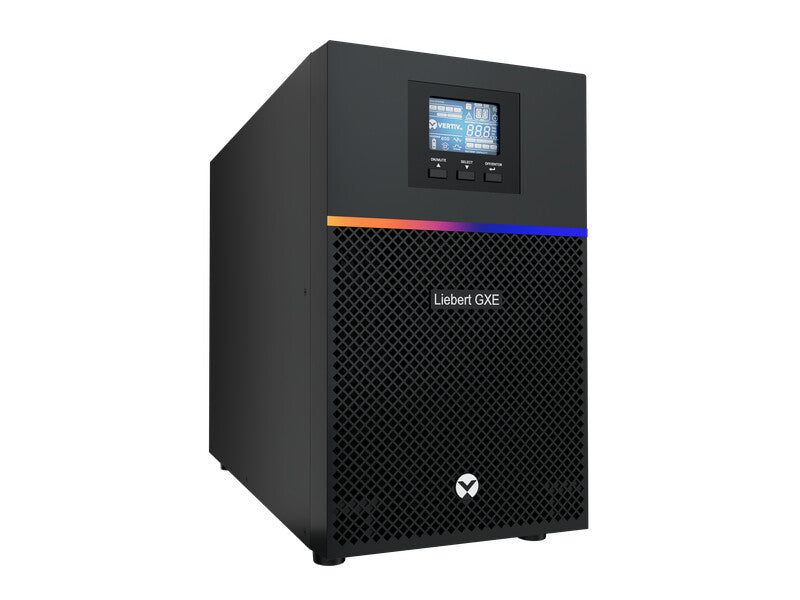

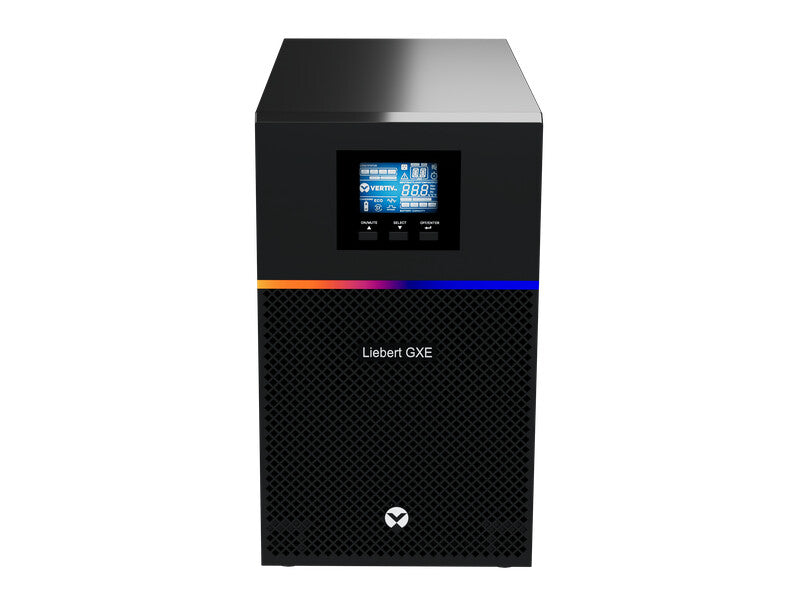

Vertiv Liebert GXE3-3000IMT uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 2700 W 9 AC outlet(s)
Couldn't load pickup availability
- Reliable online double-conversion topology
- High output power factor (0.9) to protect more loads
- Remote management and server shutdown with the optional network management card
- Fast recharge time (<4hrs @90%)
- Hot-swappable user replaceable internal batteries without load shutdown
The Vertiv Liebert GXE UPS is an affordable, efficient UPS with high output power factor (0.9PF), which enables continuous and reliable power to more connected devices. With online double conversion technology, this 3kVA compact tower UPS protects devices against many disturbances. With proven reliability, it is ideal for critical applications in financial, government, and manufacturing industries. It has an intuitive LCD for local monitoring, configuration, and control. The high efficiency in both online and ECO modes of operation (up to 95% in ECO mode) for this already affordable UPS further drives energy and operational costs savings. An optional network management card allows remote management and server shutdown via the optional network card or (free) Vertiv Power Insight software. In addition to reliable power, having multiple monitoring options make this compact UPS ideal for delivering best-in-class power protection to equipment at the edge of networks or in remote sites.
| Features | |
|---|---|
| Noise level | 53 dB |
| EMI/RFI noise filtering | Yes |
| Efficiency (ECO mode) | 96% |
| Efficiency (On-line mode) | 91% |
| Surge energy rating | 600 J |
| Output operation voltage (max) | 240 V |
| Output operation voltage (min) | 220 V |
| Input frequency | 40 - 70 Hz |
| Input operation voltage (max) | 290 V |
| Input operation voltage (min) | 110 V |
| Waveform | Pure sine |
| Output power | 2700 W |
| Output power capacity | 3 kVA |
| UPS topology | Double-conversion (Online) |

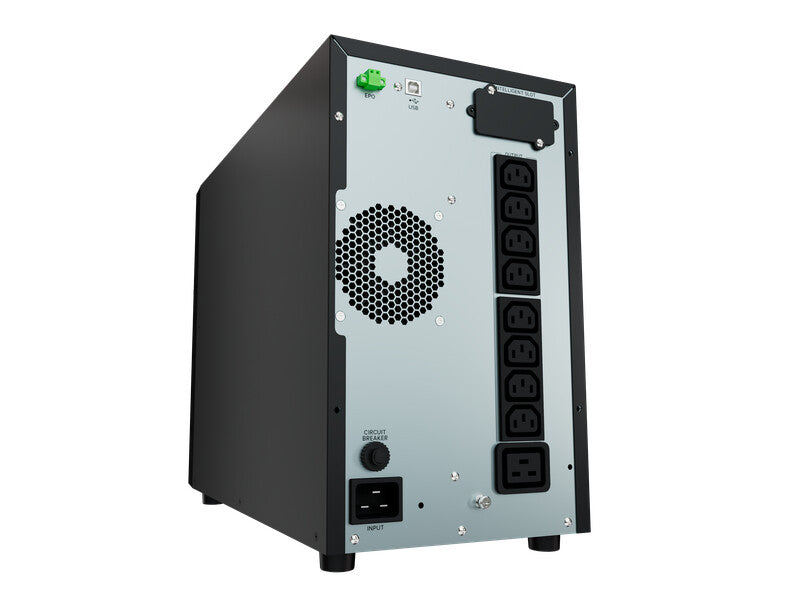

| Ports & interfaces | |
|---|---|
| Emergency Power Off (EPO) connector | Yes |
| USB port | Yes |
| AC outlets quantity | 9 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Battery | |
|---|---|
| Battery recharge time | 4 h |
| Battery life (max) | 5 year(s) |
| Typical backup time at half load | 9.5 min |
| Typical backup time at full load | 3.3 min |
| Number of batteries supported | 6 |
| Battery technology | Sealed Lead Acid (VRLA) |
| Design | |
|---|---|
| Display type | LCD |
| Product colour | Grey |
| Form factor | Tower |
| General | |
|---|---|
| Product family | Liebert |
| Operational conditions | |
|---|---|
| Operating altitude | 0 - 2000 m |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Certificates | |
|---|---|
| Compliance certificates | CB, CE, RCM, REACH, RoHS, UKCA, WEEE |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Cables included | Input power cable, Output power cable, USB cable |
| Weight & dimensions | |
|---|---|
| Weight | 27.7 kg |
| Height | 345 mm |
| Depth | 425 mm |
| Width | 200 mm |
| Packaging data | |
|---|---|
| Package weight | 29.3 kg |
| Package height | 460 mm |
| Package depth | 560 mm |
| Package width | 320 mm |
