Vertiv Liebert Edge UPS 1000VA/900W 230V MT
Couldn't load pickup availability
- High output PF=0.9 to maximize available power and protect more equipment
- High efficiency, up to 98% in line mode, to deliver energy savings

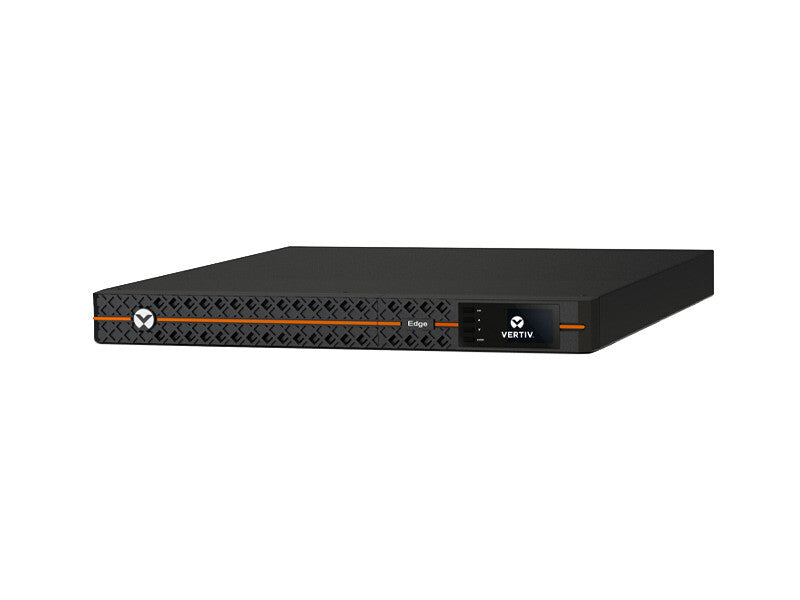

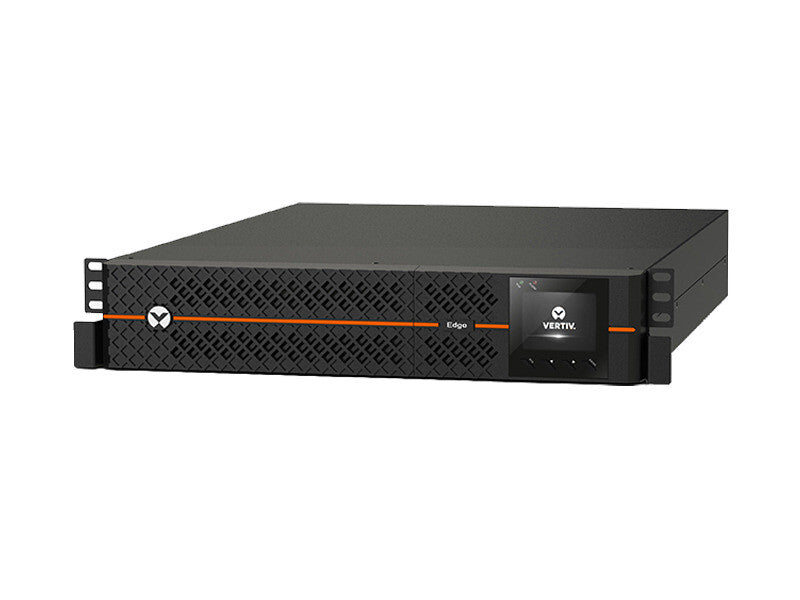

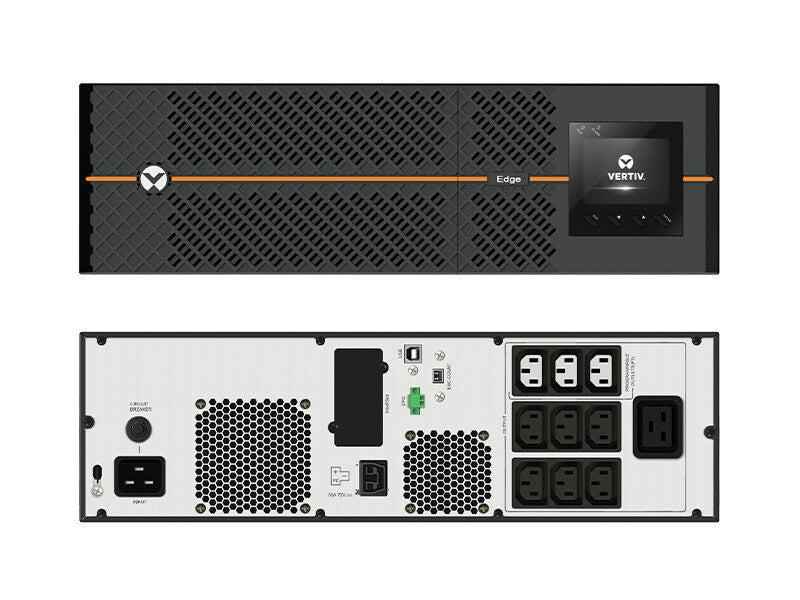

- 1U, 2U, 3U, tower, rack/tower form factors, with power ratings from 500VA to 3000VA, to address a broad range of power requirements
- Advanced AVR protection with 2x boost and 1x buck tap to protect the battery by smoothing out spikes, sags and brownouts
- Color graphic LCD display
- Add up to 6 extended run battery cabinets to increase runtime
- External battery cabinets with auto-detection
- Rack/tower 3kVA model with short depth for flexible installation
- “Green mode” operation: in battery mode with small loads, the UPS will automatically shut down to protect batteries, optimize energy savings
- Programmable outlets to disable non-critical loads, optimize battery runtime
- Input breaker device for additional protection to the load in worst case failures
- Smart fan speed control for lower audible noise
- Remote connectivity via network interface or serial connection to monitor power consumption and configure user-defined alert notifications to prevent downtime
- Extend battery life with deep discharge protection

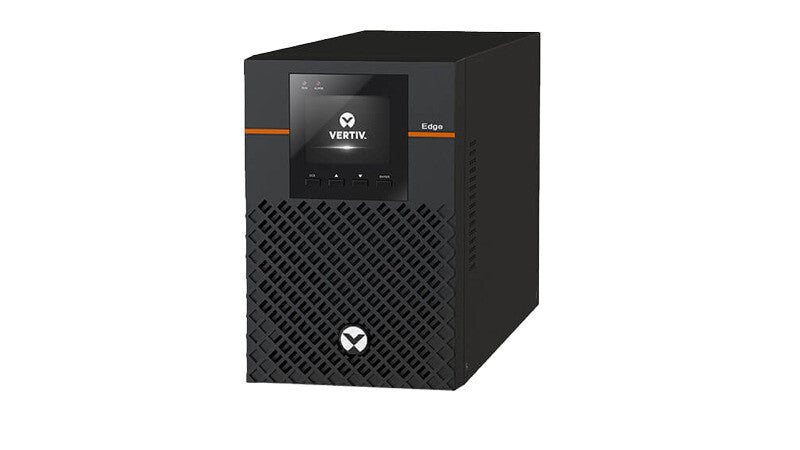

Vertiv Edge UPS - 1000VA 900W 230V Line Interactive AVR Mini Tower Battery Backup Single Phase |0.9 PF (EDGE-1000IMT)
1000VA UPS with advanced AVR for a more stable output voltage regulation
This line interactive UPS has 0.9 output power factor ensuring more active power to protect larger loads
Plug and play battery backup does not need installation or rack space
Add a communication card to this single phase UPS to manage devices remotely
Get 5 total outlets with 2 programmable outlets to prioritize critical loads and achieve longer runtime
| Features | |
|---|---|
| UPS topology | Line-Interactive |
| Output power capacity | 1 kVA |
| Output power | 900 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 166 V |
| Input operation voltage (max) | 278 V |
| Input frequency | 55/65 Hz |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 624 J |
| Efficiency | 96% |
| Ports & interfaces | |
|---|---|
| AC outlet types | C13 coupler |
| Power plug | C13 coupler |
| AC outlets quantity | 5 AC outlet(s) |
| USB port | Yes |
| Battery | |
|---|---|
| Battery recharge time | 3 h |
| Design | |
|---|---|
| Form factor | Tower |
| Product colour | Black |
| Rack capacity | 1U |
| Display type | LCD |
| General | |
|---|---|
| Product family | Liebert |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 55 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Operating altitude | 0 - 3000 m |
| Safety regulation & standards | |
|---|---|
| Safety | IEC/EN62040-1 |
| Certificates | |
|---|---|
| Compliance certificates | CE, RoHS |
| Certification | CE, CB Report, EAC, RCM, UKCA |
| Weight & dimensions | |
|---|---|
| Width | 145 mm |
| Depth | 370 mm |
| Height | 220 mm |
| Weight | 14 kg |
| Packaging data | |
|---|---|
| Package width | 230 mm |
| Package depth | 450 mm |
| Package height | 325 mm |
| Package weight | 16 kg |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85078000 |
| Country of origin | China |
| Other features | |
|---|---|
| Nominal input voltage | 230 V |
| Nominal output voltage | 200-240 V |
