• Integrated with the Vertiv Geist Next Generation IMD with 128x128 high-visibility LCD that displays power data. The touchscreen interface can set up PDUs locally without the need for a network connection. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation.

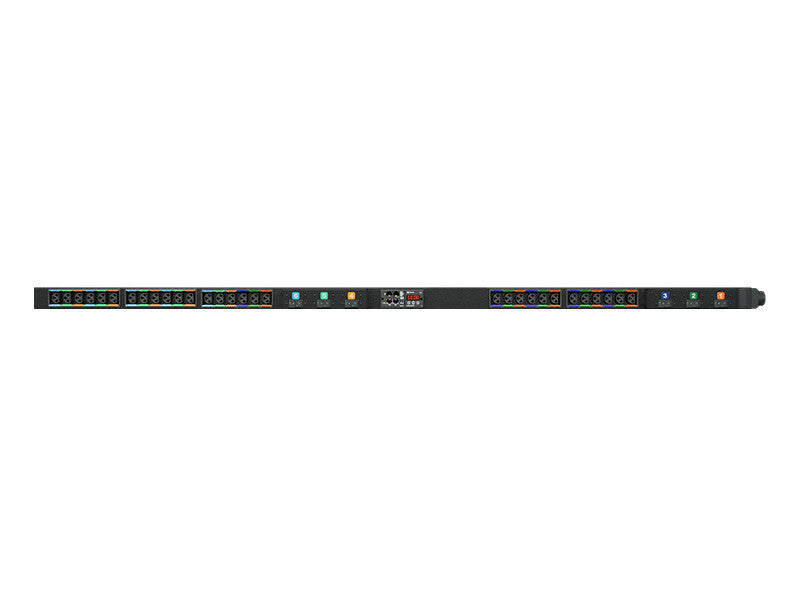

This Vertiv Geist VP4UV0A2 rack power distribution unit has a universal input that supports common AC power configurations. It has (30) Combination C13/C19 outlets providing 22kW of power capacity. This unit can accommodate input power ranging from 32A-63A and 208V-415V in both single-phase and three-phase configurations. It helps simplify the procurement process of rPDUs since users can use a single model to work with different power sources. To define the input power configuration, choose the right Facility Side Cable (sold separately) to install the Vertiv Geist UPDU in your network system. The Vertiv-patented U-Lock outlets help secure plug connections and lessen the risk of downtime caused by accidental cord disconnection.

REDUNDANT POWER-SHARING
The next-generation Interchangeable Monitoring Device features a redundant power-sharing port that allows users to connect two IMDs in the rack and provide backup power to the IMD in case of power loss.

HIGH-VISIBILITY DISPLAY
This smart PDU is integrated with the next-generation rPDU IMD that displays power data via its 128x128 high-visibility LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation.

ENHANCED SECURITY
Includes security enhancements that feature secure boot utilizing a hardware-based trust anchor to help ensure that data and operations are protected.

INDUSTRY CERTIFIED (UL, CE, TAA, RoHS)
Each rack mount PDU is Dual Listed (UL/CE), TAA-Compliant, and RoHS certified. It undergoes individual testing for functionality and reliability to ensure your network is powered by a reliable smart power strip. The unit comes with a 3-year warranty that can be extended to 5 years if registered within 120 days of purchase.
