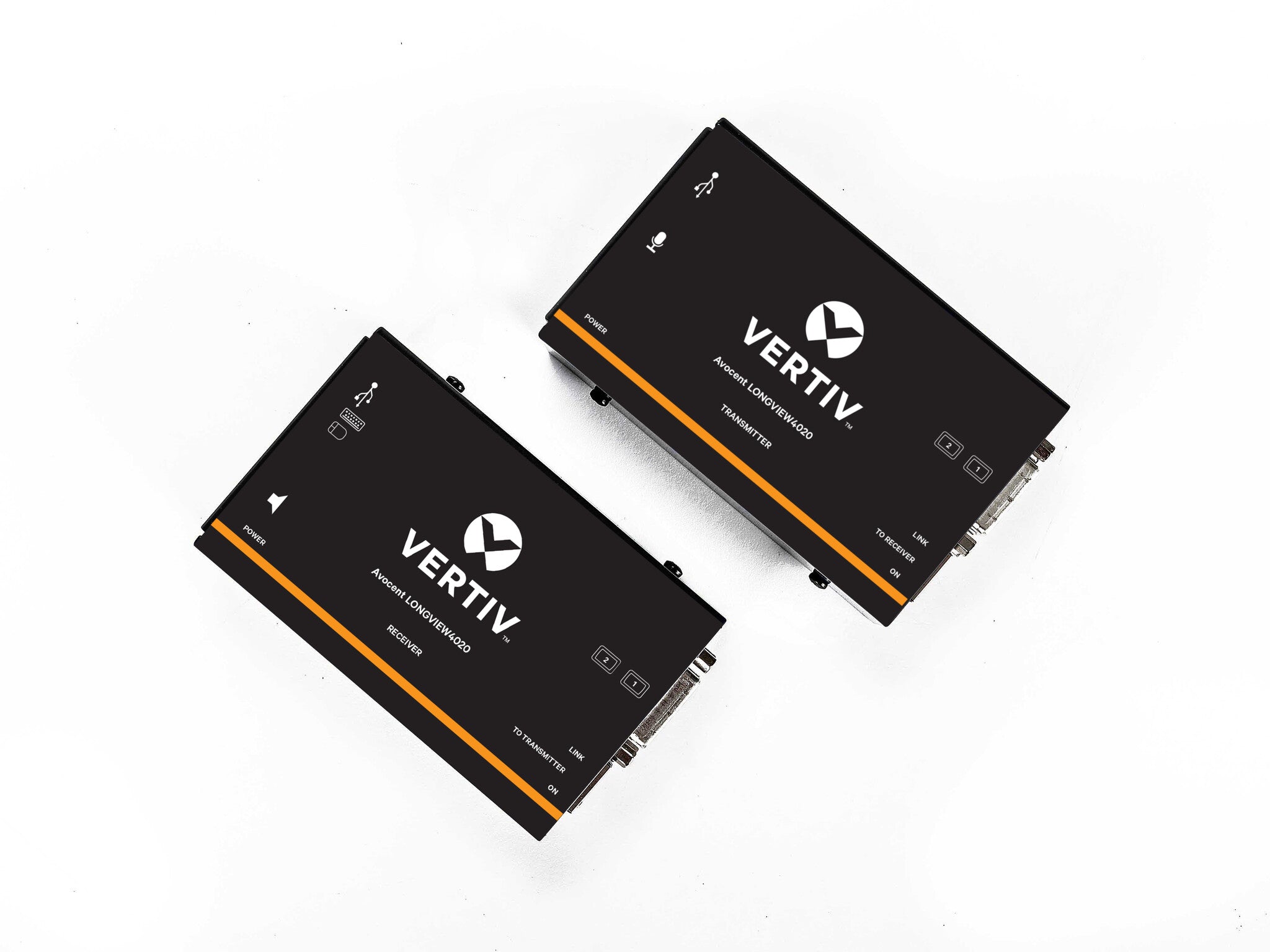

Vertiv Avocent LV4020P-202 KVM extender Transmitter & receiver
£1,720.99
Couldn't load pickup availability
- Plug and play - The LV4000 Series extenders are delivered in a zero config state so you can plug them in and start working with them straight away. There’s no need for drivers or software to be installed
- USB 2.0 - Enables connection of any USB human interface device from mice and keyboards through to graphics tablets, touchscreens, jog shuttles, joysticks, 3D explorers and mass storage devices. Full speed (12Mbps) isochronous devices such as headsets are supported
- Analog audio - Stereo CD quality (stereo channel 16 bit sampled at 44.1kHz) is available to transfer audio from local to remote for line out
- Digital video - Single or dual screens at 1920 x 1200 @ 60Hz maximum resolution
- Rack options - Both transmitter and receiver units can be used stand-alone or up to 16
Avocent LV 4020P KVM Extender\nAvocent LongView extension solutions enable you to increase the distance between the user and the target system. Extension solutions are ideal for broadcast, IT, industrial, transportation, emergency management and defense/military applications
| Features | |
|---|---|
| Audio support | Yes |
| Certification | CE, FCC, UL |
| Plug and Play | Yes |
| Easy to install | Yes |
| Material | Metal |
| Product colour | Blue |
| Maximum digital resolution | 1920 x 1200 pixels |
| Rack mounting | No |
| Cable types supported | Cat5e, Cat6a, Cat7 |
| Maximum transfer distance | 50 m |
| Connectivity technology | Wired |
| Type | Transmitter & receiver |
| Transmitter | |
|---|---|

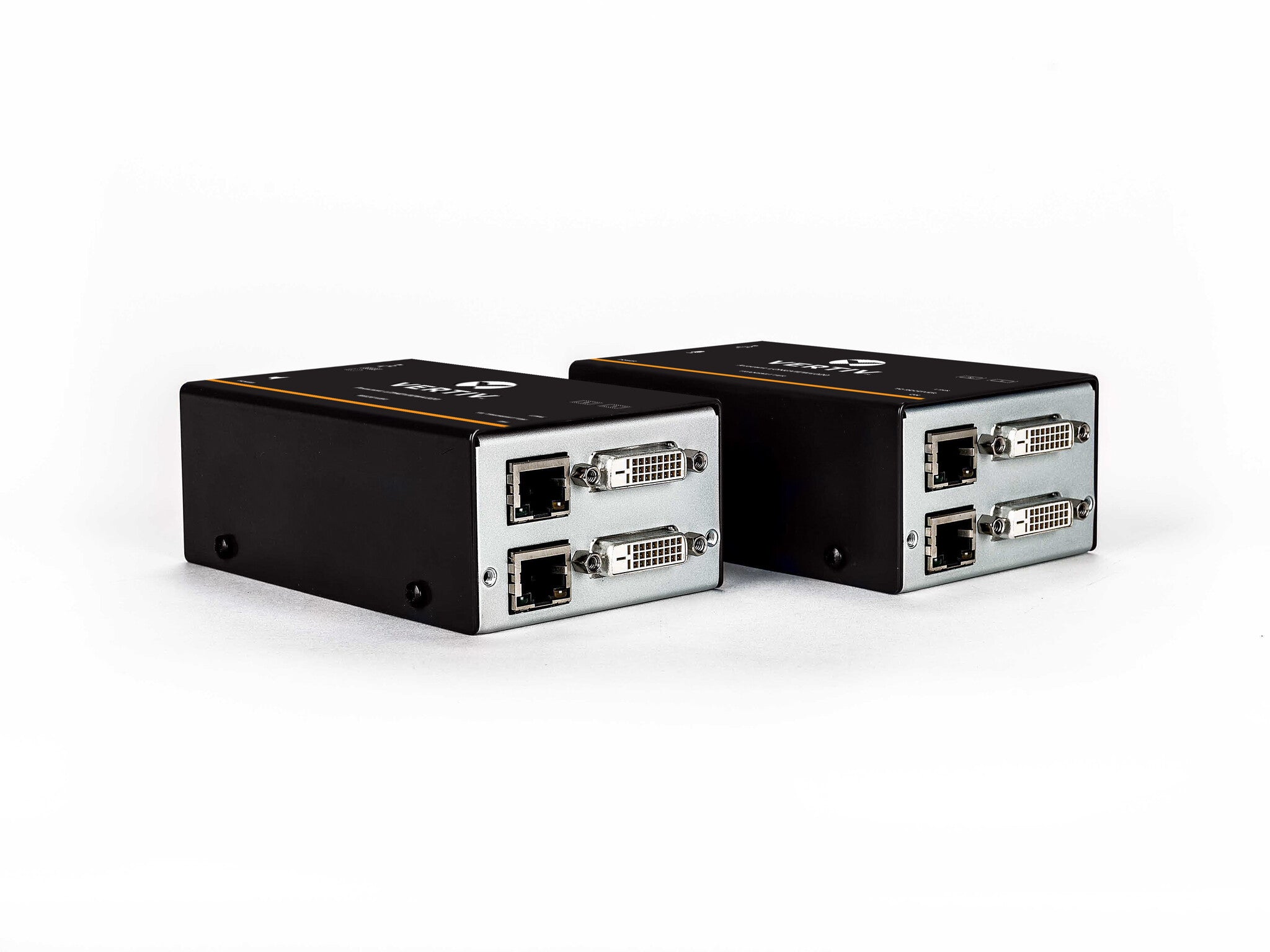

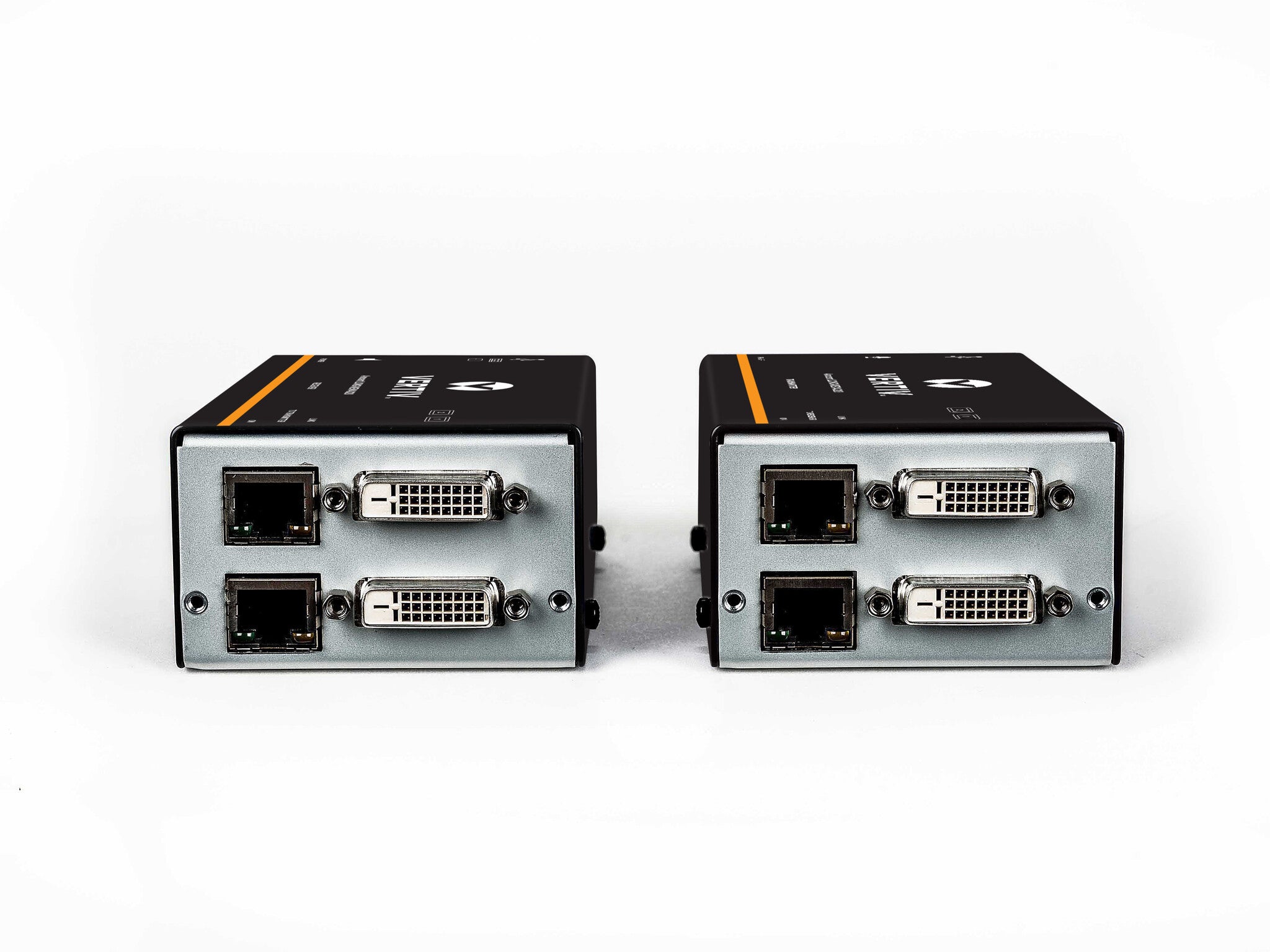

| RJ-45 ports quantity (transmitter) | 2 |

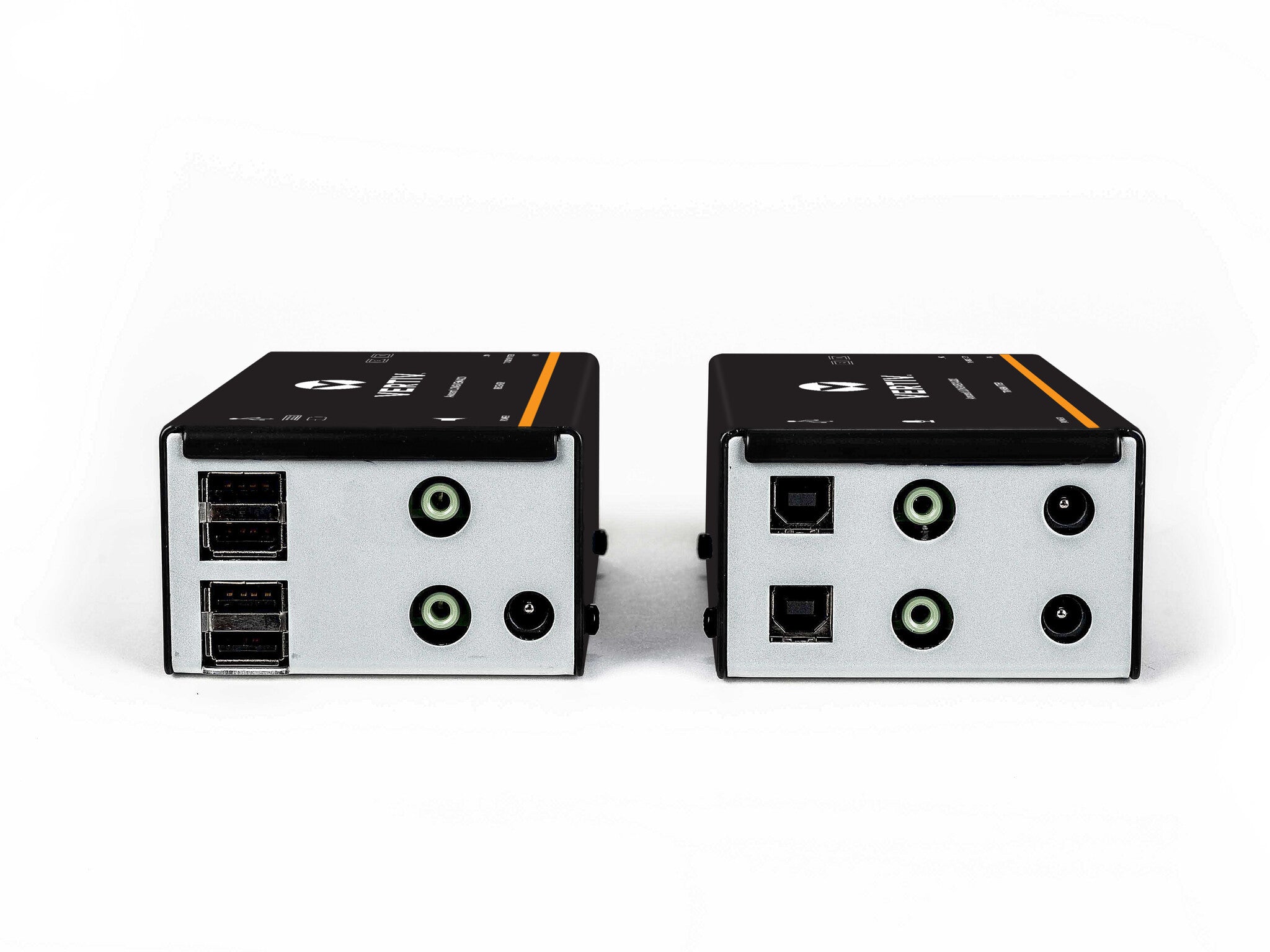

| Transmitter local keyboard/mouse port type | USB |
| Number of displays supported | 2 |
| Transmitter local video port type | DVI-D |
| Transmitter local video port | Yes |
| Transmitter video port type | DVI-D |
| Receiver | |
|---|---|
| RJ-45 ports quantity (receiver) | 2 |
| Receiver local video port type | DVI-D |
| Receiver local keyboard/mouse port type | USB |
| Power | |
|---|---|
| Power consumption (receiver) (max) | 12.5 W |
| AC adapter output voltage | 5 V |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100-240 V |
| Weight & dimensions | |
|---|---|
| Receiver weight | 500 g |
| Receiver height | 4.8 cm |
| Receiver depth | 7.5 cm |
| Receiver width | 12 cm |
| Transmitter weight | 500 g |
| Transmitter height | 4.8 cm |
| Transmitter depth | 7.5 cm |
| Transmitter width | 12 cm |
| Packaging content | |
|---|---|
| Included power plug types | EU |
| Mounting bracket(s) included | No |
| Quick installation guide | Yes |

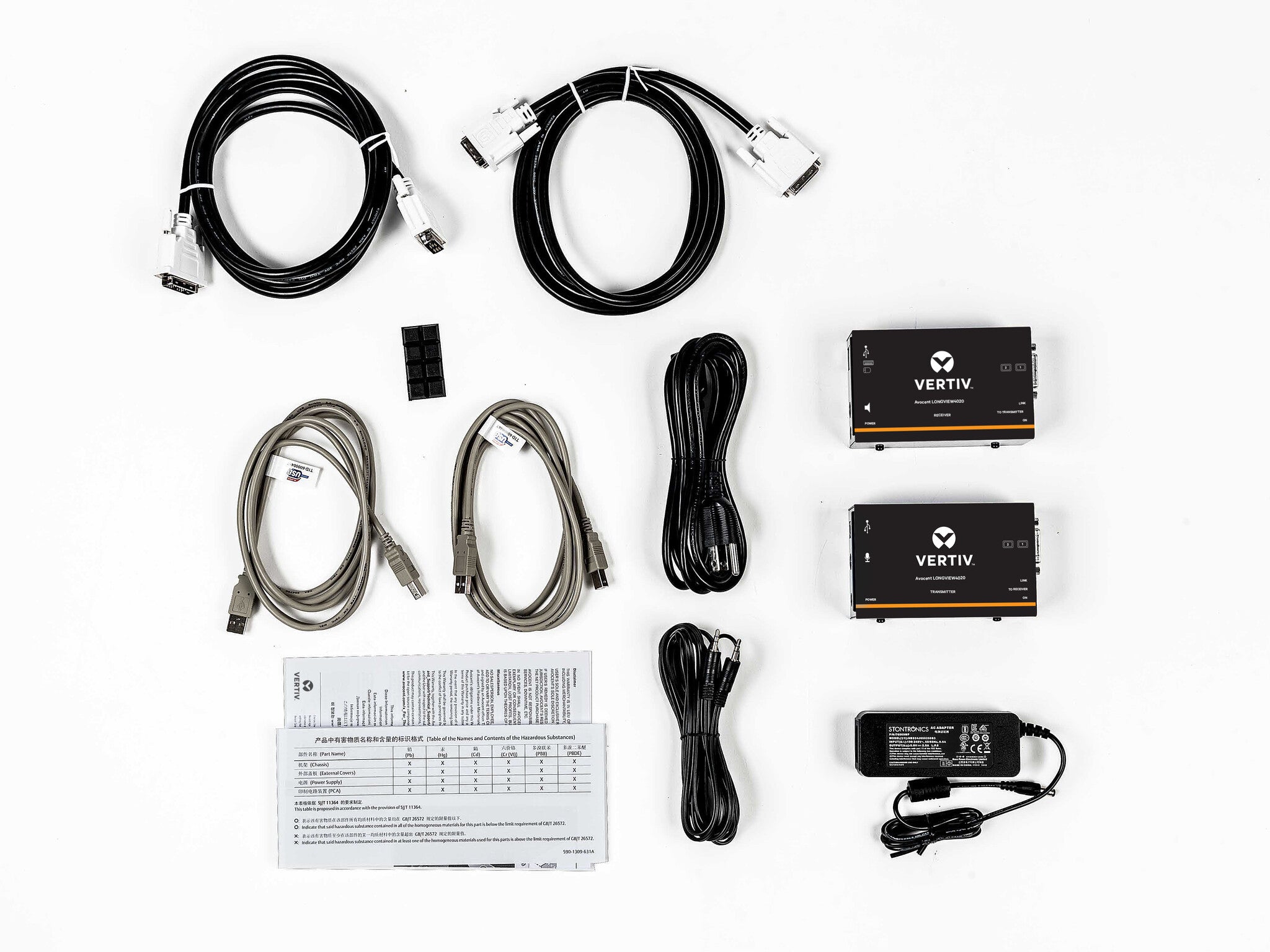

| Cables included | AC, Audio (3.5mm), DVI, USB |
| AC adapter included | Yes |
| General | |
|---|---|
| Product family | Avocent |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Technical details | |
|---|---|
| Maximum resolution | 1920 x 1200 pixels |
| Weight | 500 g |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
