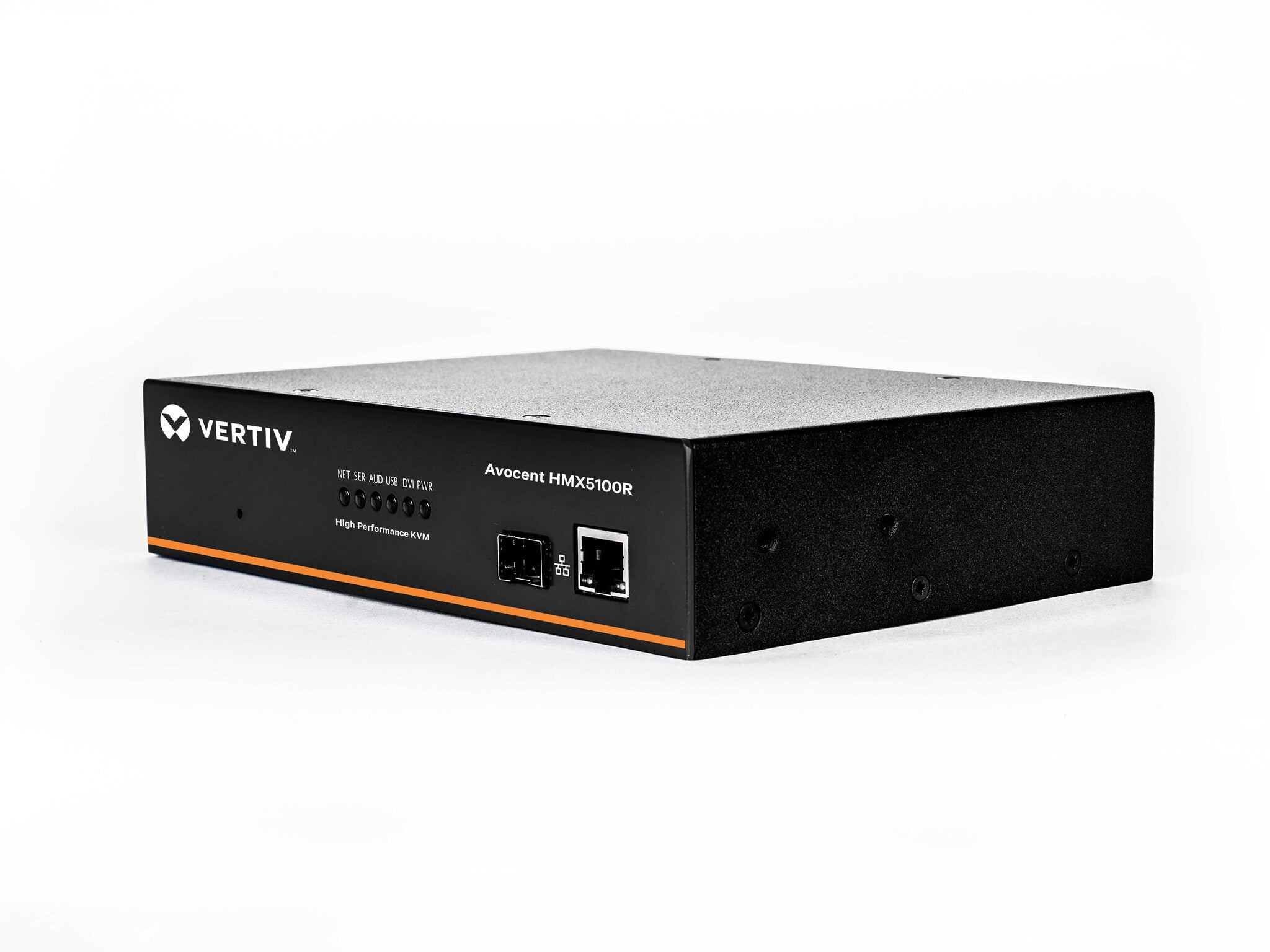

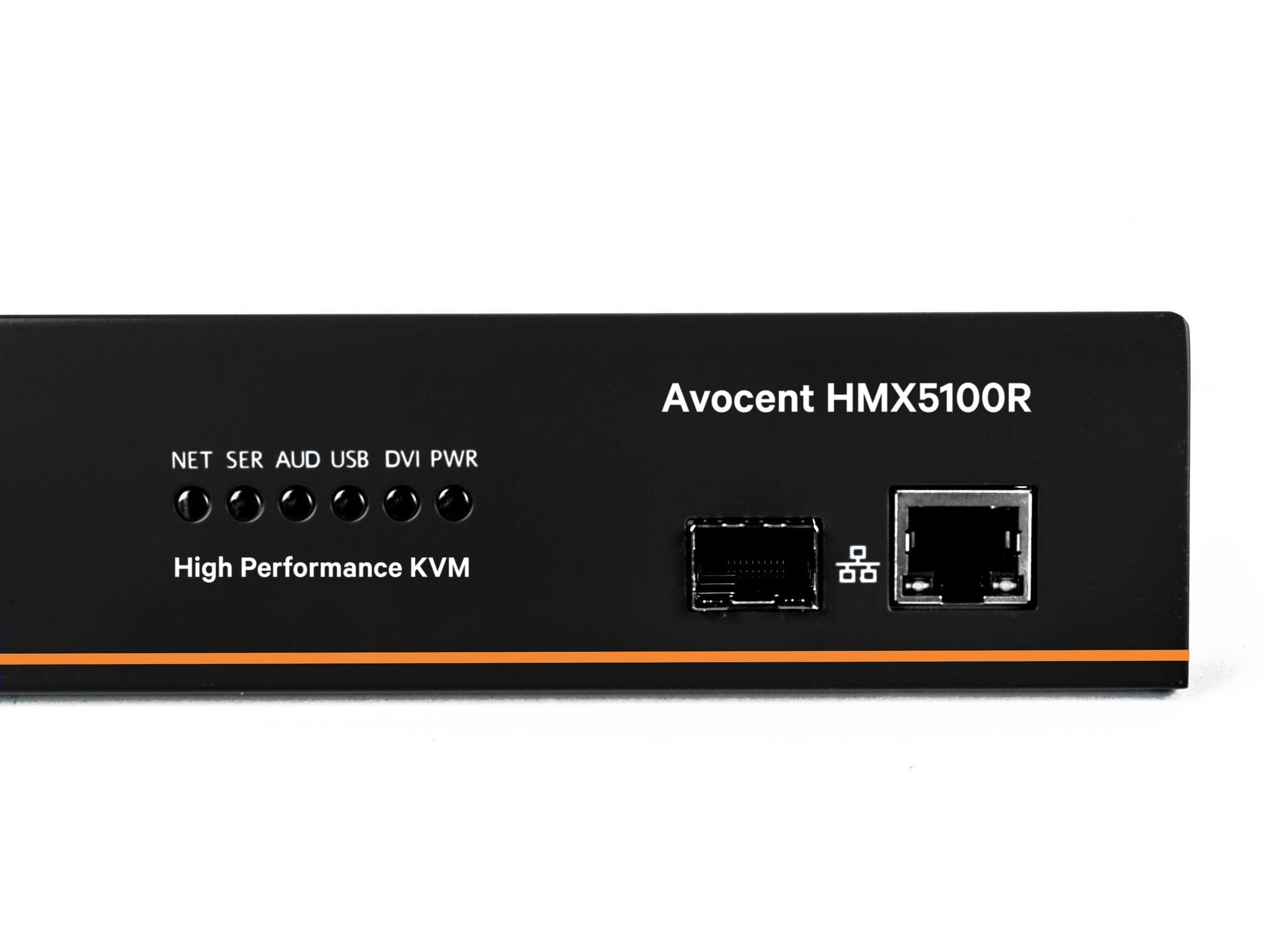

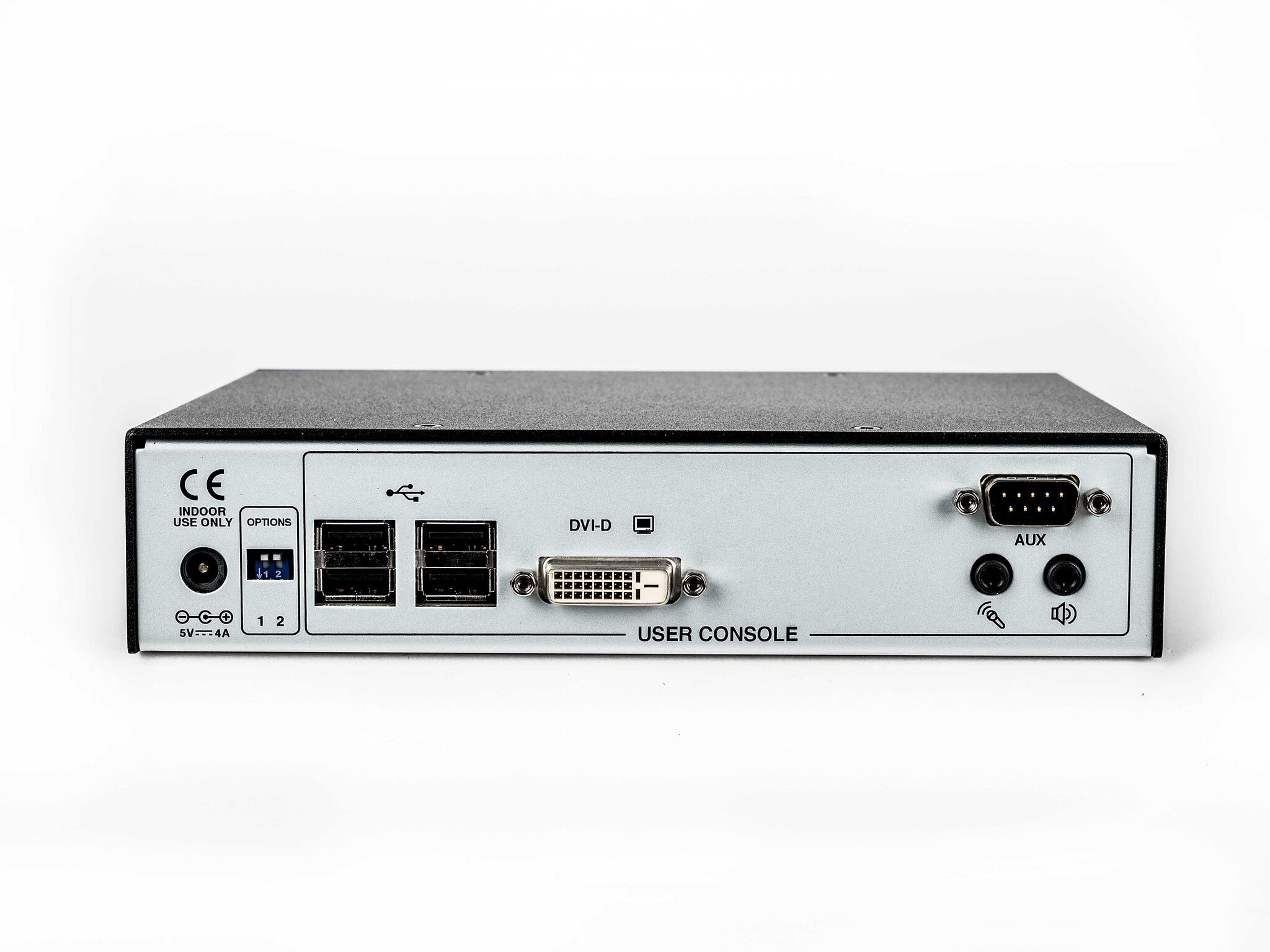

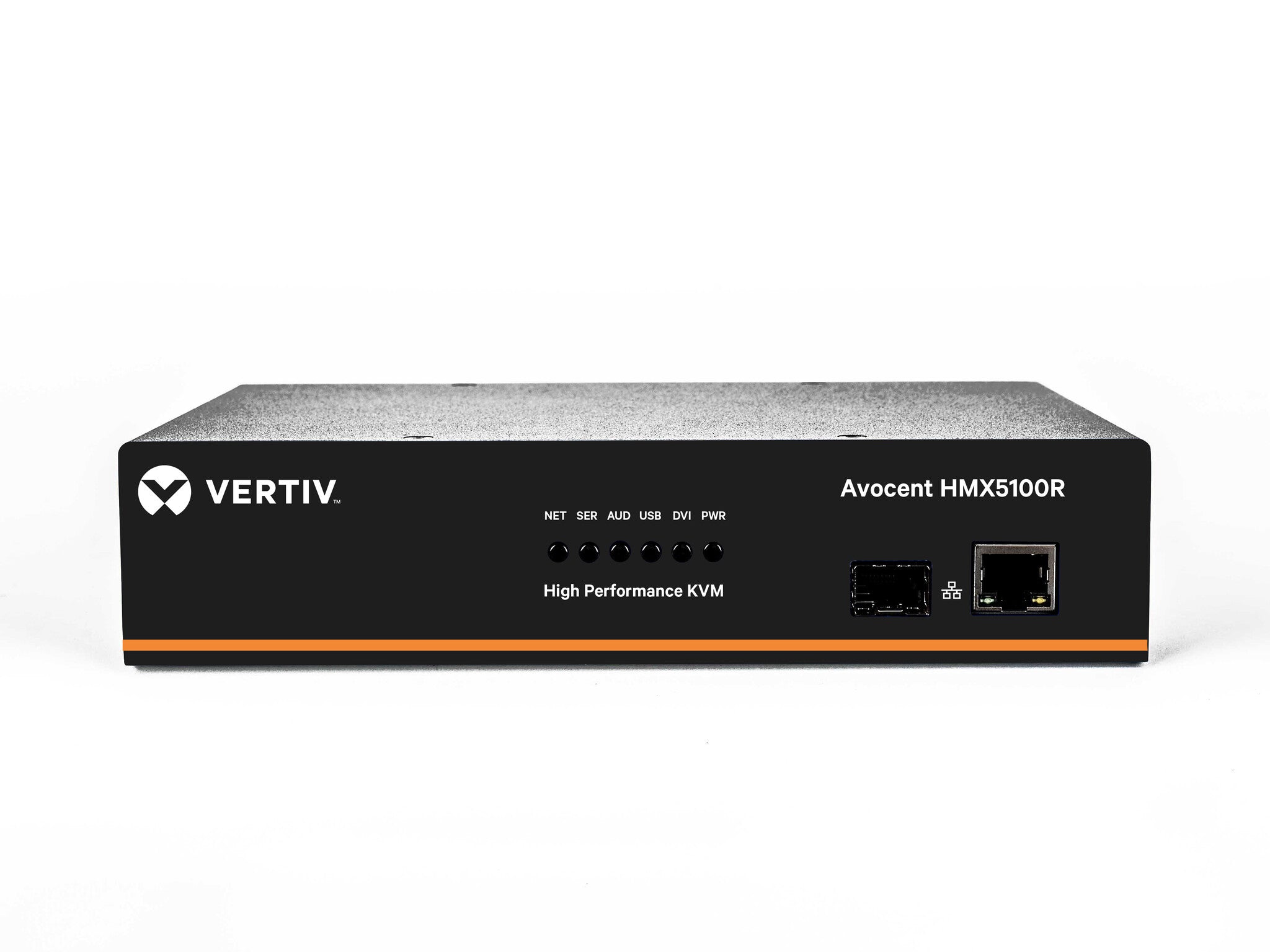

Vertiv Avocent HMX5100R KVM switch Rack mounting Blue
£1,262.99
Couldn't load pickup availability
- Single-Head DVI-D Interface - Supports resolutions to a maximum of 1920x1200 / 1080p
- Digital KVM extension with USB, audio and serial
- Extend over LAN or point-to-point over UTP
- Optional Fiber connectivity using SFP Modules
Avocent HMX 5100R High Performance KVM System\nThe Avocent HMX 5000 Series is a high performance KVM (Keyboard, Video and Mouse) extender that forms part of the matrix Solution. This enables you to locate your critical computing hardware in a secure and temperature controlled environment away from the user work station, while maintaining a pixel perfect desktop experience.
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Number of microphone inputs | 1 |
| Headphone outputs | 1 |
| Audio connections | Yes |
| Serial ports quantity | 1 |
| Serial port type | DE-9 (DB-9) |
| USB connector type | USB Type-A |
| USB 2.0 ports quantity | 4 |
| USB 2.0 Type-A hub ports quantity | 4 |
| USB hub | Yes |
| DVI-D ports quantity | 1 |
| Display connection | Yes |
| Video port type | DVI-D |
| Mouse port type | USB |
| Keyboard port type | USB |
| Number of computers controlled | 1 |
| Network | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Performance | |
|---|---|
| Firmware upgradeable | Yes |
| Number of users | 16 user(s) |
| Plug and Play | Yes |
| Video bandwidth | 60 Hz |
| Maximum resolution | 1920 x 1200 pixels |
| HD type | Full HD |
| Design | |
|---|---|
| Certification | CE, FCC, UL |
| Hot keys | Yes |
| LED indicators | Yes |
| Housing material | Metal |
| Product colour | Blue |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Display | |
|---|---|
| On Screen Display (OSD) | Yes |
| Built-in display | No |
| Power | |
|---|---|
| External power adapter | Yes |
| Compatible power plug types | EU |
| Input current | 0.8 A |
| AC input frequency | 50 - 60 Hz |
| Input voltage | 100 - 240 V |
| Power source | AC |
| General | |
|---|---|
| Product family | Avocent |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 1.1 kg |
| Height | 44 mm |
| Depth | 150 mm |
| Width | 198 mm |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Manual | Yes |
| AC adapter included | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176200 |
