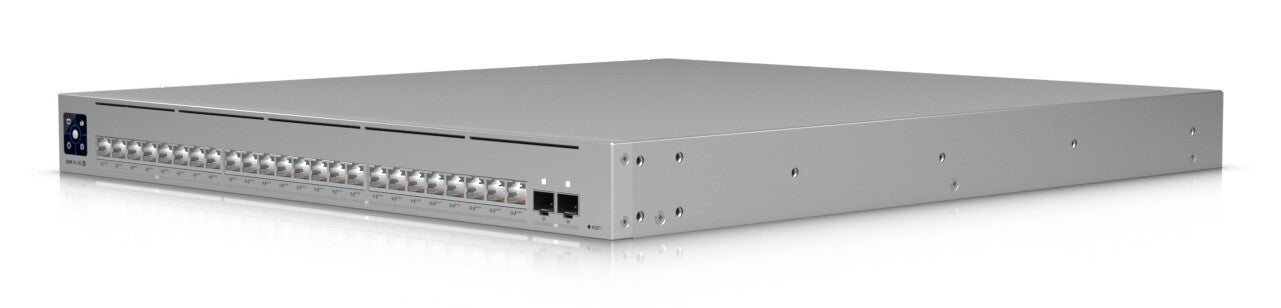

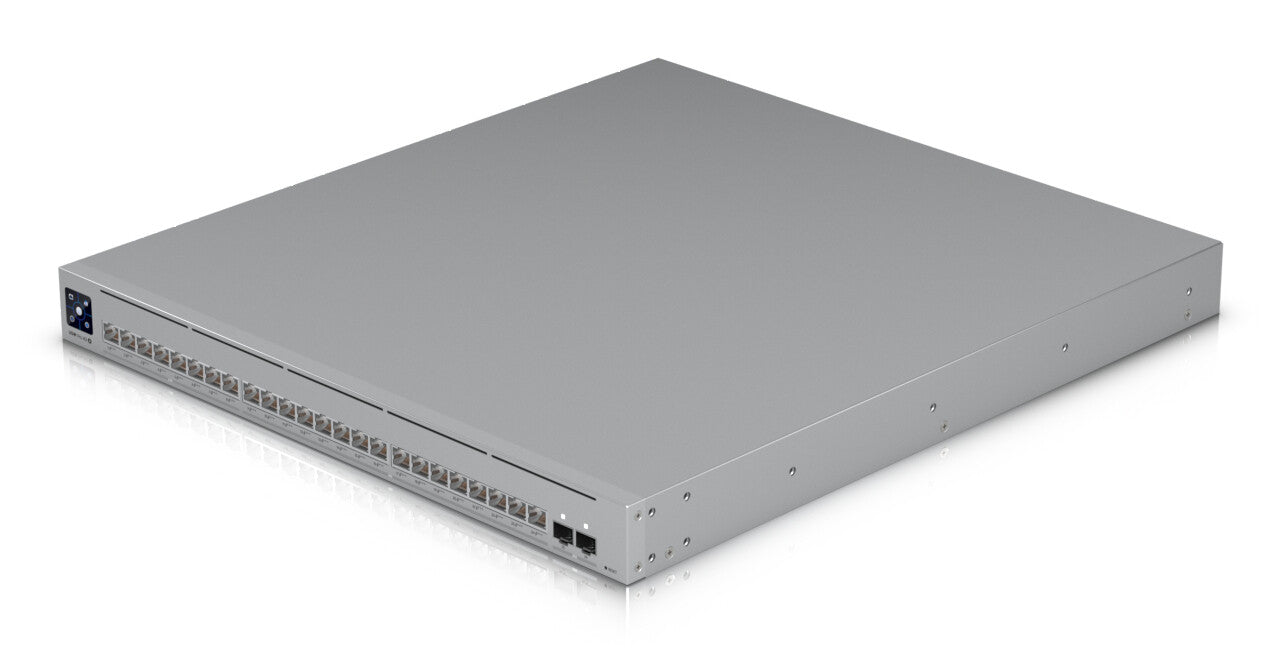

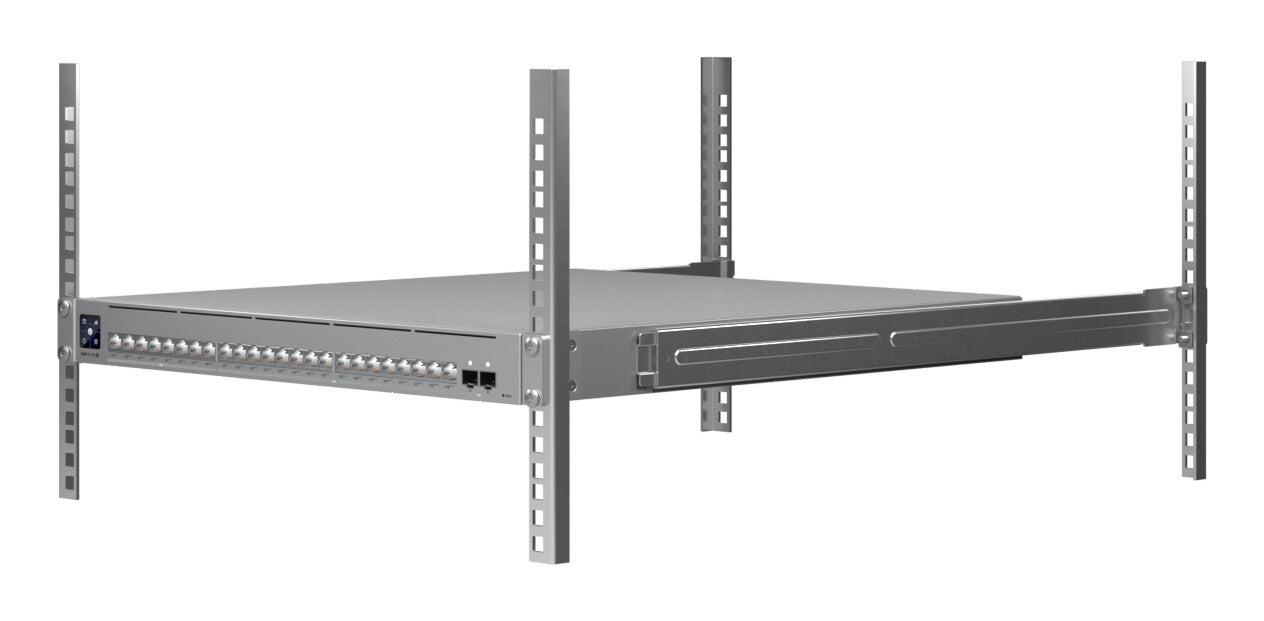

Ubiquiti UniFi Pro XG 24 PoE Managed L2/L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Grey
iFrame
£1,720.99
Couldn't load pickup availability
- Managed L2/L3
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 24
- 10G support
- MAC address table: 128000 entries Switching capacity: 460 Gbit/s
- 1U Rack mounting Stackable
- AC/DC Power supply included Power over Ethernet (PoE)

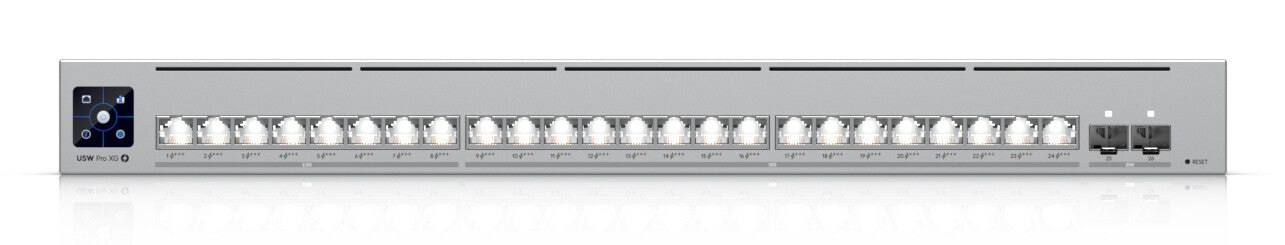

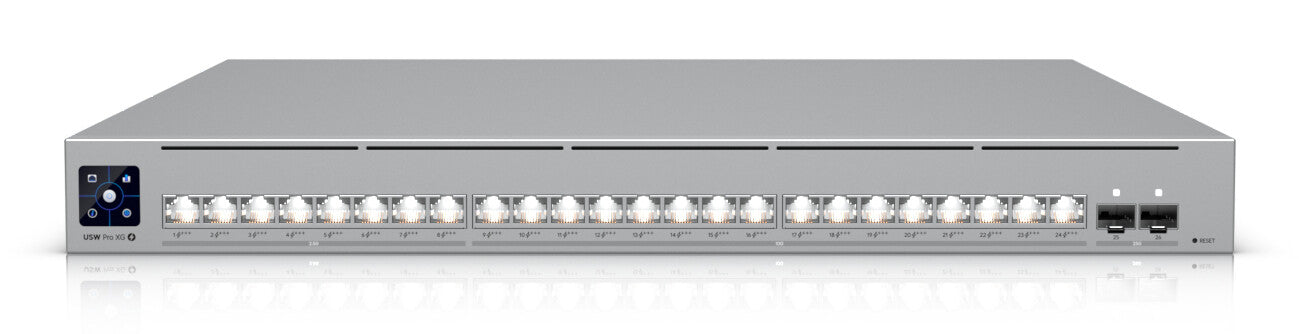

Professional-grade, 24-port Layer 3 Etherlighting™ PoE+++ switch with (16) 10 GbE, (8) 2.5 GbE, and (2) 25G SFP28 ports.
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| 2.5G Ethernet (copper) ports quantity | 8 |
| 10G Ethernet (copper) ports quantity | 16 |
| SFP28 ports quantity | 2 |
| Power connector | AC/DC |
| Network | |
|---|---|
| 10G support | Yes |
| Port mirroring | Yes |
| IPv4 routes | 256000 |
| Rate limiting | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| VLAN support | Yes |
| Virtual LAN features | Interface-based VLAN, Voice VLAN |
| Number of VLANs | 1000 |
| Data transmission | |
|---|---|
| MAC address table | 128000 entries |
| Switching capacity | 460 Gbit/s |
| Forwarding rate | 342 Mpps |
| Static route | Yes |
| Jumbo frames support | Yes |
| Packet buffer memory | 8 MB |
| Security | |
|---|---|
| DHCP features | DHCP guarding, DHCP relay, DHCP server, DHCPv6 snooping |
| Access Control List (ACL) IPv4 entries | 256 |
| IGMP snooping | Yes |
| Loop protection | Yes |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Design | |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Grey |
| Housing material | SGCC |
| Reset button | Yes |
| Backlight display | Yes |
| Display type | LCM |
| Power | |
|---|---|
| Power source | AC/DC |
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 870 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+++ |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 15.4 W |
| Total Power over Ethernet (PoE) budget | 720 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 442 mm |
| Depth | 480 mm |
| Height | 44 mm |
| Weight | 7.9 kg |

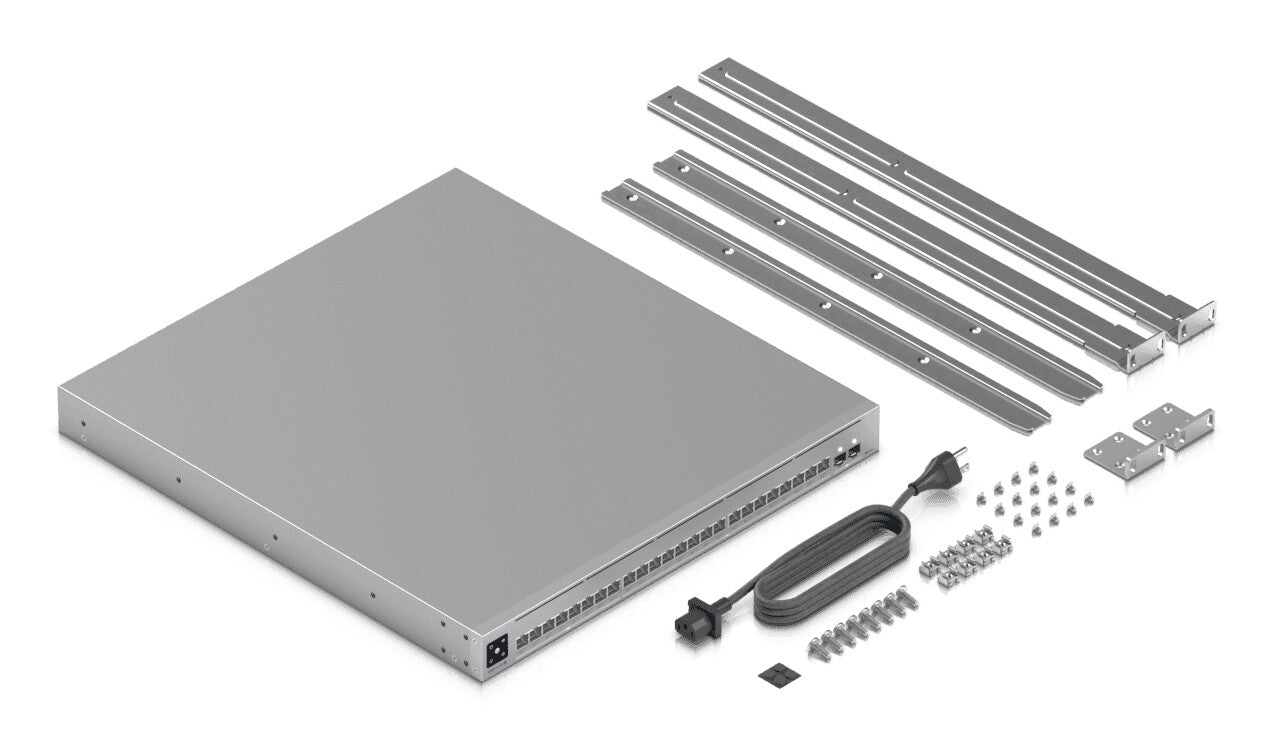

| Packaging content | |
|---|---|
| Cables included | Power |
| Rack mount kit | Yes |
| General | |
|---|---|
| Product family | UniFi |
| Certificates | |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
