Ubiquiti UniFi ECS-24S-PoE (1050W) Managed L2/L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Grey
£3,291.99
Taxes included in the price
Couldn't load pickup availability
- Managed L2/L3
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 24 Console port: RJ-45
- 10G support
- MAC address table: 32000 entries Switching capacity: 460 Gbit/s
- 1U Rack mounting
- AC Power supply included Power over Ethernet (PoE)
Enterprise-grade 24-port, Layer 3 Etherlighting™ PoE+++ switch with Stacking support and high-capacity 10 GbE RJ45 and 25G SFP28 connections for high availability system design.
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| 2.5G Ethernet (copper) ports quantity | 8 |
| 10G Ethernet (copper) ports quantity | 16 |
| Console port | RJ-45 |
| SFP28 ports quantity | 4 |
| QSFP28 ports quantity | 2 |
| Power connector | AC-in jack |
| Network | |
|---|---|
| Networking standards | IEEE 802.1x |
| 10G support | Yes |
| Port mirroring | Yes |
| IPv4 routes | 512 |
| Rate limiting | Yes |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 10,100,1000,2500,5000,10000 Mbit/s |
| Flow control support | Yes |
| VLAN support | Yes |
| Virtual LAN features | Voice VLAN |
| Number of VLANs | 1000 |
| Data transmission | |
|---|---|
| MAC address table | 32000 entries |
| Switching capacity | 460 Gbit/s |
| Forwarding rate | 342 Mpps |
| Static route | Yes |
| Jumbo frames support | Yes |
| Packet buffer memory | 8 MB |
| Security | |
|---|---|
| DHCP features | DHCP guarding, DHCP relay, DHCP snooping, DHCP server |
| Access Control List (ACL) IPv4 entries | 256 |
| IGMP snooping | Yes |
| Loop protection | Yes |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Design | |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Grey |
| Housing material | SGCC |
| Reset button | Yes |
| LED indicators | System, Link, Status |
| Redundant fans support | Yes |
| Display type | LCM |
| Number of fans | 4 fan(s) |
| Stacking | Yes |
| Power | |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 2400 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+, PoE++ (4PPoE), PoE+++ |
| Power over Ethernet (PoE+++) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 1050 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 512 BTU/h |
| Weight & dimensions | |
|---|---|
| Width | 442 mm |
| Depth | 496 mm |
| Height | 44 mm |
| Weight | 9.2 kg |
| Packaging content | |
|---|---|
| Cables included | Power |

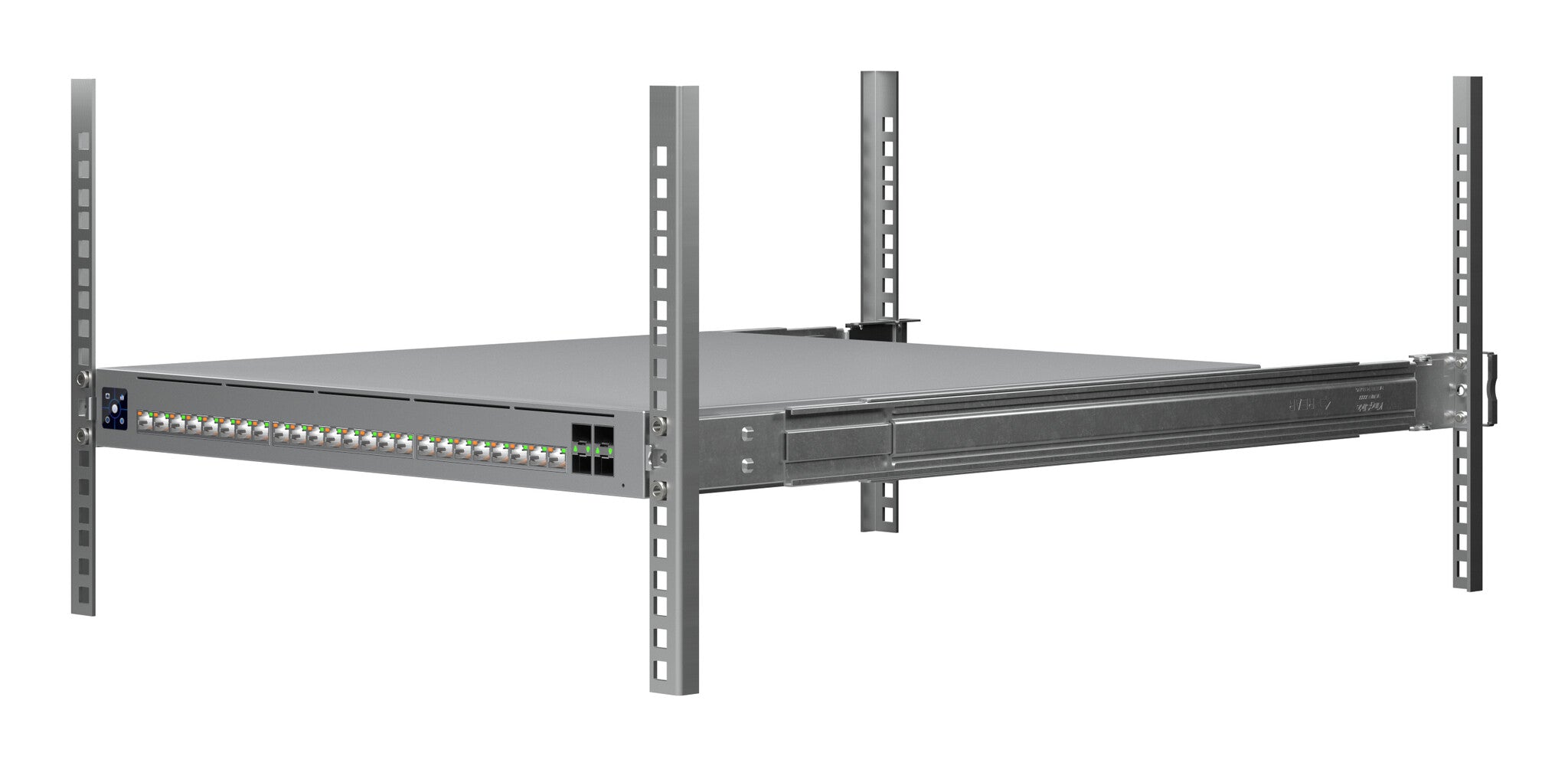

| Rack mount kit | Yes |
| Packaging data | |
|---|---|
| Rack rails | Yes |
| Mounting brackets included | Yes |
| General | |
|---|---|
| Product family | UniFi |
| Certificates | |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
