Ubiquiti UNAS Pro NAS Rack (2U) Cortex-A Cortex-A57 8 GB Grey
iFrame
£520.99
Couldn't load pickup availability
- (7) 2.5/3.5" HDD / SSD support
- (1) 10G SFP+ uplink and (1) GbE RJ45 port
- Data protection with RAID storage technology
- UniFi Power Backup ready
- 1.3" touchscreen for management

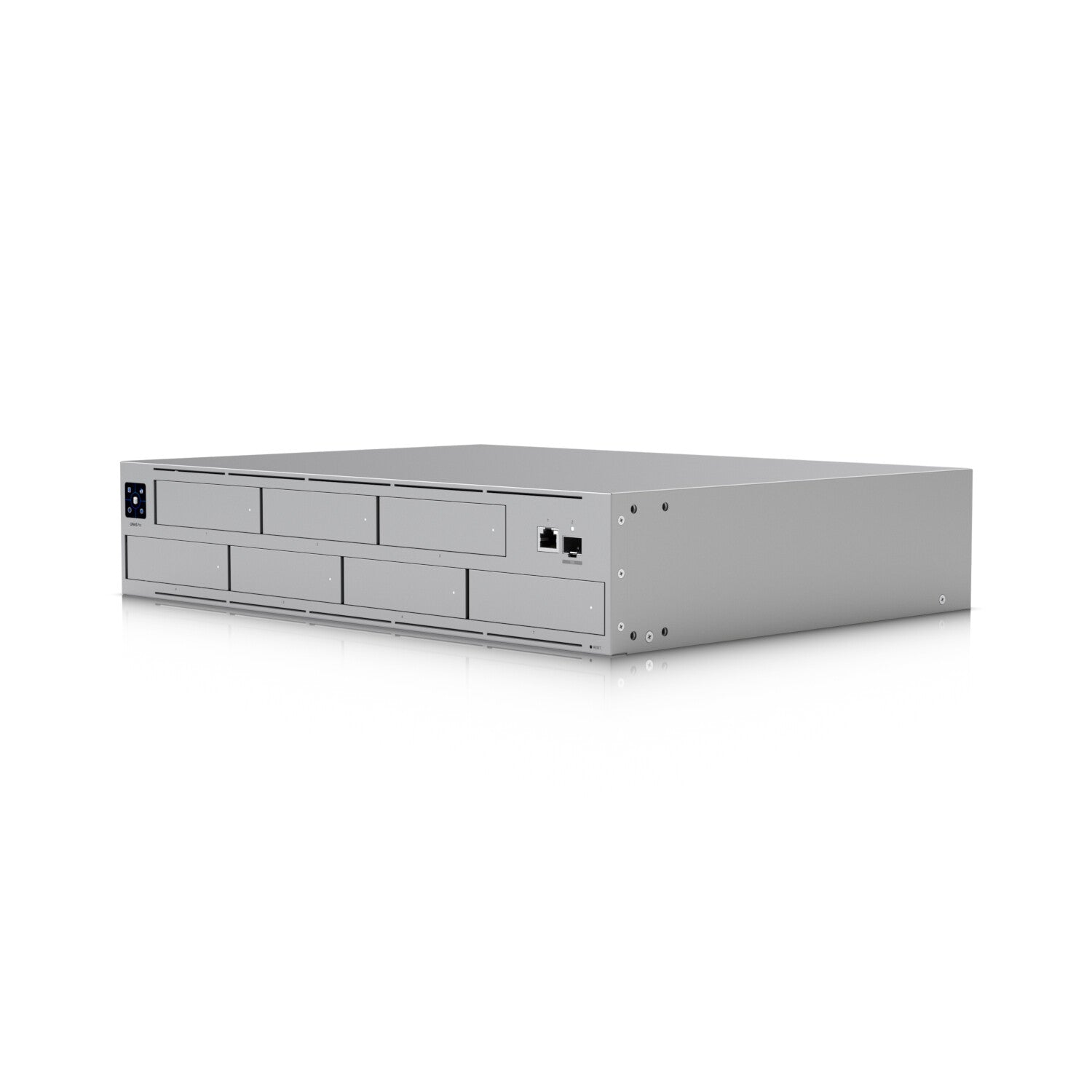

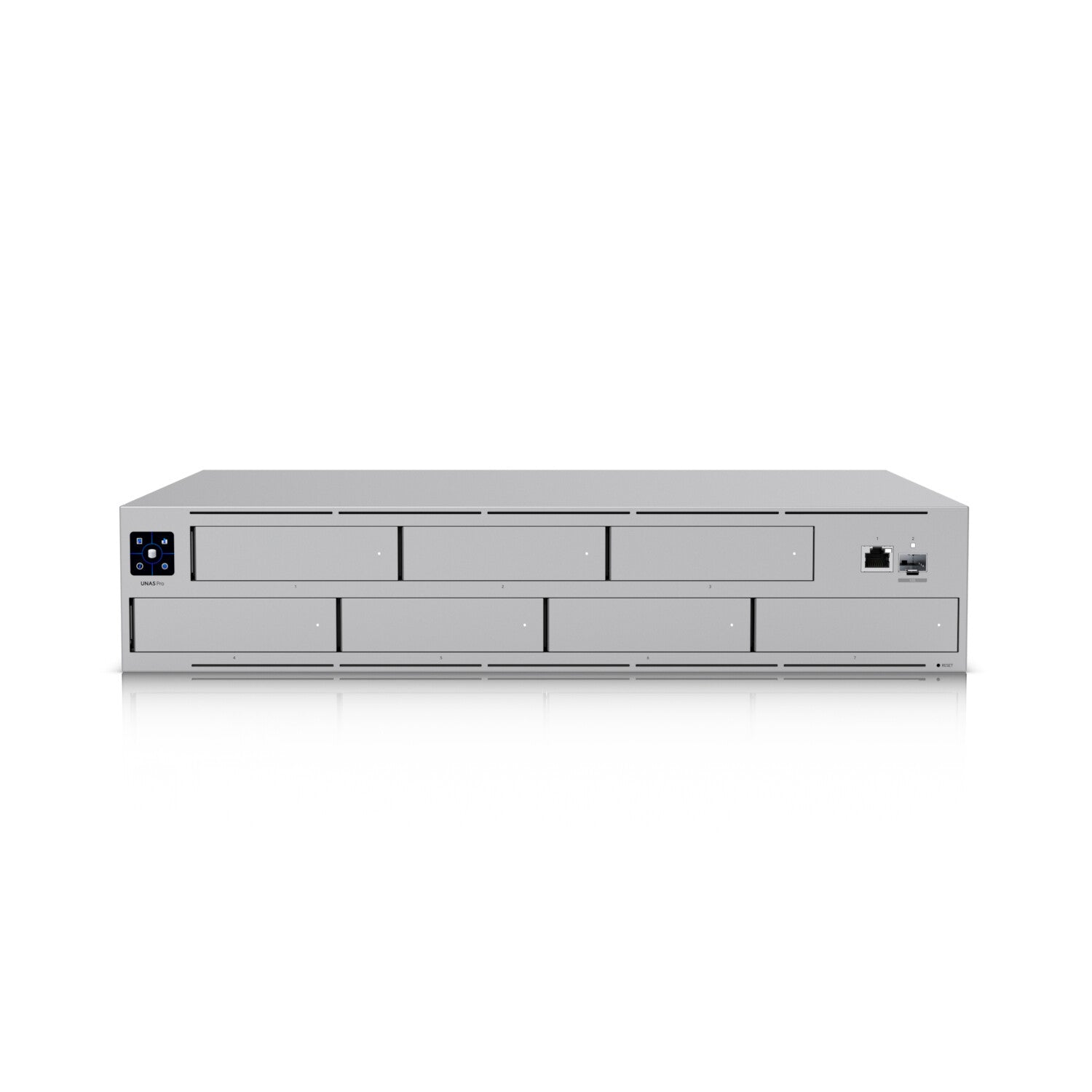

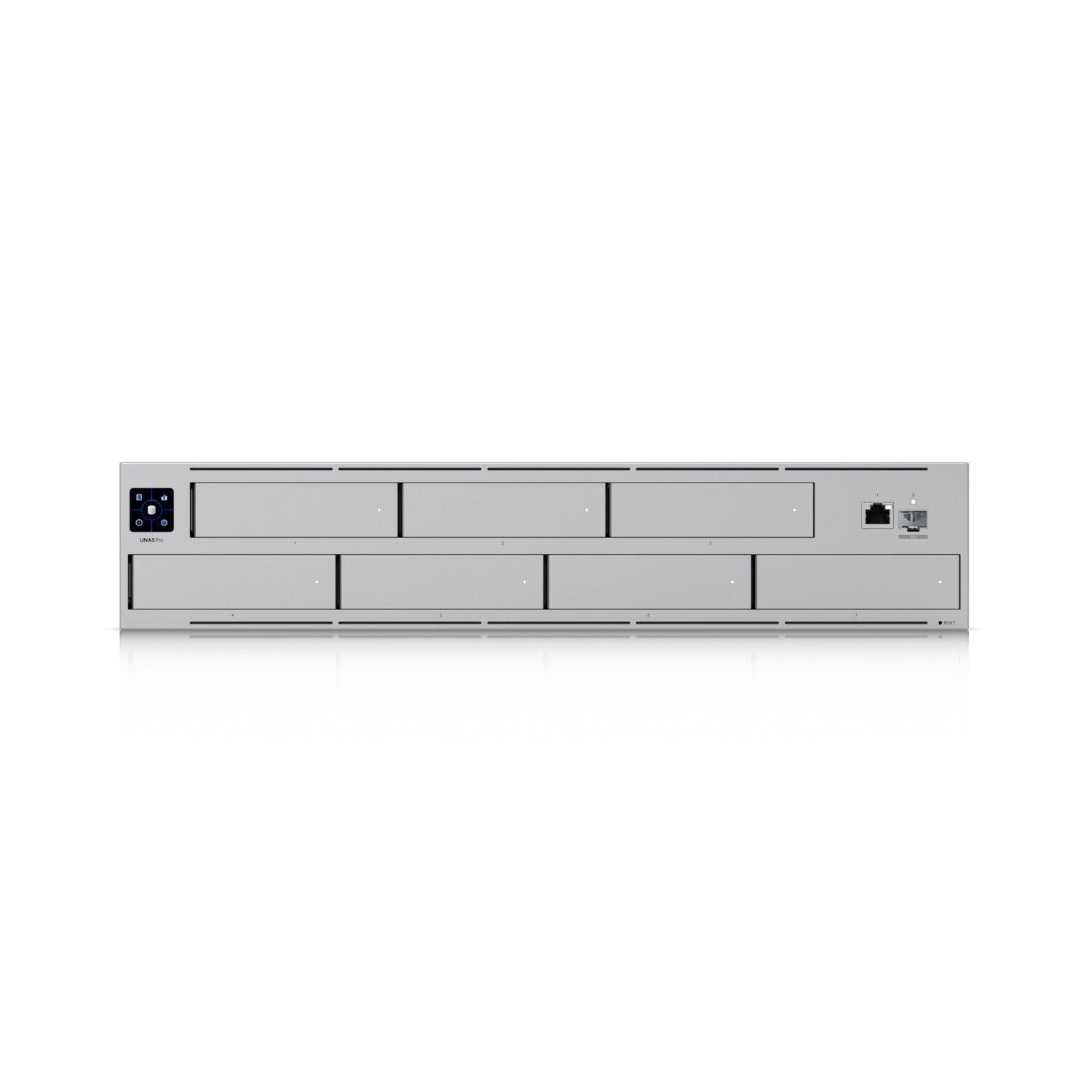

2U rack-mount NAS with (7) 2.5/3.5" drive bays and 10 Gbps performance designed for large-scale file storage and sharing.
| Storage | |
|---|---|
| RAID support | Yes |
| Storage drive sizes supported | 2.5,3.5" |
| Supported storage drive types | HDD & SSD |
| Installed storage drive type | No |
| Number of storage drives supported | 7 |
| Storage drives installed | No |
| Processor | |
|---|---|
| Processor architecture | ARM Cortex-A57 |
| Processor cores | 4 |
| Processor frequency | 1.7 GHz |
| Processor model | Cortex-A57 |
| Processor family | Cortex-A |
| Processor manufacturer | ARM |
| Memory | |
|---|---|
| Internal memory | 8 GB |
| Network | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| Fiber optic connector | SFP+ |
| Fiber ports quantity | 1 |
| USB port | No |
| Ethernet LAN (RJ-45) ports | 1 |
| Design | |
|---|---|
| Display type | LCM |
| Built-in display | Yes |
| LED indicators | Status |

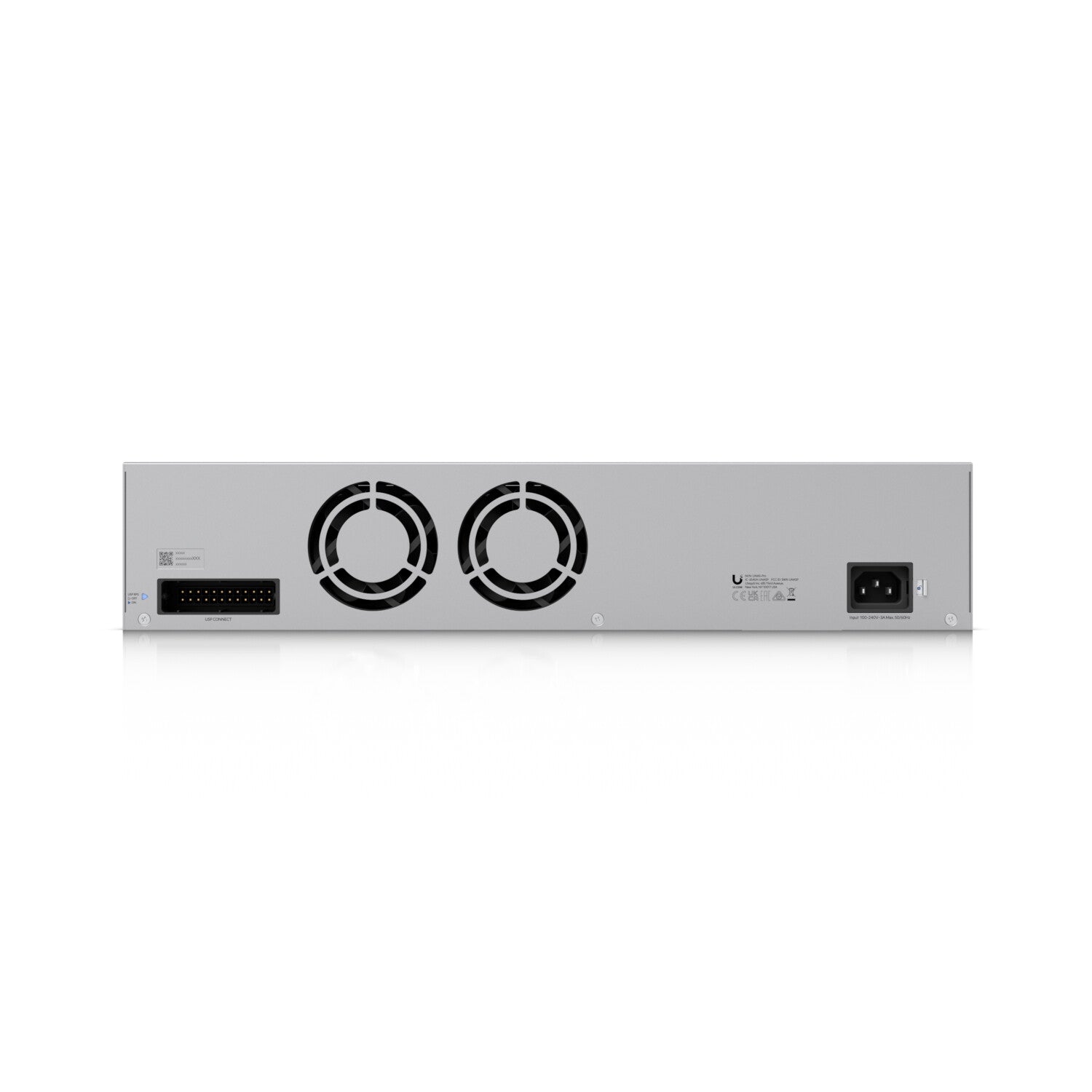

| Number of fans | 2 fan(s) |
| Housing material | Steel |
| Product colour | Grey |
| Cooling type | Active |
| Chassis type | Rack (2U) |
| Performance | |
|---|---|
| Reset button | Yes |
| Backup function | Yes |
| Type | NAS |
| Power | |
|---|---|
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 160 W |
| Redundant power supply (RPS) support | Yes |
| Power supply unit (PSU) capacity | 200 W |
| Power supply location | Built-in |
| Weight & dimensions | |
|---|---|
| Weight | 9.2 kg |
| Height | 87 mm |
| Depth | 325 mm |
| Width | 442 mm |
| Packaging content | |
|---|---|

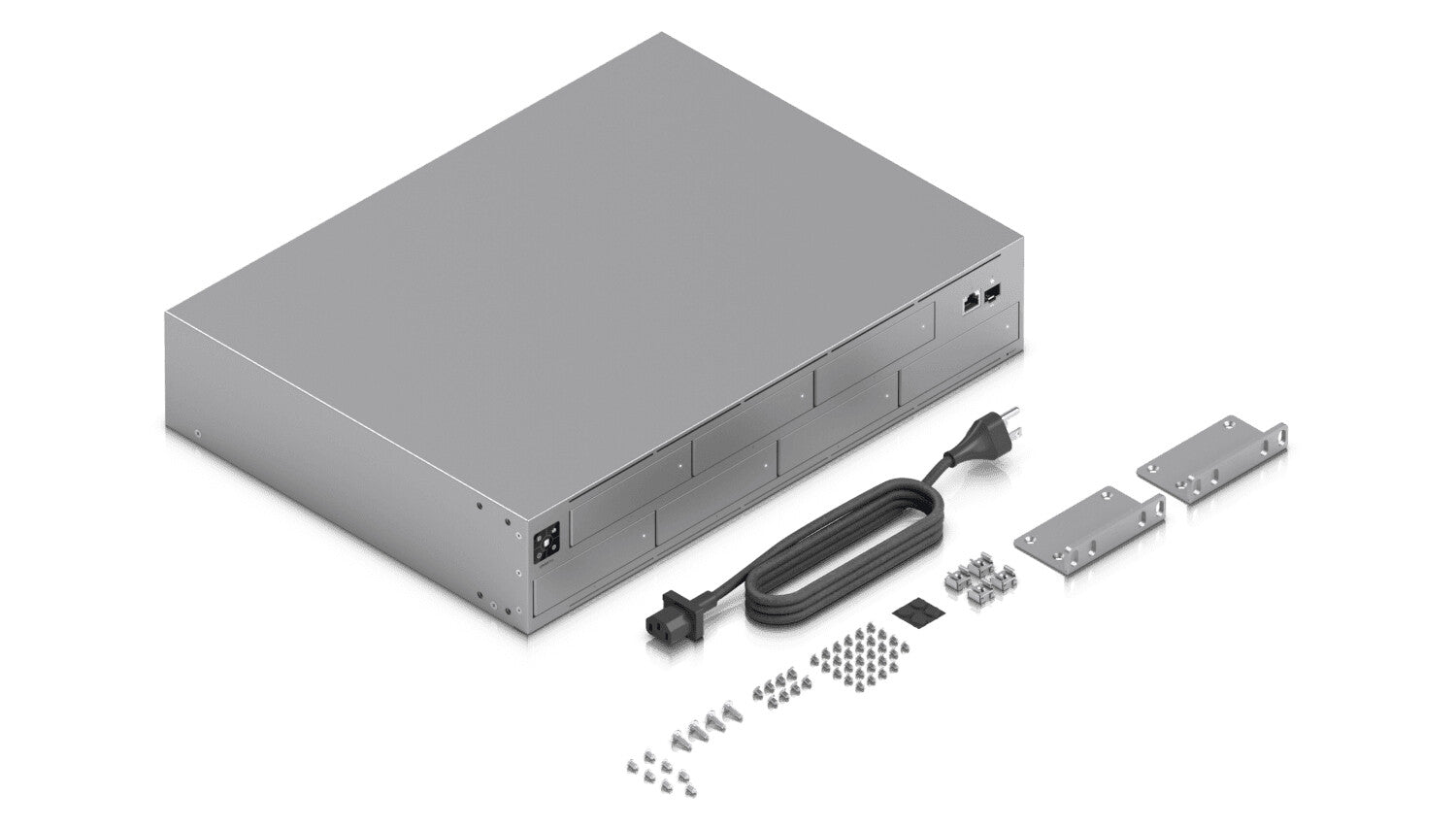

| Rack mount kit | Yes |
| Cables included | Power |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -5 - 40 °C |
| Other features | |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
