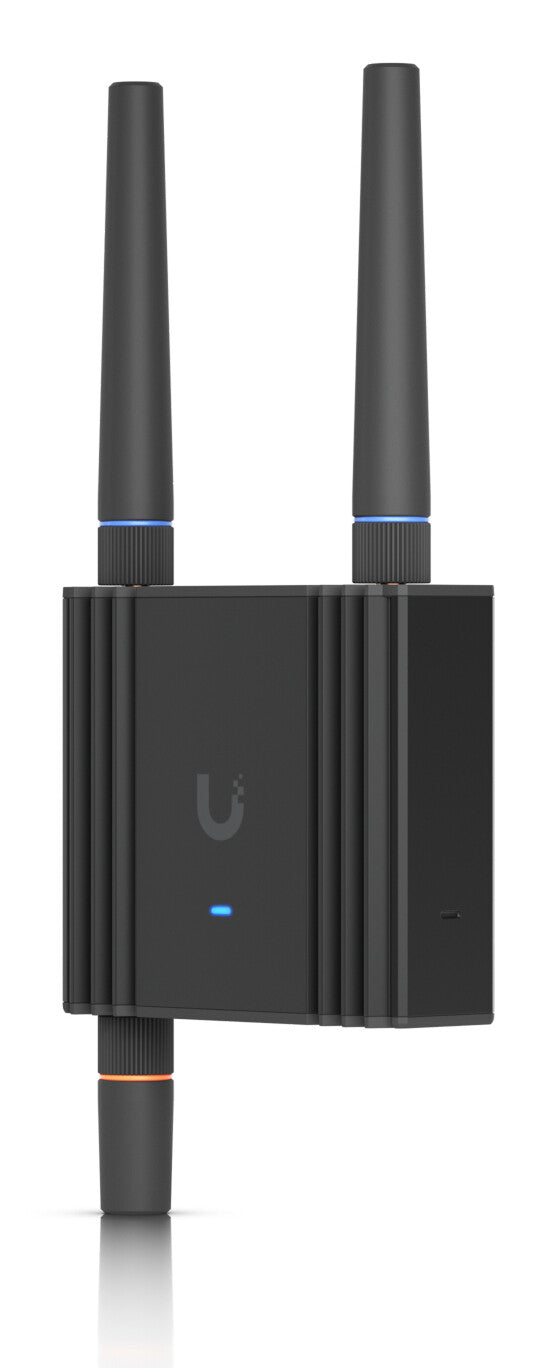

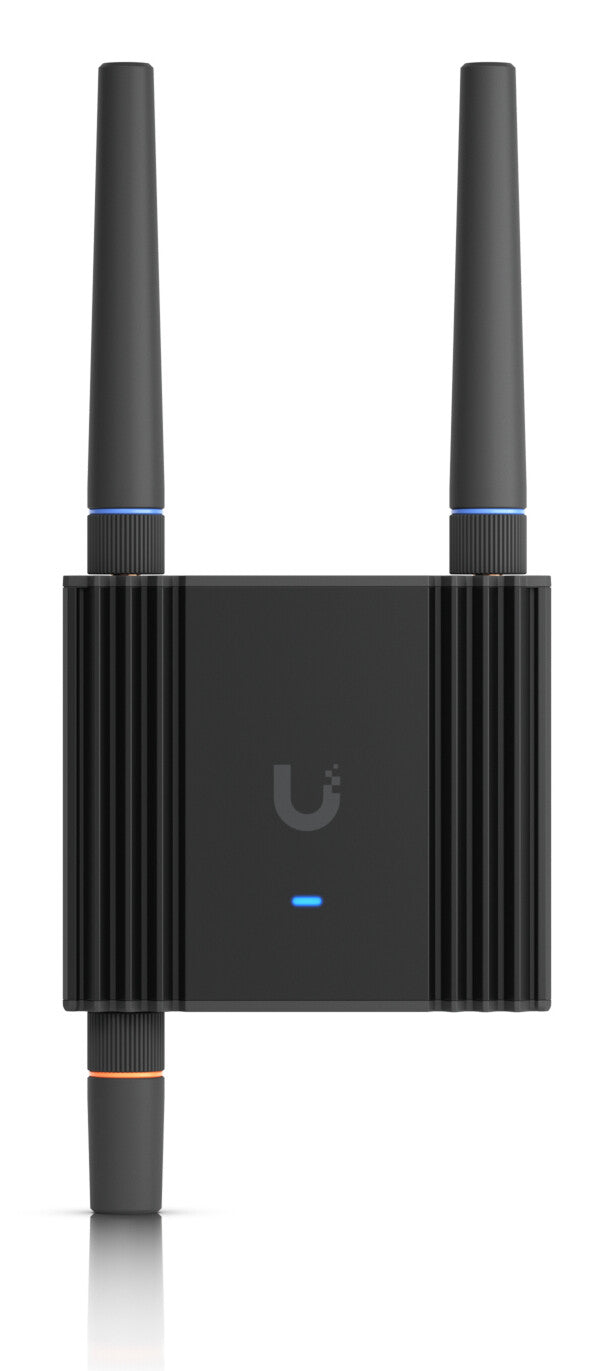

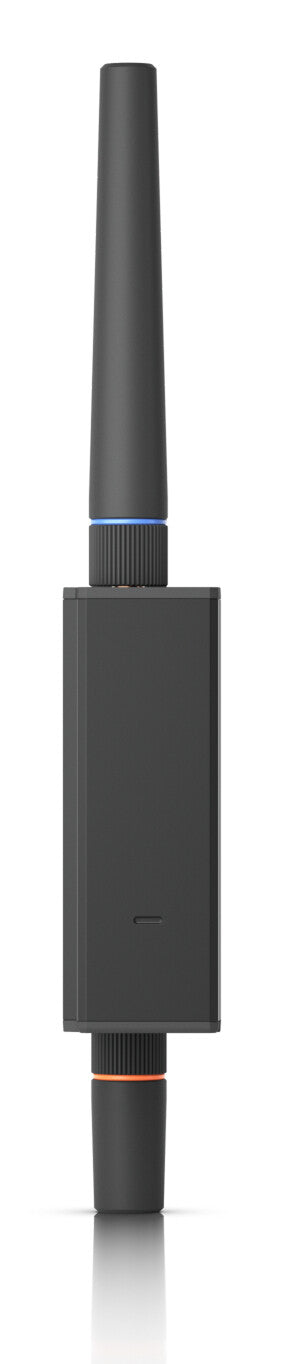

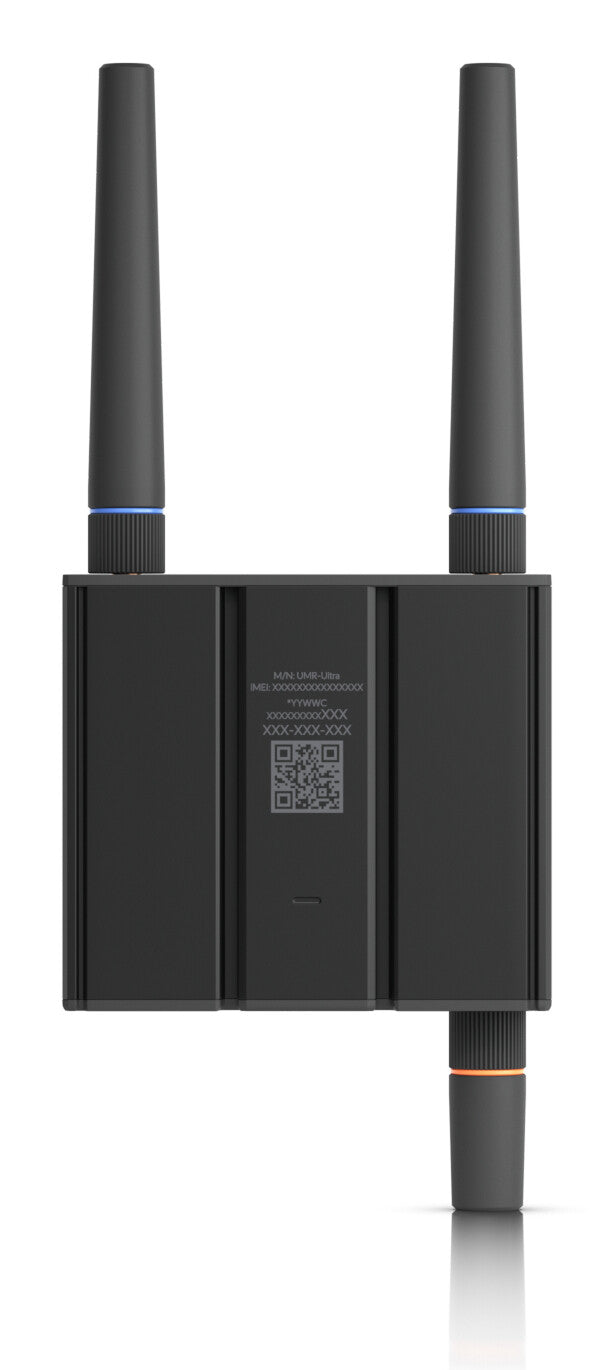

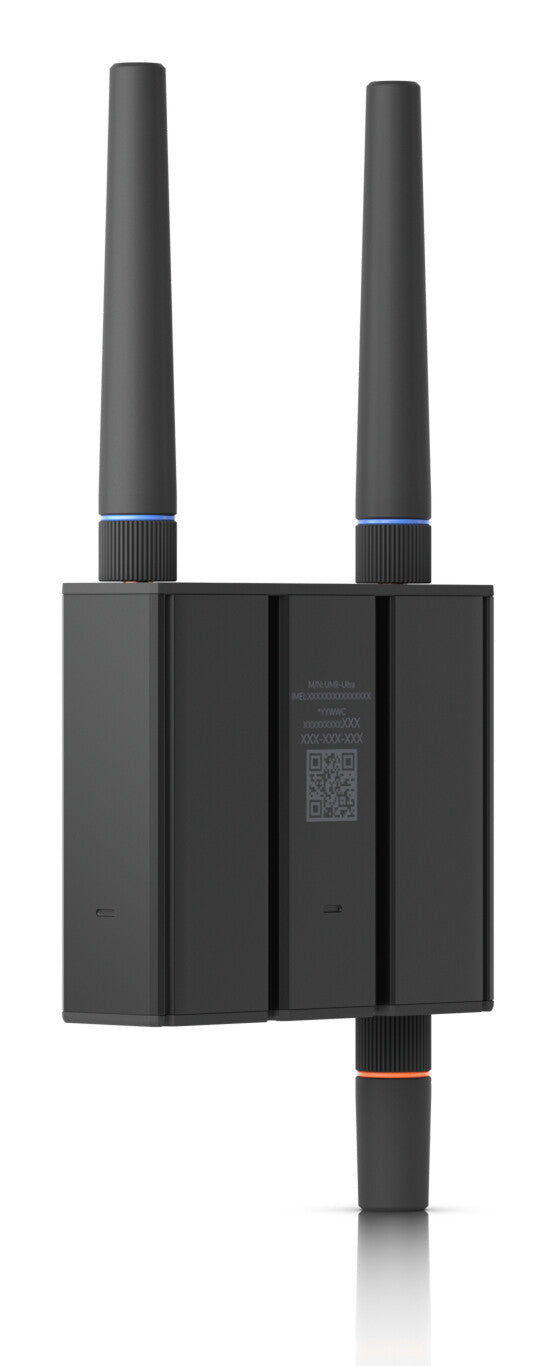

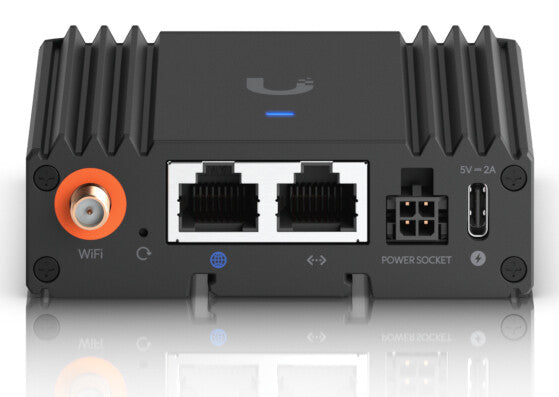

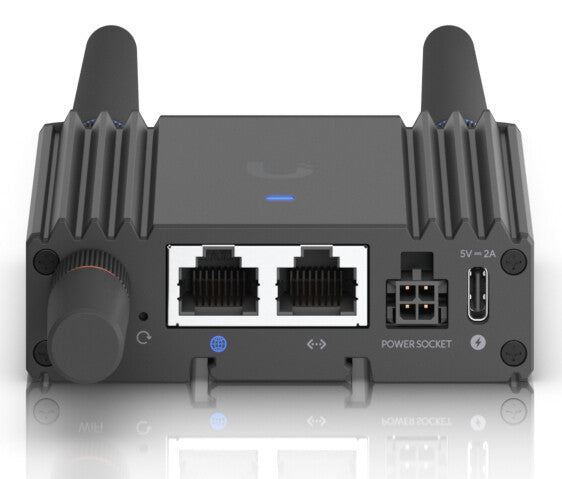

Ubiquiti UMR-Ultra Cellular network router
iFrame
£95.99
Couldn't load pickup availability
- Site-to-site VPN and VPN client routing
- (2) FE RJ45 ports
- Automatic failover among LTE, wired WAN and WiFi
- Powered using USB Type-C or 4-pin DC power socket

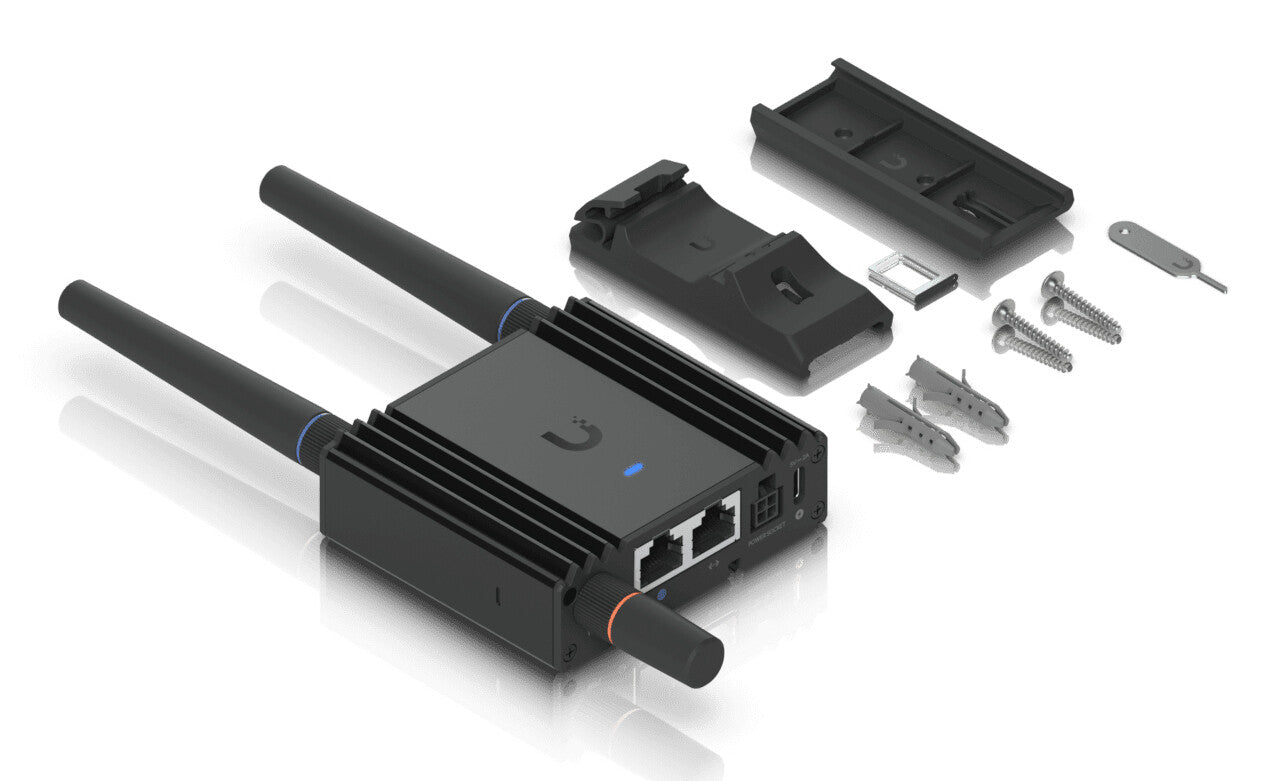

- Wall and DIN rail mount options
- Optional Mobility Cloud Subscription
- WiFi 4 single chain 2.4 GHz radio
Ultra-compact managed LTE mobile router for IoT applications with integrated LTE, wired WAN, WiFi, automatic failover, and DC power input support.
| Design | |
|---|---|
| Device type | Cellular network router |
| Product colour | Black |
| Housing material | Aluminium, Polycarbonate (PC) |
| Mounting | DIN-rail/Wall mounting |
| Reset button | Yes |
| LED indicators | Status |
| Ethernet LAN features | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Wireless LAN features | |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| WLAN data transfer rates supported | 1,2,5.5,6,9,11,12,18,24,36,48,54,150,6.5 Mbit/s |
| Wi-Fi frequency | 2.4 GHz |
| Mobile network | |
|---|---|
| Data network | 4G |
| 4G standard | LTE |
| Number of SIM cards | 1 |

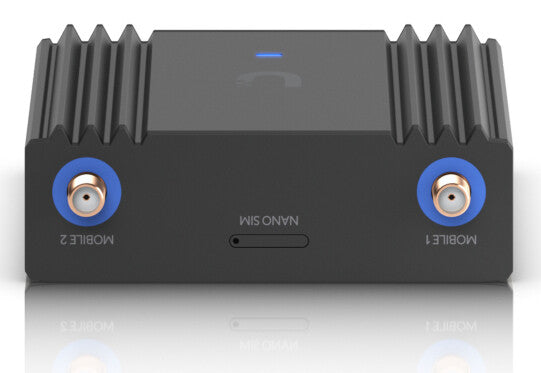

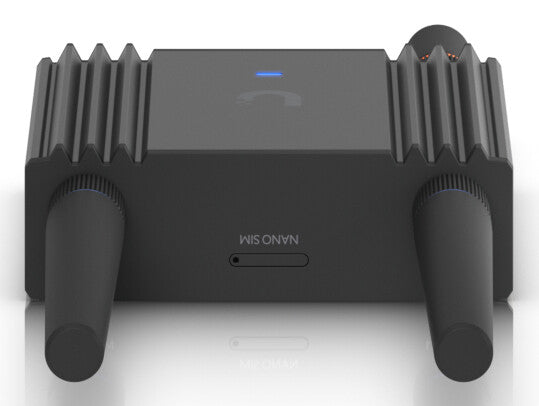

| SIM card type | NanoSIM |
| Data transfer rate (LTE) (upload) | 50 Mbit/s |
| Data transfer rate (LTE) (download) | 150 Mbit/s |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB port type | USB Type-C |
| USB port | Yes |
| Certificates | |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), PTCRB, GCF |
| Performance | |
|---|---|
| Antenna type | External |
| Antenna connector type | SMA/RP-SMA |
| Antennas quantity | 3 |
| Detachable antenna(s) | Yes |
| Power | |
|---|---|
| Power source type | DC, USB |
| Power consumption (typical) | 5.7 W |
| Input voltage | 5 - 30 V |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -30 - 70 °C |
| Weight & dimensions | |
|---|---|
| Width | 82 mm |
| Depth | 26 mm |
| Height | 193.5 mm |
| Weight | 200 g |
| Packaging data | |
|---|---|
| User guide | Yes |
