Ubiquiti UCG-Fiber (30W) gateway/controller 10, 100, 1000, 2500, 10000 Mbit/s
£258.99
Couldn't load pickup availability
- 10,100,1000,2500,10000 Mbit/s
- Control display unit Built-in processor 2200 MHz 3000 MB
- Power over Ethernet (PoE) Quality of Service (QoS) support VLAN support
- Enclosure material: Polycarbonate (PC)
- White

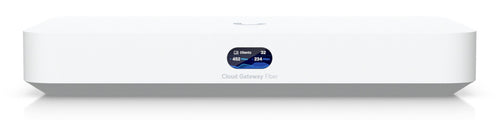

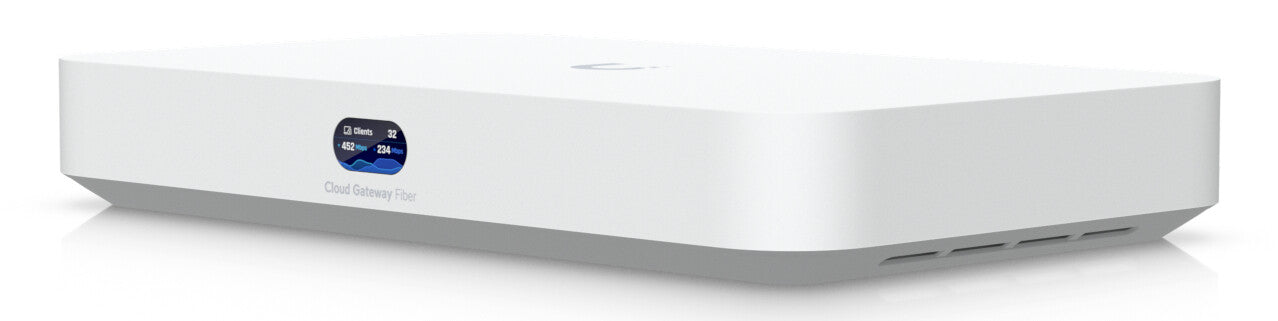

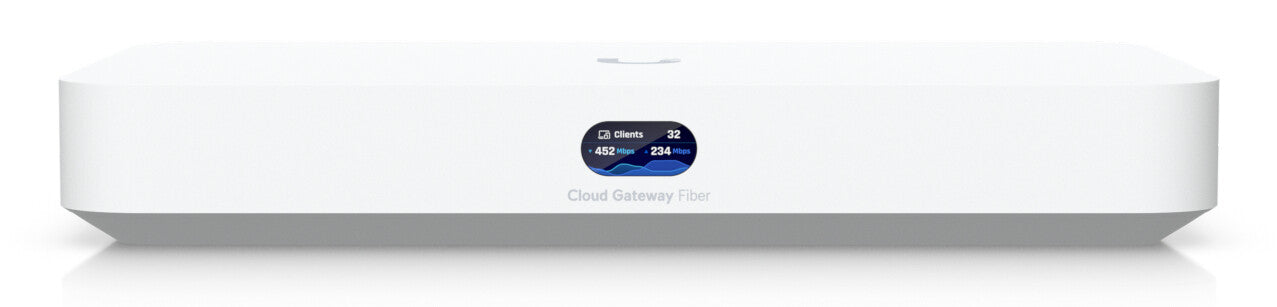

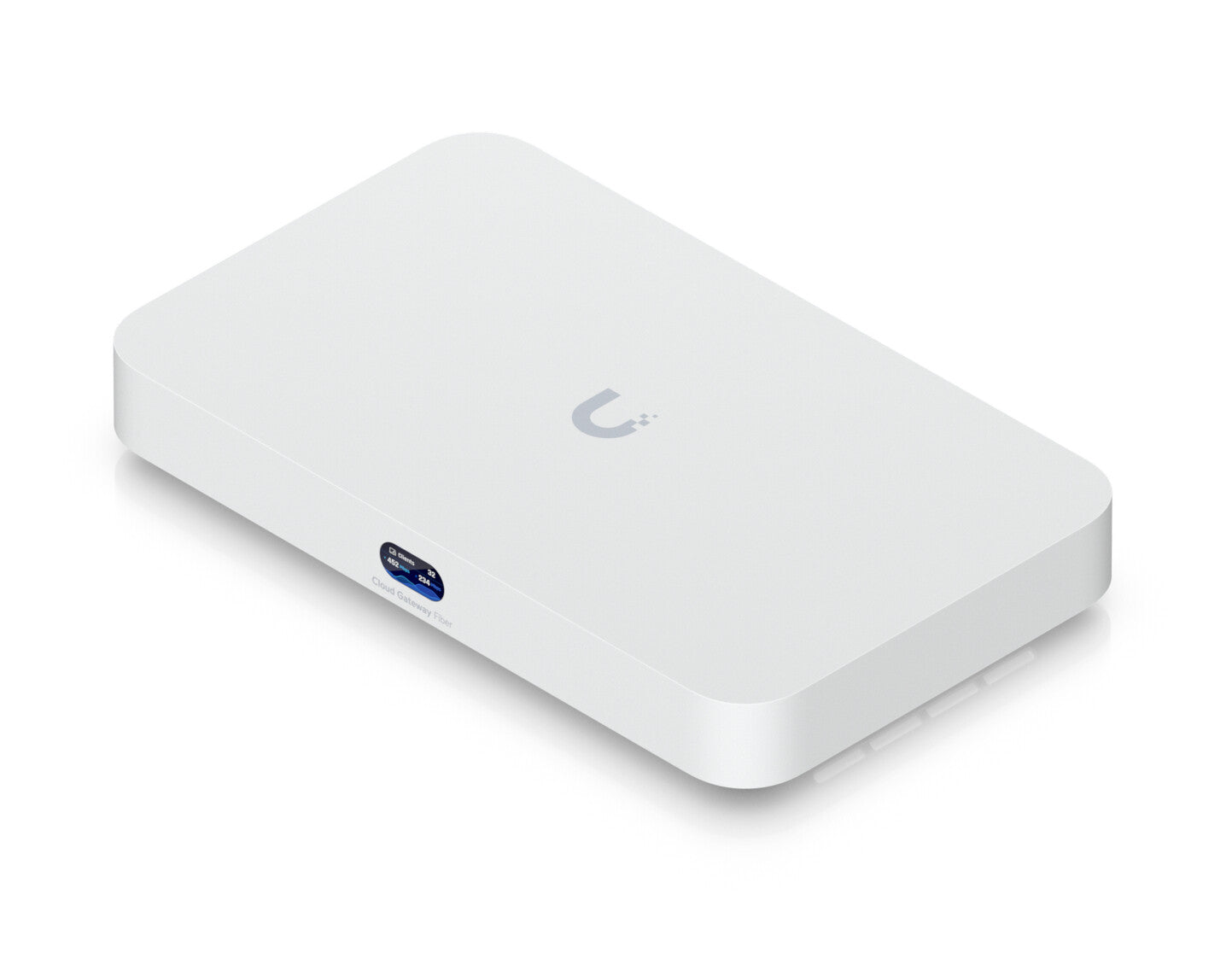

Desktop 10G Cloud Gateway with integrated 4-port 2.5 GbE switch, selectable NVR storage, and full UniFi application support.
| Design | |
|---|---|
| LED indicators | Status |
| Enclosure material | Polycarbonate (PC) |
| Product colour | White |
| Performance | |
|---|---|
| Internal memory | 3000 MB |
| Number of processors installed | 1 |
| Processor frequency | 2200 MHz |
| Processor manufacturer | ARM |
| Processor family | ARM Cortex |
| Built-in processor | Yes |
| Display type | LCM |
| Control display unit | Yes |
| Protocols | |
|---|---|
| Routing protocols | OSPF |
| Network | |
|---|---|
| Load balancing | Yes |
| Bluetooth | Yes |
| Ethernet LAN data rates | 10,100,1000,2500,10000 Mbit/s |
| Security | |
|---|---|
| Firewall security | Yes |
| VLAN support | Yes |
| Security algorithms | 802.1x RADIUS, IPSec, TLS |

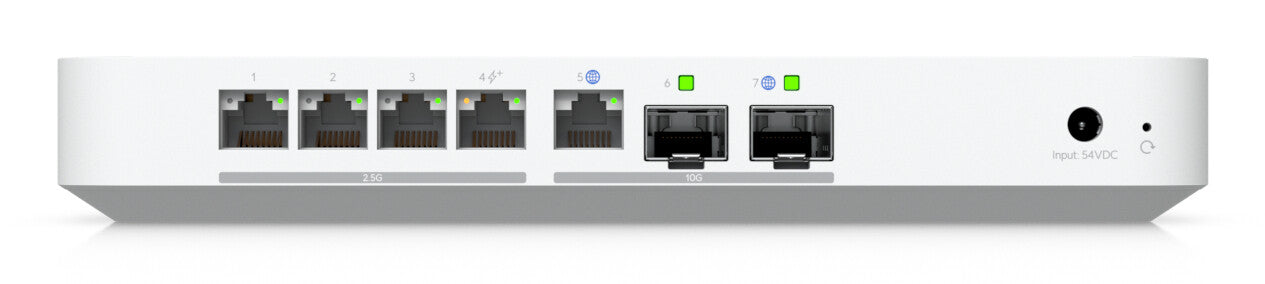

| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| SFP+ ports quantity | 2 |
| WAN connection | Ethernet (RJ-45), SFP |
| Ethernet LAN (RJ-45) ports | 4 |
| Management features | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Reset button | Yes |
| Power | |
|---|---|
| Electromagnetic (EMP) protection (contact) | 4 kV |
| Electromagnetic (EMP) protection (air) | 8 kV |
| Electromagnetic (EMP) protection | Yes |
| Power over Ethernet (PoE) | Yes |
| DC input voltage | 54 V |
| Power over Ethernet (PoE) type supported | PoE+ |
| Input current | 1.1 A |
| Input voltage | 100 - 240 V |
| Power consumption (max) | 29.4 W |
| Weight & dimensions | |
|---|---|
| Weight | 675 g |
| Width | 212.8 mm |
| Depth | 127.6 mm |
| Height | 30 mm |

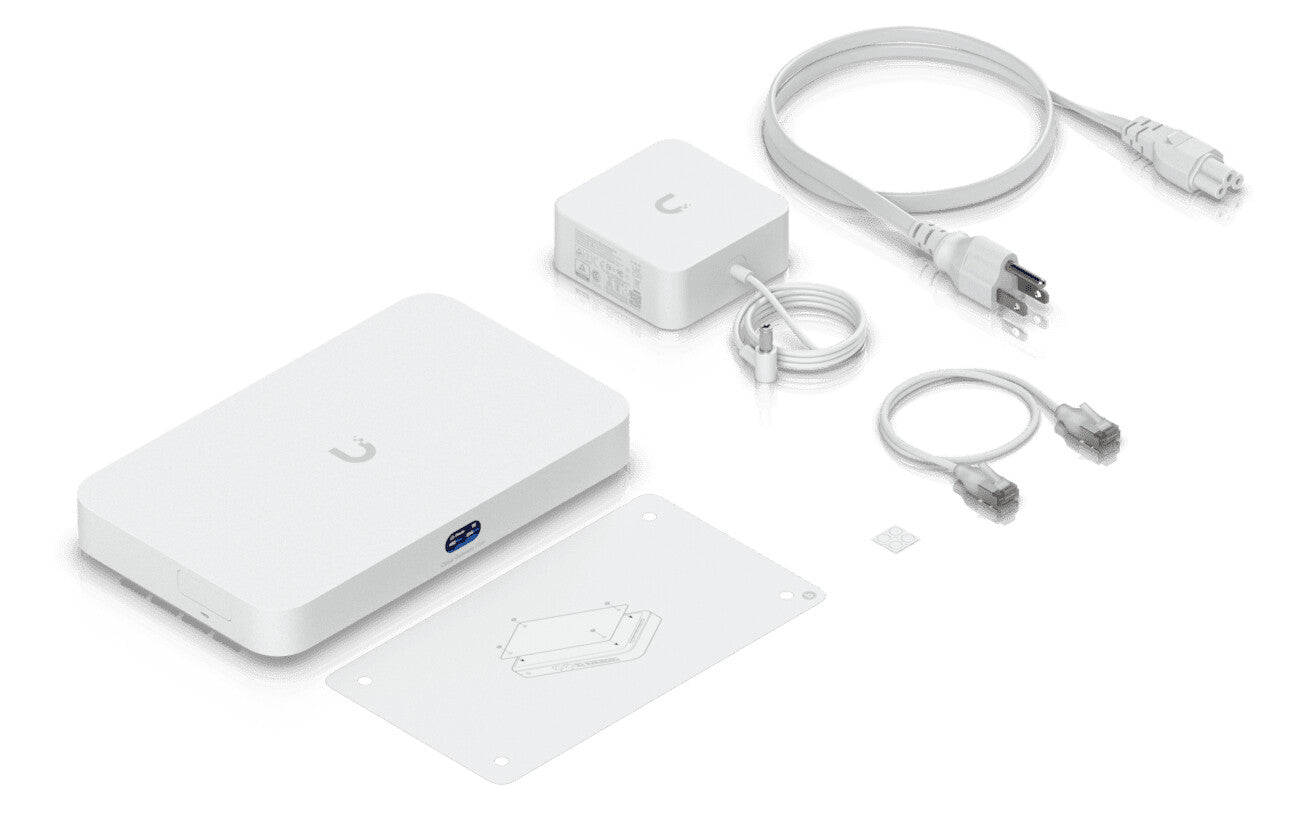

| Packaging content | |
|---|---|
| AC adapter included | Yes |
| Cables included | LAN (RJ-45), Power |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Display | |
|---|---|
| Display diagonal | 2.44 cm (0.96") |
| Certificates | |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
